With many years of experience in this feild, we are specialized in researching, developing and producing various wear resistant, gas shielded, flux cored welding wires which can be used for hardfacing all positions in different working conditions, welding efficiency is 3-5 times than welding electrode.
WODON anti wear gas shield flux cored 15kg per coil package co2 welding wire
| Model |
Spe. (mm) |
Hardness (HRC) |
Main Ingredient | Main Application and Characteristics |
| HB-YD114 | 1.6 | 50-55 |
C 0.45-1 Cr 2-3 Mn 14-18 |
high manganese steel hardfacing wire, the surface has the characteristics od the strain hardening after violent shocks, suitable for welding such as impact hammer, hammer plate parts. |
| HB-YD172 | 1.2,1.6 | ≥40 | C 0.4-0.5 Cr 1.5-2.5 Mo 1.5-2.5 | used for surfacing welding gear, mining machinery, such as wear and tear parts. |
| HB-YD165 | 1.6 | 60-65 | C≤1.0 Cr 9-15 | high hardness, wear resistance wire, suitable for abrasive wear parts of the overlaying welding repairing. |
| HB-YD212 | 1.2,1.6 | ≥50 | C 0.4-0.7 Cr 4.0-5.5 Mo 0.8-1.5 | for surfacing welding , the surface of all wear parts, such as gears, bucket, mining machinery, etc. |
| HB-YD213-G | 1.6 | 45-55 | C 0.3-0.6 Cr 1.5-2.5 Mo1.0-2.0 | for surfacing welding the wear of the surface of the part. |
| HB-YD256 | 1.6 | HB≥170 | C 0.5-1.1 Mn 10-17 | suitable to all kinds crusher, high manganese stell rail, bulldozers and other easy wear welding parts. |
| HB-YD313 | 1.6 | 45-50 | C 0.2-0.3 Cr 11-14 | used for continuous casting roller surfacing. |
| HB-YD322 | 1.6 | 55-63 | C 0.3-0.5 W 7-10 Mo 0.5-2.5 | suitalble for repairing a die and tough, and require a higher wear properties of mechanical parts. |
| HB-YD405 | 1.6 | 53-60 |
C 0.25-0.55 Cr 5.5-7.5 Mo 0.8-1.5 W 1.0-2.0 V 0.5-1.0 |
suitable for hot-rolled billet roller surfacing. |
| HB-YD430 | 1.6 | 35-40 | C 0.1-0.25 Cr 16-18 | suitable for general corrosion resistant component surfacing welding. |
| HB-YD502Mo | 1.6 | 35-45 |
C 0.1-0.25 Cr 11-16 Mo 0.5-2.5 |
suitable for valve surfacing welding. |
| HB-YD507MoA | 1.2,1.6 | 35-45 |
C≤2.0 Cr 10-15 Mo 0.5-1.5 |
suitalble for valve surfacing welding. |
| HB-YD518(A) | 1.6 | 40-50 |
C 0.08 Cr 13.1 Mo 1.15 Ni 3 |
used for continuous casting roller surfacing |
| HB-YD688 | 1.2,1.6 | 50-58 |
C 2.5-5.0 Cr 22.5-27.5 |
apply to a serious part of abrasive wear surfacing, multi-layer welding. surfacing layer thickness can be up to 50mm. |
| HB-YD788 | 1.2,1.6 | 50-60 | C 3.0-4.5 Cr 24-30 | apply to a serious part of abrasive wear surfacing, surfacing layer thickness control under 20mm. |
| HB-YD788A | 1.2,1.6 | 50-60 | C 3.0-4.5 Cr 24-30 | apply to a serious part of abrasive wear surfacing, limited to single layer welding. |
| HB-YD888 | 1.2,1.6 | 58-65 |
C 3.5-4.5 Cr 24-27.5 |
apply to a serious part of abrasive wear surfacing, multi-layer welding. surfacing layer thickness control under 10mm. |
| HB-YD995 | 1.6 | 58-65 |
C 3.0-5.0 Cr 24-28 Mo 1.0-1.5 Nb 0.5-1.5 W 0.5-1.5 V 0.5-1.0 |
suitable for wear resistant parts of high temperature hardfacing welding. |
| HB-DG7 | 1.6 | 52-60 |
C 1-3.5 Cr 6-10.5 |
suitable for welding shield machine parts. |
| D688 Welding rod | 4.0 | 50-58 |
C 2.5-5.0 Cr 22.5-27.5 |
suitable for welding by severe abrasive wear parts, surfacing layer thickness control under 20mm. |
1. Chemical Composition: High carbon high chromium
2. Hardness: HRC58-65
3. Good Performance: no clearing slag, low welding spatter, smooth surface, high welding efficiency, stable filling rate, etc.
4. welding wire without any joints.
5. Production Capacity: 8000 tons per year
6. Short Delivery Time: Generally 7 days
7. We have many experienced professionals to research and develop welding wires according to customers' specified chemical compositions.
8. We can recommend proper welding wires and provide technical solutions based on working conditions.
9. on site inspection and third party inspection are available.
10. As an ISO9001:2008 approved manufacture, our mission is to improve our management system and provide high quality products continuously.

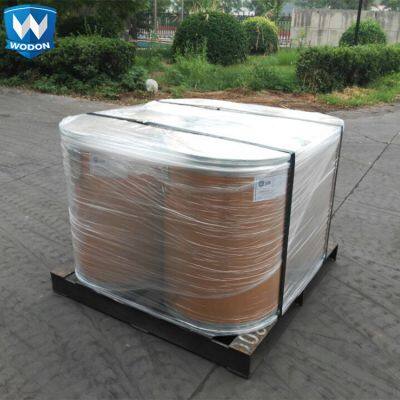

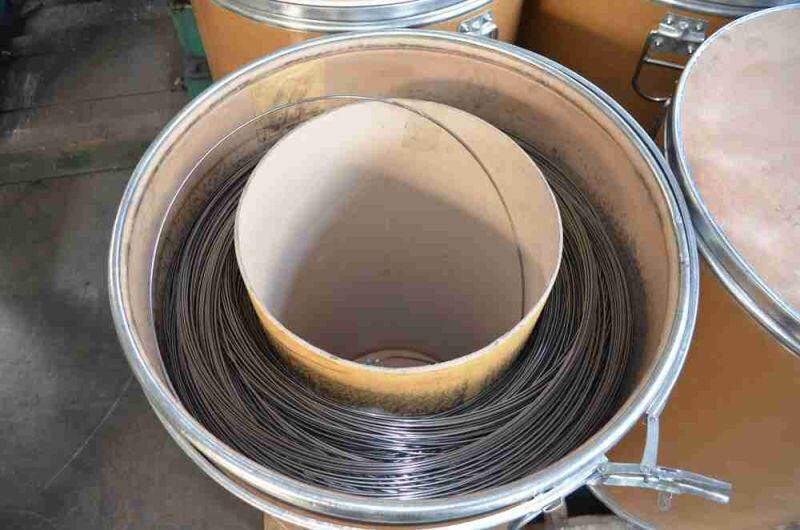

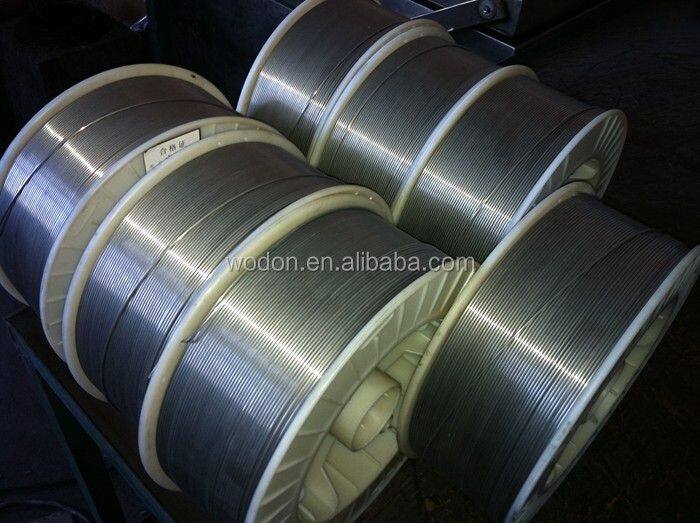

Packaging: 15 kgs/coil, Plastic spool, vacuum aluminum foil bag,carton wrapped with plastic film, pallet,Customized
Delivery Detail: Generally 7 days, it is according to quantity
Packaging
Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s problems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
