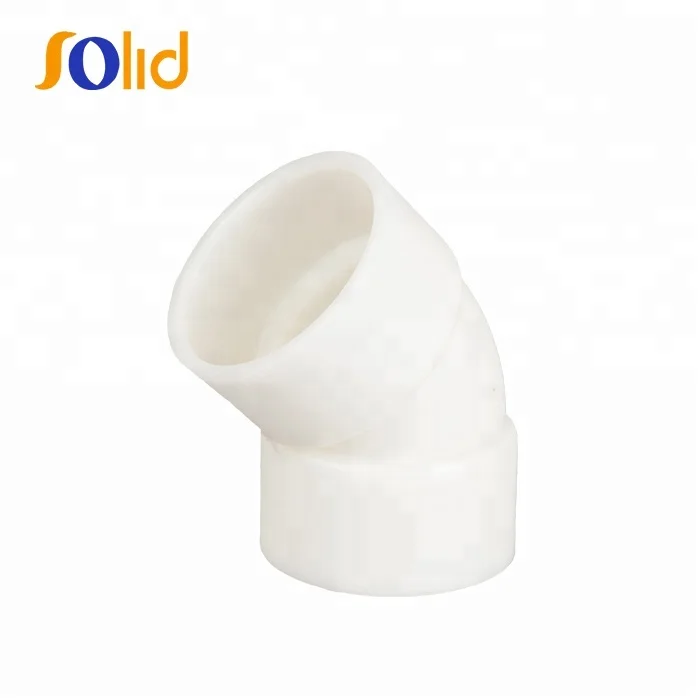

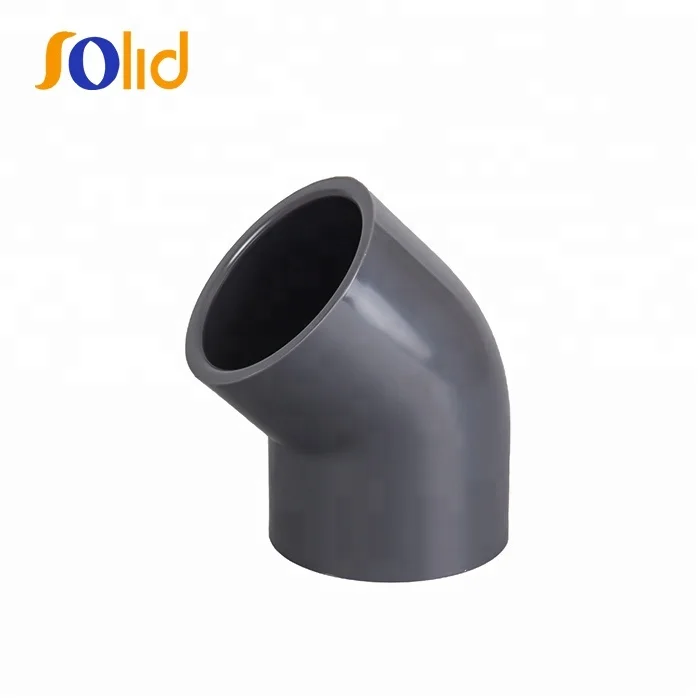

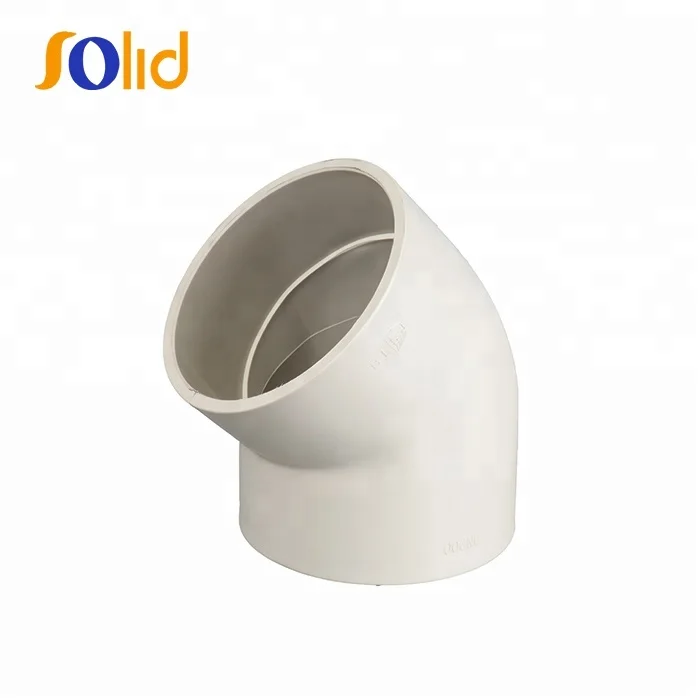

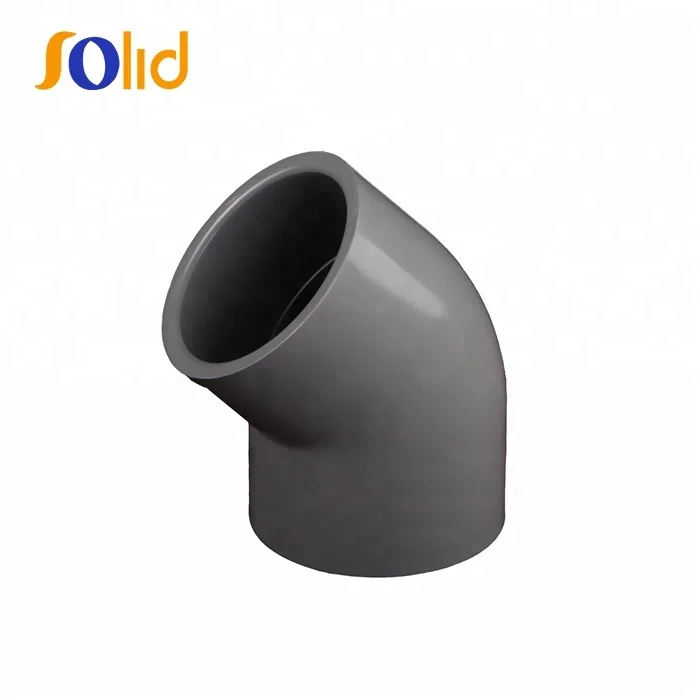

Factory Price DIN Plastic Pvc Pipe Fittings UPVC PVC 45 Degree Elbow
US$ 0.50 - 2.00
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
15 days
Related Products
-
Plastic Pipe Fitting UPVC 45 Degree PVC ElbowUS$ 0.50 - 2.00MOQ: 50 Pieces -
PVC Plastic Pipe Transition Fittings Metric Metric Reducing BushingUS$ 0.50 - 2.00MOQ: 50 Pieces
-
Plastic PVC Pipe Fitting PVC CrossUS$ 0.50 - 2.00MOQ: 50 Pieces
-
Plastic PVC 45 Degree Equal Pipe Fitting Y TeeUS$ 0.50 - 2.00MOQ: 50 Pieces
-
China Wholesale Plastic Clamp PVC Pipe Clip for Pvc PipeUS$ 0.50 - 2.00MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
UPVC Elbow for Pressure Application
1) Standard: DIN, ANSI,JIS,BS
2) Color: Can be customized
3) Size: 20mm - 400mm
4) Material: UPVC, CPVC
5) Working Pressure: PN16
6. Color Available: Grey
| SIZE | Dimension(mm) | ||||||
| DO | d1 | d2 | d | T | H | L | |
| 20 | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 22.10 | 46.90 |
| 25 | 31.80 | 25.30 | 24.95 | 23.00 | 18.70 | 25.70 | 54.90 |
| 32 | 38.60 | 32.30 | 31.90 | 0.00 | 22.20 | 30.60 | 66.20 |
| 40 | 49.70 | 40.40 | 39.90 | 38.00 | 26.20 | 36.30 | 79.30 |
| 50 | 61.90 | 50.40 | 49.90 | 48.00 | 31.20 | 43.30 | 95.70 |
| 63 | 77.50 | 63.40 | 62.90 | 61.00 | 37.70 | 52.50 | 116.90 |
| 75 | 91.20 | 75.40 | 74.90 | 70.90 | 43.70 | 64.60 | 142.50 |
| 90 | 107.60 | 90.50 | 89.90 | 85.90 | 51.20 | 75.60 | 166.90 |
| 110 | 127.00 | 110.60 | 109.90 | 103.90 | 61.20 | 89.20 | 197.60 |
| 125 | 144.30 | 125.70 | 124.90 | 118.90 | 68.70 | 100.70 | 222.90 |
| 140 | 161.60 | 140.80 | 139.90 | 133.90 | 76.20 | 112.40 | 248.90 |
| 160 | 184.60 | 160.80 | 159.90 | 153.90 | 86.20 | 126.90 | 281.90 |
| 180 | 202.60 | 180.90 | 179.90 | 178.50 | 97.00 | 137.90 | 307.00 |
| 200 | 230.50 | 201.00 | 199.90 | 193.50 | 106.20 | 157.10 | 349.50 |
| 225 | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 175.70 | 391.50 |
| 250 | 287.90 | 251.30 | 249.90 | 241.90 | 131.20 | 193.30 | 432.20 |
| 280 | 314.80 | 281.50 | 279.90 | 278.00 | 147.00 | 209.60 | 469.10 |
| 315 | 358.20 | 316.70 | 314.90 | 306.90 | 163.70 | 242.80 | 541.20 |
| 355 | 391.00 | 356.80 | 355.00 | 326.00 | 184.00 | 272.80 | 602.20 |
| 400 | 442.00 | 402.00 | 400.00 | 369.80 | 204.20 | 298.50 | 662.20 |

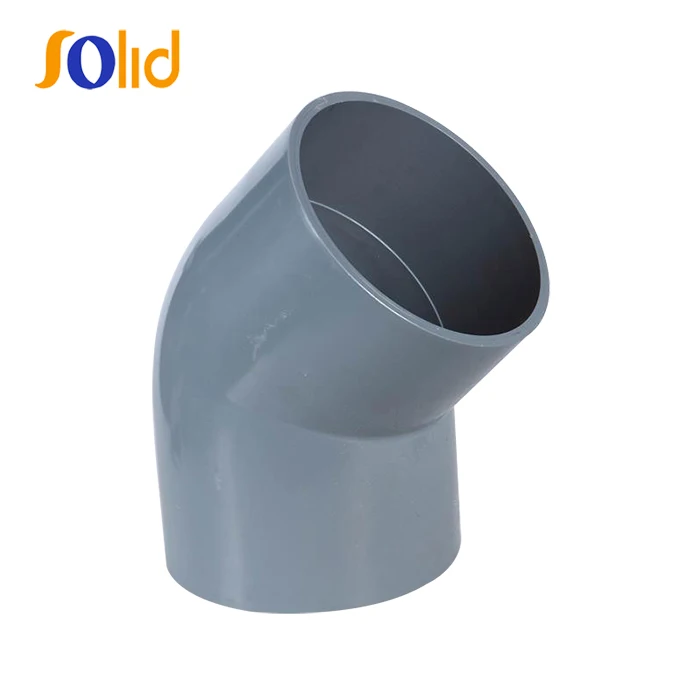

Detailed Images
