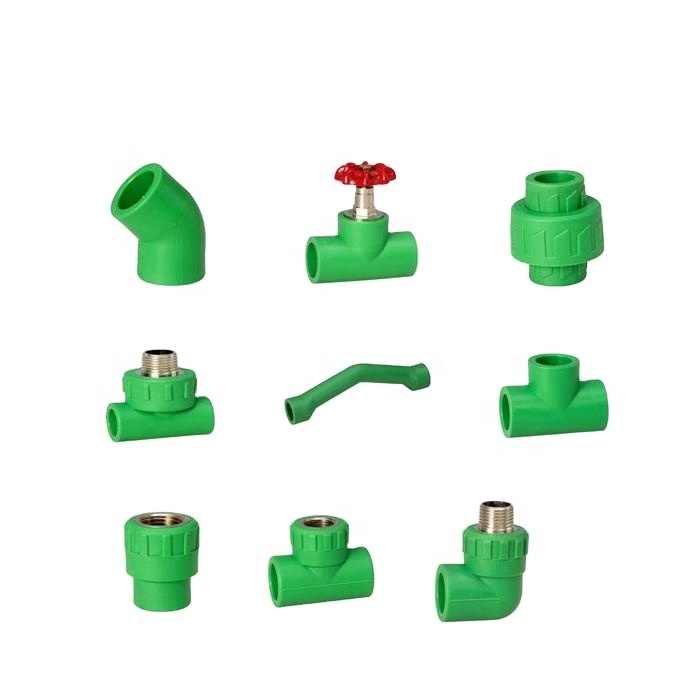

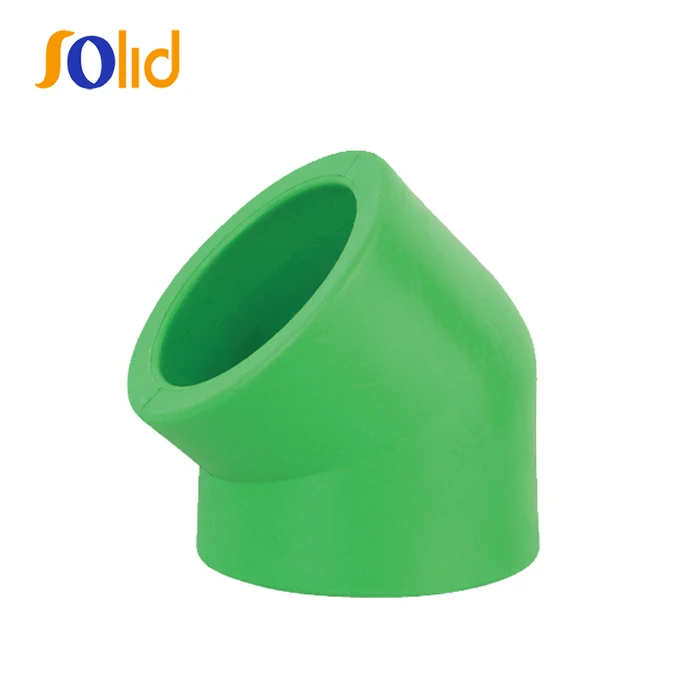

Help CenterGreen White Color Plastic Ppr Pipe Fittings for Water Pipe
Related Products
-
HDPE Plastic Pipe Fitting, Butt Fusion Pipe Fitting Flange Adaptor Stud EndUS$ 0.50 - 5.00MOQ: 50 Pieces -
Buttfusion Pipe Fittings HDPE Injection Female Male Welding Adapter ElbowUS$ 0.50 - 5.00MOQ: 50 Pieces
-
PE100 SDR11 Water Supply HDPE Fitting Electro Fusion Pipe Fitting HDPE Pipe FittingUS$ 0.50 - 5.00MOQ: 50 Pieces
-
High Pressure PE Pipe Butt Fusion Fitting Plastic HDPE Pipe FittingUS$ 0.50 - 5.00MOQ: 50 Pieces
-
High Quality 20-630mm Plastic HDPE Molded Electrofusion FittingsUS$ 0.50 - 5.00MOQ: 50 Pieces
1)Size:20-160mm
2)Pressure Rating:1.0Mpa ,1.6Mpa,2.0Mpa,2.5Mpa
3)Standard:DIN8077/8078.
1.PPR pipe and fitting size:
| Pressure | PN1.0Mpa | PN1.6Mpa | PN2.0Mpa | PN2.5Mpa |
|
outer diameter dn(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
| 20 | 1.9 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 3.0 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.4 |
| 63 | 5.8 | 7.1 | 8.7 | 10.5 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 |
90 |
8.2 | 10.1 | 12.3 | 15.0 |
| 110 | 10 | 12.3 | 15.1 | 18.5 |
2.PPR pipe and fittings Feature:
High Temperature Resistance:In Long term normal use the working temperature is 70 °C,the maximum temperature is up to 95°C in short terms use.
Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe. And 1/250 of steel pipe. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
Corrosion Resistant: resist chemical matters or electron chemical corrosion. can use more than 50 years on normal conditions
Lower Installation Costs: light weight and ease of installation, ppr pipe can reduce installation costs by as much as 50%over metal piping system.
Recycled and Environment-friendly
3.Applications:
1) Cold / hot water supply facilities for public buildings
2) Food, chemical, electronic industry pipeline networks; Such as
Pipeline networks for transporting all kinds of corrosive liquids
3) Drinking water production system pipeline networks; Such as
Pure water and mineral water
4) Air conditioning facility pipelines
5) Compressed gas pipeline networks for industry
6) Pipeline networks for swimming pools
7) Pipeline networks for solar energy facilities
8) Agriculture and garden production transporting systems
Send Inquiry to This Supplier
You May Also Like
-
High Density Polyethylene HDPE Butt Fusion Pipe FittingsUS$ 0.50 - 5.00MOQ: 50 Pieces
-

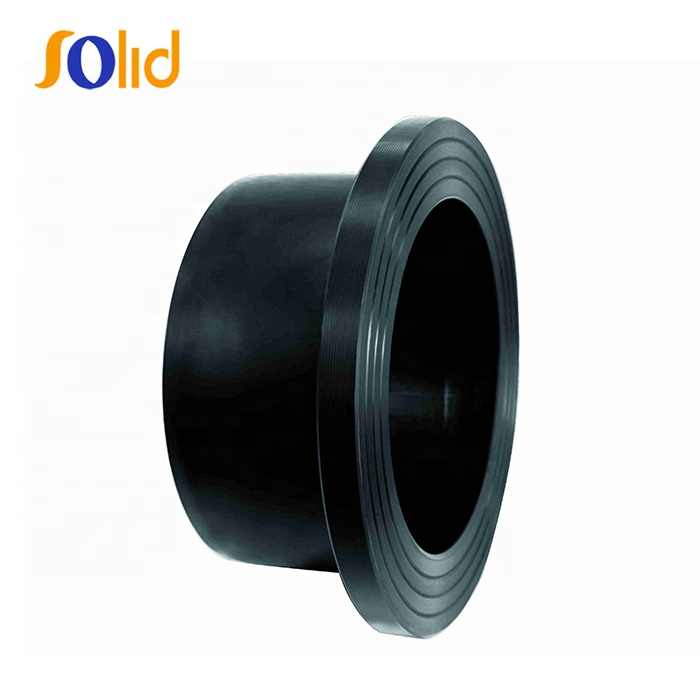

HDPE Butt Fusion Stub End Flange/pe Pipe FittingUS$ 0.50 - 5.00MOQ: 50 Pieces
-
China Supplier HDPE Butt Fusion 22.5 Degree Elbow for Water SupplyUS$ 0.50 - 5.00MOQ: 50 Pieces
-

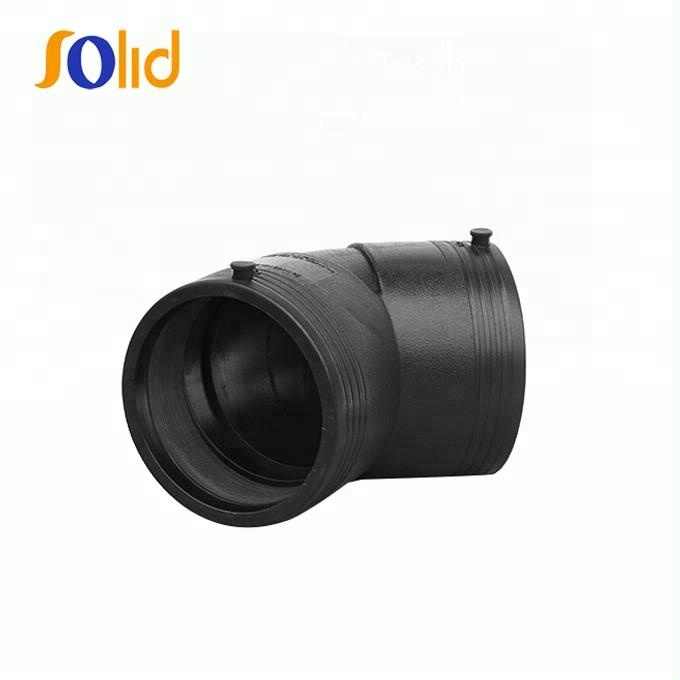

HDPE Electrofusion 90 Degree Elbow Pipe FittingUS$ 0.50 - 4.00MOQ: 50 Pieces
-
