Product Introduction

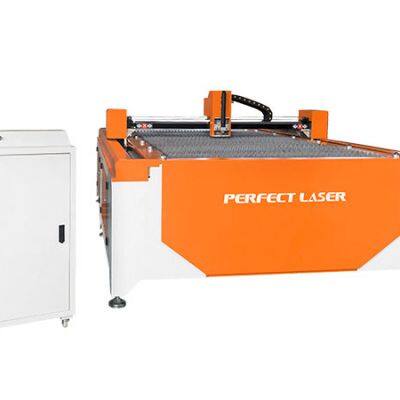

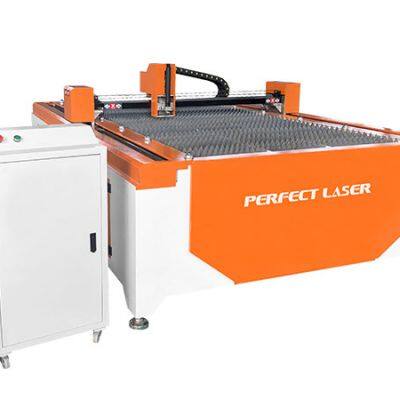

This new type CNC plasma cutting machine adopts light structure and auto height adjusting function to use laser cut letters. accu cutter can promote stability and improve work efficiency.
The CNC cutter consisting of 3 parts: flat bed machine body, NC-studio control system and plasma power supply (optional item, the power can be choosed according to your demanding), CNC cutter has an advantage in cutting 1-5 mm aluminum Ads letters.
Product Features
1) Advertising CNC plasma cutting machine adopt flat bed machine body, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation
2) All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack
3) CNC cutter's planetary reduce drive system, plasma metal cutting input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that CNC cutter can accurately drive the structure of the implementation of the directives issued by the CNC.
4) CNC cutter takes the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
5) All mechanical drive system of CNC cutter uses rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack
6) Planetary reduce drive system, input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that CNC cutter can accurately drive the structure of the implementation of the directives issued by the CNC.
7) CNC cutter takes the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
Application
CNC cutter is automatic and high efficiency cutting equipment. CNC cutter is widely used in all kinds of plasma cutting aluminum, carbon steel, mild steel and nonferrous metal precision sheet metal cutting. It also can be called CNC cutter,laser cut letters,plasma cutter for sale or accu cutter.
Technical Data
Model: |
PE-CUT-A1 Light Structure |
PE-CUT-A2 Heavy Loading Structure |
Type |
Common Advertising Type |
Heavy Industrial Type, including Control Cabinet, Thicken machine body |
Control Method |
Use extra PC to control |
Already including PC inside, just use LCD screen to control the machine |
Usage |
Used in some light and common industry |
Can be used both in light and heavy industry |
Cutting thickness |
0.5-5mm |
1-20mm |
Working material |
Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates |
|
Cutting Speed |
0-6000mm/min |
|
Plasma Current |
60A |
|
Connecting Way |
USB |
|
Cooling method |
With water pump and tank provide circulating water cooling |
|
Rail guide |
Precision work round |
|
Transmit way |
Taiwan imported ball screw |
|
Power Supply |
Standard Item: |
|
60A Chinese top brand Plasma Power Supply (already including) | ||
Optional Item: | ||
60A USA Hypertherm or USA Thermal Dynamics | ||
Spare parts |
Electrode,Electricity nozzle and Water jacket |
|
