Port Conveyor Transfer Wear Liner: Material Flow Smoothie

Name: Port Conveyor Transfer Wear Liner: Material Flow Smoothie
Brand: wodon
Availability: InStock

FOB Price

USD $100 - $300 / Square Foot

1 Square Foot(Min.Order)

Supply Ability 1000 Square Mile / Square Miles per Month
Port shanghai
Payment TermsT/T L/C
Delivery Detail14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	wodon	Place of Origin	China
Model Number	72109000	Length	1400
Thickness	Uniform Overlay Thickness 0-0.5mm	Type	Other, Wear Resistant Plate
Width	3500	Application	Other, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard
Surface Treatment	Other	Technique	Other, Fcw, Saw
Standard	AISI, ASTM, BS, DIN, GB, JIS	Grade	AAAA
Special Use	Wear Resistant Steel

Product Description

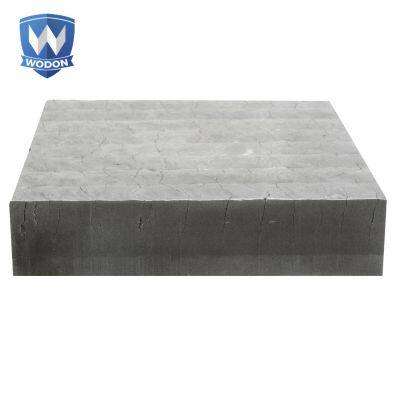

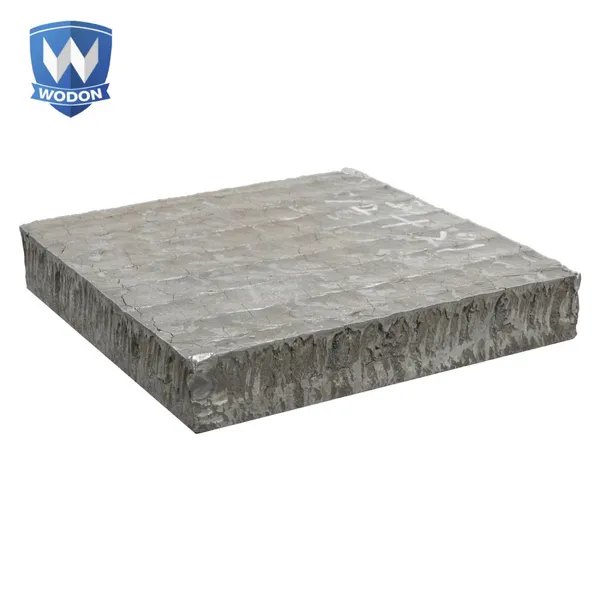

Bimetal Welding Chromium Carbide Overlay(CCO) Clad Wear Plates

1, General Description

Chromium carbide composite cladding fusion bonded to a mild steel backing material.
The deposit has been realized by means of oscillated welding and a wear resistant coating applied by submerged arc welding.
Fine cracks perpendicular to the welding bead is normal due to natural stress relieving in a very hard matrix.
Very high volume of chromium carbides evenly distributed throughout the uniform thickness of the deposit.
Plate hardness ranges from HRC58-65.

2, Application

Wodonplate Suitable for applications involving high abrasion and low to medium impact.

Typical applications are as follows:

Bin and hopper liners
Slurry pipes and bends
Chute and feeders liners
Belt conveyors
Dump truck bodies liner
Mining and earth moving equipment
Mill shell liners
etc...

3, Specification

Thickness(backing plate + weld overlay)	L x W (mm)
4+4, 5+5	1,400 x 3,000
6+6, 8+5, 8+6, 8+8	1,400 x 3,500
10+8, 10+10, 10+20, 12+12, 12+20, 14+26, 12+32, 20+30..	1,400 x 3,500 2,100 x 3,500

Carbon	Silicon	Manganese	Chromium	Iron
3.5-6.0%	1.0-3.0%	1.0-3.0%	27-40%	Balance

Note: Carbon and Chromium content varies in different plate thickness.

4, Fabrication
The backing mild steel plate provides Wodon brand overlay plates with structural integrity, which makes our overlay plates fabricated with zero damage to welding overlay, regardless of the shape and complexity of the structure. Wodon has the capabilities to manufacture and further process such fabrications or to supply formed, read-to-go wear liners.

Cutting: Wodon overlay plates could be cut by plasma, waterjet, laser. Plasma cutting is the recommended method for cutting our plate
Drilling: Straight holes and countersunk holes
Studs Welding: Wodon plate can be fabricated with studs welded to backing of wear plate (M12, M16, M20 and M24)
Joint Welding: Wodon wear plate can be welded and assembled into kinds of wear parts
