Customized 244LD Displacer Level Transmitter Useing FOXBORO 244LD LevelStar Head

FOB Price

USD $10 - $10000 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Place of Origin

China

Product Description

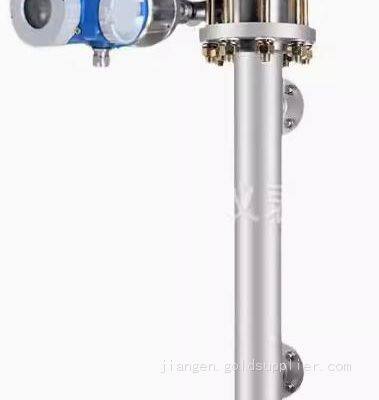

Customized 244LD Displacer Level Transmitter Useing FOXBORO 244LD LevelStar Head

BRIEF INTRODUCTION

This smart displacer liquid level transmitters are developed, designed and manufactured by our factory.

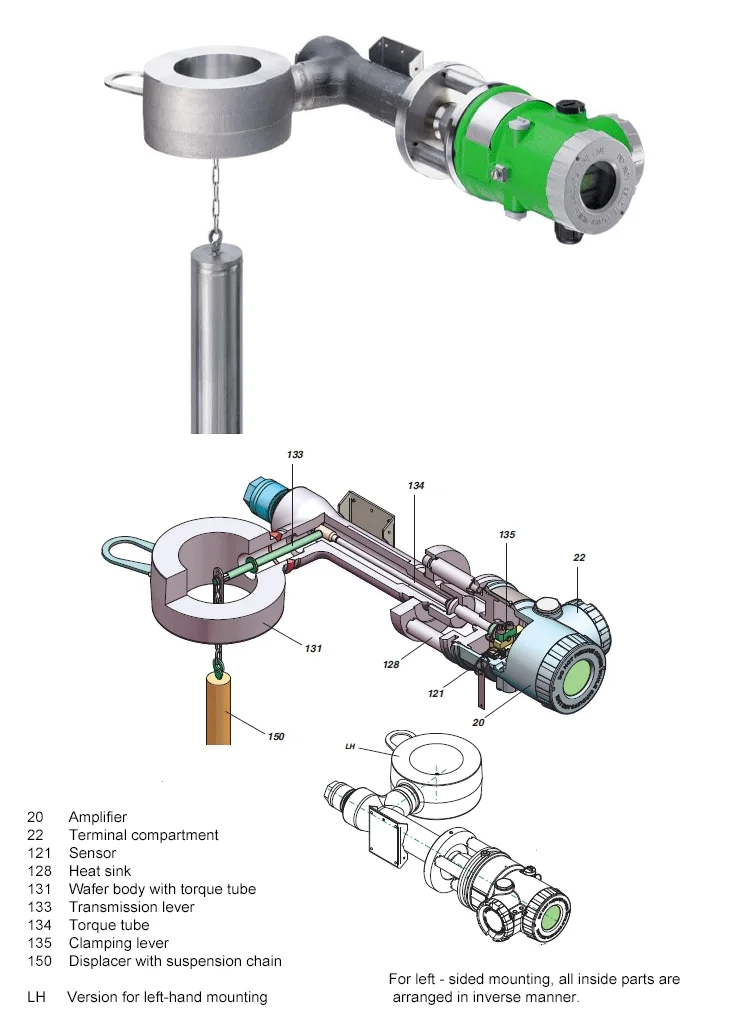

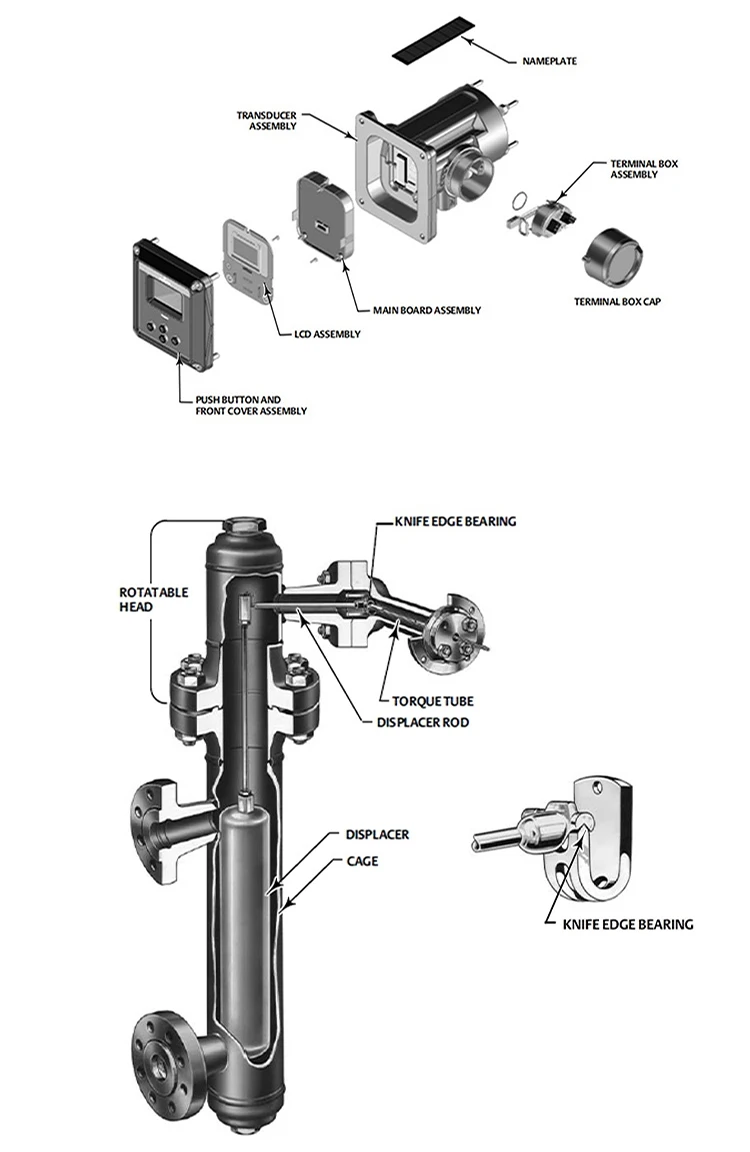

This transmitter is basically composed of the 244LD LevelStar transmitting head, torque tube, wafer body, transmission lever, displacer and measuring cage, etc. Among the parts mentioned above, the 244LD LevelStar transmitting head and the torque tube are imported from ECKARDT SCHNEIDER, all the other parts are made by our factory locally, and all the parts are integrated and assembled in our workshop. Based on the buoyancy working principal, this transmitter can measure liquid level,
level of the interface between two liquids, or liquid density. 244LD LevelStar converts the measurement into 4-20mA and send the same out.

place of origin

China

warranty

12 months

customized support

OEM, ODM

brand name

model number

244LD LevelStar

Product name

Displacer Liquid Level Transmitters

Application 1

liquid level, level of the interface between two liquids

Application 2

liquid density

Normal measuring range

300mm-6000mm

Power supply

12 - 42 VDC

Nominal pressure

2.5 - 42.0MPa

Accuracy

0.2, 0.5, 1.0

Protection grade

IP66

Medium temperature

- 196℃- + 500℃

Output: Analogue

4 - 20 mA DC

SPECIFICATION

Product name	DISPLACER LIQUID LEVEL TRANSMITTER WITH ECKARDT 244LD LEVELSTAR
Normal measuring range	300mm - 6000mm（other measuring range less than the minimum or more than the maximum is available on request）
Accuracy	0.2, 0.5, 1.0
Power supply	12 – 42 VDC
Output: Analogue	4 - 20 mA DC
LCD display	5 digits LCD display for indication of analog signals “mA”, “%”, or other physical units
Load resistance	700Ω ( When power supply is 24 V DC）
Density range	100<ρ<2000 kg/m3
The minimum density difference	0.05 g/cm3
Nominal pressure	2.5 - 42.0MPa
Medium temperature	- 196℃- + 500℃
Ambient temperature	- 40℃- + 80℃
Protection grade	IP66
Explosion proof grade
Intrinsic safety	Ex ia IIB/ IIC T4/T6 Ga/Gb
Flameproof	Ex d IIB/ IICT4/T6 Gb
Cable entry	2* NPT1/2, M20×1.5 thread
Cable diameter	6 ～ 12mm
