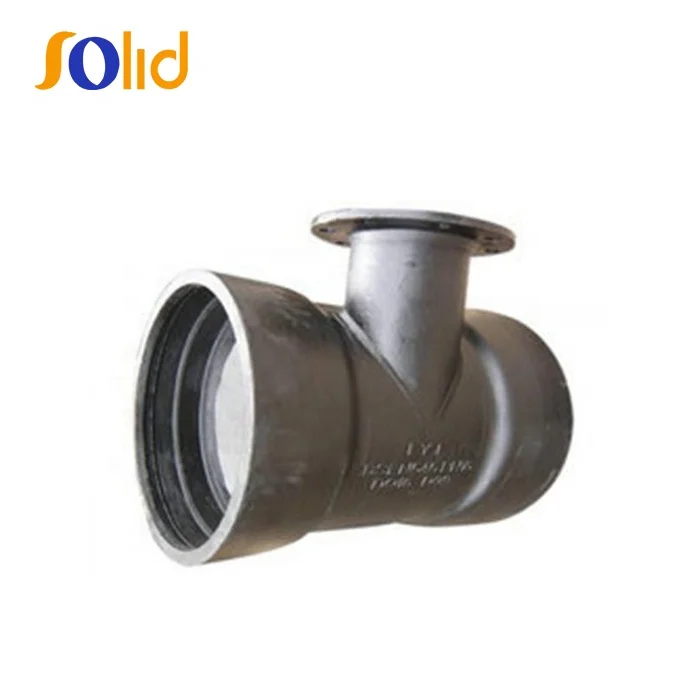

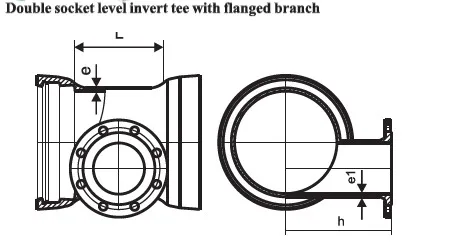

Help CenterWater Line Ductile Iron Fittings Double Socket Level Invert Tee With Flange
Related Products
-
Zinc Spaying Ductile Iron Fittings Socket Spigot 90 Degree Pipe ElbowUS$ 1300.00 - 1400.00MOQ: 50 Tons -
ISO2531/En545/En598 Ductile Iron Pipe Fittings Double Flanged Short PipeUS$ 1000.00 - 1400.00MOQ: 50 Tons
-
PN10 PN16 PN25 Ductile Iron Fittings All Flanged Tee 45 Degree Angle BranchUS$ 1000.00 - 1400.00MOQ: 50 Tons
-
Ductile Iron Pipe(Tyton Joint or Push on Joint)US$ 600 - 900MOQ: 1 Ton
-
Ductile Iron Pipe(K Type Joint or Mechanical Joint)US$ 600 - 900MOQ: 1 Ton
Ductile cast iron
Size range: DN30 to DN2600
Manufacture standard: ANS/AWWA C110153
Coating exterior: Zinc spaying130g/m2 and bitumen coating 70μm thick.
Cement lining interior: Cement mortar lining
Special requirements on external coating and internal lining can be applied
1 | Type: | Tyton (push on) Socket Pipe Fitting |
Flanged Pipe Fitting | ||
K type Bolted Gland Pipe Fitting | ||
Mechanical Joint Pipe Fitting | ||
Ductile Iron Pipe Fitting for PVC Pipe | ||
2 | Standard: | ISO2531, EN545, EN598, BS4772, EN12842, AWWA C110, AWWA C153, etc |
3 | Size: | DN80~2600mm |
4 | Pressure: | PN10, PN16, PN25, PN40 |
5 | Application: | Water supply project, drainage, sewage, irrigation, water pipeline. |
6 | Certificate: | ISO9001, BV, WRAS, BSI |
7 | Internal Coating: | a). Portland cement mortar lining |
b). Sulphate Resistant cement mortar lining | ||
c). High-Aluminum cement mortar lining | ||
d). Fusion bonded epoxy coating | ||
e). Liquid epoxy painting | ||
f). Black bitumen painting | ||
8 | External Coating: | a). Zinc + bitumen painting |
b). Fusion bonded epoxy coating | ||
c). Zinc-aluminum alloy + liquid epoxy painting | ||
9 | Accessories: | Rubber rings & Gaskets : SBR or EPDM Bolts & Nuts : Galvanized carbon steel G4.8/G8.8, or SS304/SS316 |
10 | Packing: | Wooden case/pallet with plastic layer, or as per customer's requirements. |
