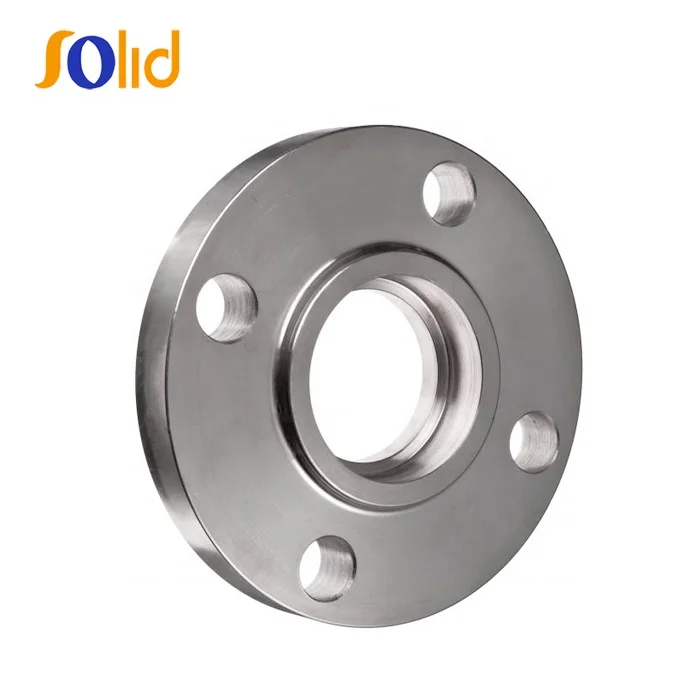

Help CenterANSI B16.5 Stainless Steel Raised Face Class 150 lb Slip On Pipe Flanges
Related Products
-
Stainless Steel Welding Neck 150lbs Threaded Forged FlangesUS$ 8.00 - 15.00MOQ: 50 Pieces -
ANSI B16.5 Stainless Steel SS Blind Plate FlangeUS$ 8.00 - 15.00MOQ: 50 Pieces
-
ANSI B16.5 150 RF Stainless Steel 304 Forged Long Welding Neck FlangeUS$ 8.00 - 15.00MOQ: 50 Pieces
-
AWWA C-207 A36 Class150 Class300 Pipe Fittings Carbon Steel FlangeUS$ 8.00 - 15.00MOQ: 50 Pieces
-
ASTM B16.5 A105Nn Carbon Steel Reducing Flange,Butt Weld Neck FlangeUS$ 8.00 - 15.00MOQ: 50 Pieces
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: PN2.5,PN6,PN10,PN16,PN25,PN40, class150, class300, class600, class900, class1500, class2500.
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel , stainless steel ,alloy steel
Coating: black paint, yellow transparent paint, cold and hot dip galvanized
| Size | 1/2"-80" |
|
| Type |
Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc. |
|
| Standard | ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
|
| Pressure | ANSI 150LBS-2500LBS, |
|
DIN PN6-PN100 | ||
BS PN0.25-PN25 PN2.0-PN42.0 | ||
ISO7005-1,PN2.5-PN40 | ||
| Materials | ASTM:SA105N/A105 |
|
Low Temperature Carbon Steel: ASTM SA350 LF2 | ||
High Strength Steel: ASTM SA694 F42/46/52/56/60/65 | ||
| ASTM A182 F304/304L/316/316L | ||
| ASTM A182 F1/F5/F9/F11/F22/F91/Etc. | ||
| ASTM A182 F51/F53/F55/F60 | ||
| Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800 | ||
| 90/10,70/30 | ||
Materials shall be identified in the following ways:
(a) Cast flanges shall bemarkedwith theASTMspeci-fication, 1 grade identification symbol (letters and num-bers), and the melt number or melt identification.
(b) Plate flanges and forged flanges shall be marked with the ASTM specification 1 number and grade identi-fication symbol.
(c) Amanufacturermay supplement thesemandatory material markings with his trade designation for the material grade, but confusion of symbols shall be avoided.
(d) For flanges manufactured from material that meets the requirements for more than one specification or gradeof a specification listed inTable 1, seepara. 4.2.8.
