Home > Products > Butterfly Valve > BS EN593 Ductile Iron Resilient Seat Double Flanged Double Eccentric Butterfly Valve with Gear Box
BS EN593 Ductile Iron Resilient Seat Double Flanged Double Eccentric Butterfly Valve with Gear Box
USD $10.00 - $100.00
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Pn16, JIS10k, ANSI150 Ductile Iron Cast Iron Lug Type Butterfly Valve
-
Large Size Ductile Iron Electric Double Flanged Eccentric Butterfly Valve
-
OEM Industrial DN40-DN1200 Pn16 Ductile Iron Manual Wafer Type Butterfly Valve
-
Good Selling Ductile Iron Cast Iron Water Industry Wafer Type Butterfly Valve
-
Ductile Iron Cast Iron Center Line with Lever Wafer Butterfly Valve
-
API/ANSI/DIN/JIS Ductile Iron Cast Iron PN10 PN16 Wafer Soft Seat Butterfly Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description

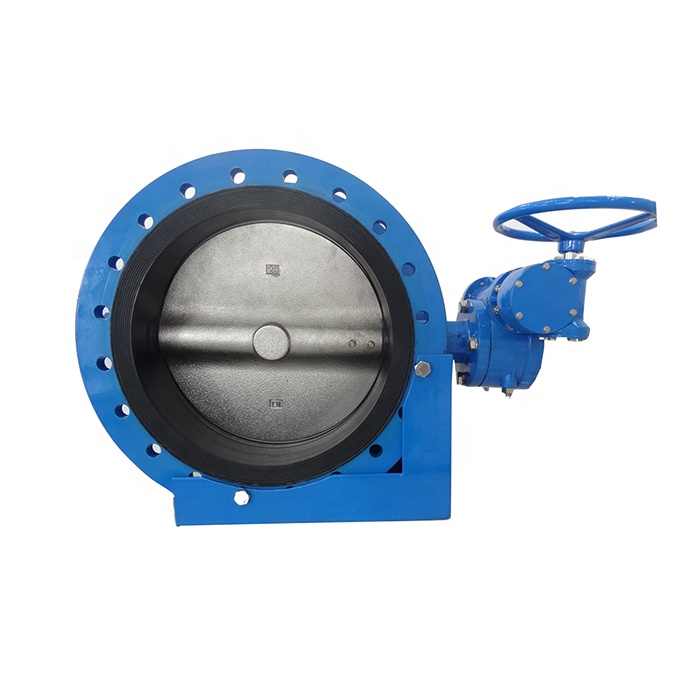

Ductile iron BS EN593 resilient seat double eccentric double flanged Butterfly Valve with gearbox and hand wheel
1. Products: BS EN593 resilient seat double eccentric butterfly valve
2. Material of construction: ductile iron (GGG50)
3. Dimensions: DN200-DN2000
4. Connection type: Flanged, BS EN1092
5. Seal type: soft seal (EPDM Rubber or NBR)
6. Design standard: BS EN593
7. Flange: EN1092-2, PN10, PN16
8. Face to face dimensions: BS5156/DIN3202 F4(ISO5752 S13/14), EN558-1 basic series 13,
9. Each valve be tested according to test standard: BS6755
10. Work temperature: 0-80°C
11. Flow media: water
Application: portable water
NO. | Name | Material | Specification |
1 | Body | Ductile Iron | ASTM A536 |
2 | Disc | Plated Ductile Iron | ASTM A536 |
3 | Stem | Stainless Steel | A276-410 |
4 | Disc sealing | NBR(NIRILE) EPDM | |
5 | Pin | Stainless Steel | A182 F6A |
6 | Clamping ring | Steel | |
7 | Bushing | PTFE | |
8 | Connecting bracket | Ductile iron | ASTM A536 |
8 | Packing gland | Ductile iron | ASTM A536 |
10 | Packing | EPDM NBR |
Detailed Images
