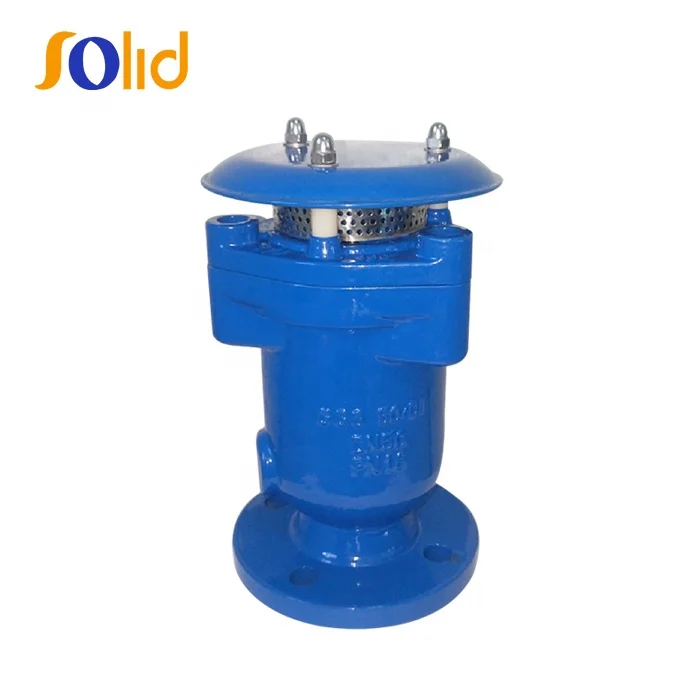

Help CenterBS4504 PN10/16 Ductile Iron GGG50 Single Flanged Air Pressure Relief Valve
Related Products
-
Ductile Iron Flanged Triple Function Exhaust Valve Air ValveUS$ 10.00 - 100.00MOQ: 50 Pieces -
Ductile Iron Flange End Double Orifice Ball Air Release ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Ductile Cast Iron Automatic Air Release Valve For Liquid / Water Air Relief ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Flanged Single Orifice Automatic Quick Air Release ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
-
Ductile Iron Threaded Ends Single Orifice Air Vent Release ValveUS$ 10.00 - 100.00MOQ: 50 Pieces
Applicable Standards
1.Flange Drlledacc To BS4504/EN1092-2
2.Face To Face Dimensionacc. To BS4504/EN1092-2
3.Flange Raised Face Flange
4.Maximum Working Pressure 16Bar(1.6mpa)
5.Maximum Working Temperture 100℃

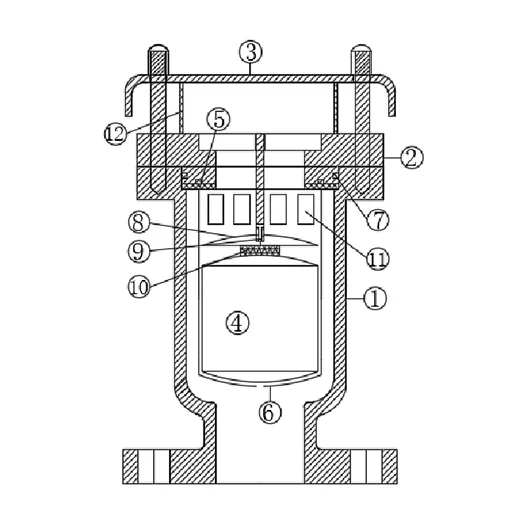

Material List
1.Body:DI/GGG50
2. Bonnet:DI/GGG50
3. Cap:SS304
4. Sealing Ball:SS304
5. Gasket:EPDM
6. Ball cage: SS304
7.O-Rings: EPDM
8.Exhaust hood: SS304
9.Steering column :SS304
10.Ball seal:EPDM
11.Lnsect: SS304
12.Boit and nut :SS304
Standard |
EN1074-4, BS , ANSI |
Type |
Single orifice type, double orifice type, triple function |
Material |
Ductile iron GGG40/50 /Cast Iron GG25/Carbon Steel, float ball: SS304, ABS or NBR |
Coating |
Internal and external with fusion bonded epoxy coating. min250μm or liquid epoxy painting |
