Home > Products > Air Valve > Factory Ductile Iron Double Orifice Air Valve with Two Three Function Use Flange End Air Valve
Factory Ductile Iron Double Orifice Air Valve with Two Three Function Use Flange End Air Valve
US$ 10.00 - 100.00
/ Piece
50 Pieces(Min. Order)
- TianJin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
You May Like
-
Ductile Iron Ggg50 Flanged Double Orifice Water Air Release Valve
-
Cast Iron Water Air Relief Valve
-
BS4504 PN10/16 Ductile Iron GGG50 Single Flanged Air Pressure Relief Valve
-
Ductile Iron Flanged Triple Function Exhaust Valve Air Valve
-
Ductile Iron Flange End Double Orifice Ball Air Release Valve
-
Ductile Cast iron Automatic Air Release Valve For Liquid / Water Air Relief Valve
Product Details
| Brand Name | SOLID | Place of Origin | China |
Product Description
Product Description
Body: Ductile Iron BS2879-500.7/DIN1693 GGG50/EN1563 GJS500
Float guide: ABS
Support: ABS
O-ring: EPDM BS2494
Cover: Ductile Iron BS2879-500.7/DIN1693 GGG50/EN1563 GJS500
Bolts and Nut: Zinc-plated steel BS4190
Seat: EPDM BS2494
Gasket: EPDM BS2494
Cap:Nylon/brass
Bracket: Nylon
Hinge pin: Stainless Steel BS1574

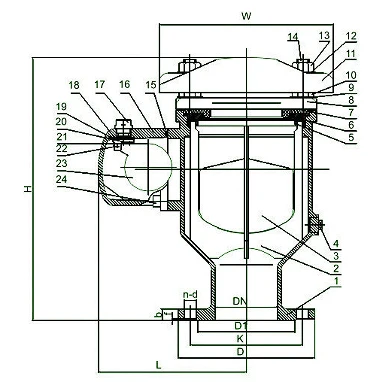

MATERIAL OF MAIN PARTS:
No | Part | Material | Standard | |||
US | BS | DIN | EN | |||
1 | Body | Ductile iron | BS2789 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
2 | Float guide | ABS | ||||
3 | Float | ABS | ||||
4 | Drain plug | Stainless steel | BS970 304S 15 | |||
5 | Support | ABS | ||||
6 | Seat ring | EPDM | BS2494 | EN681.1 | ||
7 | Seat support | ABS | ||||
8 | Cover | Ductile iron | BS2789 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
9 | Washer | Zinc-plated steel | BS4190 | |||
10 | Nut | Zinc-plated steel | BS4190 | |||
11 | Cowl | Ductile iron | BS2789 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
12 | Washer | Zinc-plated steel | BS4190 | |||
13 | Nut | Zinc-plated steel | BS4190 | |||
14 | Bolt | Zinc-plated steel | BS4190 | |||
15 | O-ring | EPDM | BS2494 | EN681.1 | ||
16 | Side body | Ductile iron | BS2789 500-7 | DIN1693 GGG50 | EN1563 GJS500 | |
17 | Cap | Nylon | ||||
18 | Gasket | EPDM | BS2494 | EN681.1 | ||
19 | Bracket | Nylon | ||||
20 | Screw | Stainless steel | BS970 304S 15 | |||
21 | Seat | BS2494 | EN681.1 | |||
22 | Hinge pin | Stainless steel | BS970 304S 15 | |||
23 | Side float | ABS | ||||
24 | Stud | Zinc-plated steel | BS4190 | |||
