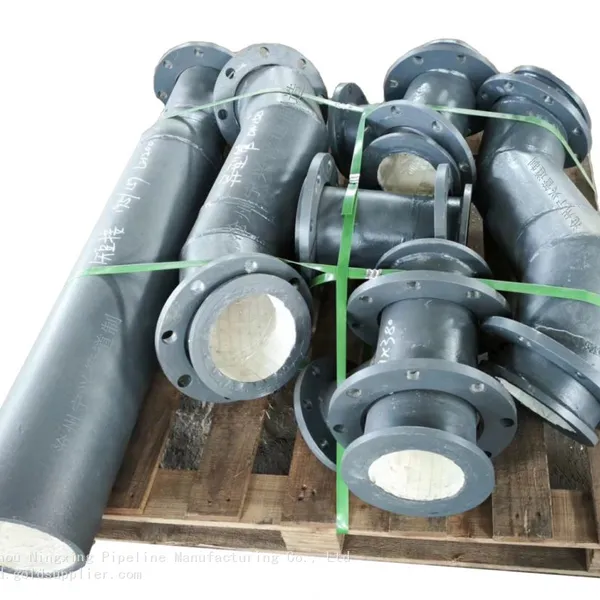

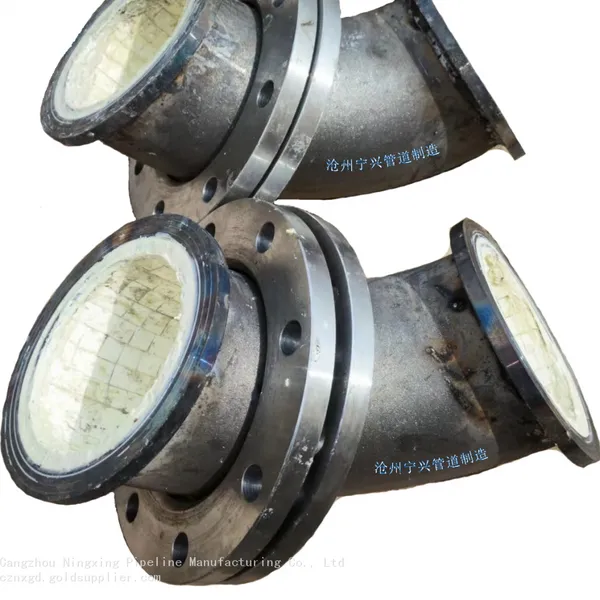

Definition and characteristics of ceramic wear-resistant pipe fittings
Ceramic wear-resistant pipe fittings are pipeline fittings made by combining wear-resistant ceramics and carbon steel, mainly used for transporting abrasive materials containing solid particles, as well as high-temperature corrosive mixed gases, slurries and other abrasive media. Its main features include:
High hardness: The inner lining layer is usually made of high-purity alumina as the main material, which is produced through a special sintering process and has a hardness of HRA90 or above.
Excellent wear resistance: Under wear conditions, the wear resistance is extremely strong, which can significantly extend the service life of the equipment.
Lightweight and high-strength: Ceramic density is only half of steel, which can greatly reduce equipment load.
Good corrosion resistance: suitable for transporting various corrosive media.
Manufacturing process of ceramic wear-resistant pipe fittings
The production process of ceramic wear-resistant pipe fittings mainly includes the following aspects:
Material composition

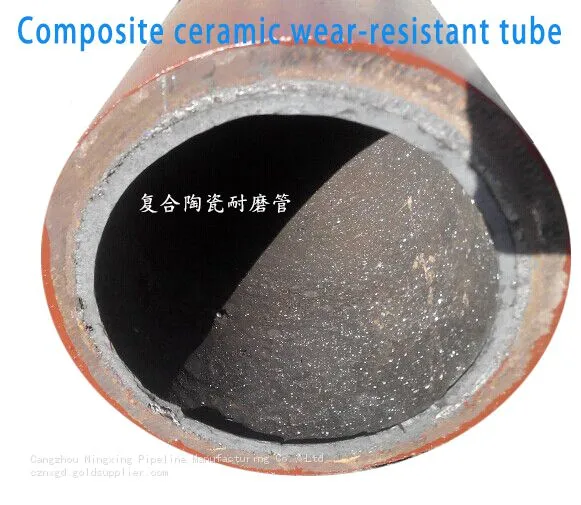

Ceramic wear-resistant pipe fittings consist of three layers of materials: external steel pipes, intermediate transition layers, and internal wear-resistant ceramic lining layers. This structural design aims to combine the advantages of each layer of material to improve the overall wear resistance.
Application fields of ceramic wear-resistant pipe fittings
Due to its excellent wear resistance, corrosion resistance, heat resistance, and thermal shock resistance, ceramic wear-resistant pipe fittings are widely used in the following industries:
Electricity, metallurgy, mining, coal, chemical industry, etc. In these industries, ceramic wear-resistant pipe fittings are mainly used for conveying abrasive particles and corrosive media such as sand, stone, coal powder, ash, aluminum liquid, slurry, etc.
Installation and maintenance of ceramic wear-resistant pipe fittings
Installation precautions
Protective measures: The pipe mouth needs to be protected to prevent collisions during transportation and lifting.
Advantages and limitations of ceramic wear-resistant pipe fittings
advantage
Longer service life: Compared to traditional wear-resistant materials, ceramic wear-resistant steel pipes have a longer service life (some parts are more than 60 times longer than ordinary steel pipes).
Easy installation: Welding or flange connection can be used, the installation process is relatively simple, and the economic benefits are significant.
