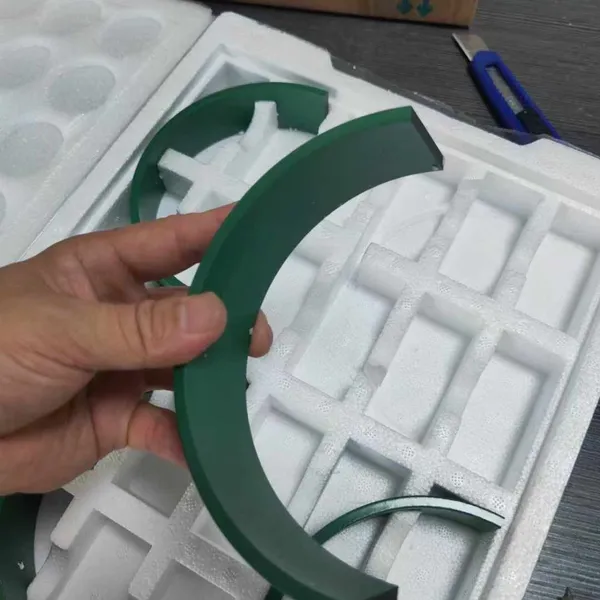

Help CenterFERROXCUBE Ferrite Cores TN16/9.6/6.3-3E25/3E27/TC/TX/3E6
Related Products
-
FERROXCUBE Ferrite Cores/Magnet Ring TN14/9/5-4C65,TC9.5/4.8/3.2-3F3,TX10/6/4-3E6US$ 0.2 - 0.23MOQ: 100 Pieces -
FERROXCUBE Ferrite Cores/Magnet Ring EP10-3E6,CSH-EP10-2S-8P,CLI-EP10US$ 0.1 - 0.12MOQ: 1 Piece
-
FERROXCUBE Ferrite Cores RM4/I-3F3,CSV-RM4-1S-6P-C,CLI/P-RM4/5/IUS$ 0.036 - 0.045MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores TX36/23/15-4A11US$ 0.3 - 0.4MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores ER32/6/25-3C95 CLM-ER32/6/25-CUS$ 0.1 - 0.15MOQ: 100 Pieces
EVERWORTH represents the following brands:
1.Ferrite Core: Ferroxcube, MAGNETICS,DMEGC,EPCOS/TDK,ARNOLD,Laird,ACME,Fair-Rite,CSC；
2. Thin film capacitors:FEIDA, Japan OKAYA (discharge tube, filter, surge protector, X2 capacitor);
3. Bobbin: FERROXCUBE,SHULIN
4. Customize high-frequency and low-frequency transformers, wound inductors, etc;
Material properties:
3C91 3000 370 220 is an intermediate frequency power material with low power loss around 60 ° C, used for power supplies and general transformers with frequencies up to 0.33 MHz
3C92 1500 460 280 is a low-frequency, high Bsat power material used for output chokes and power inductors with frequencies up to 0.2 MHz
3C94 2300 380 220 is a low-frequency power material used for power supplies and general transformers with frequencies up to 0.3 MHz
3C95 3000 410 215 is a medium low frequency power material with low power loss in the range of 25 to 100 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3C96 2000 440 240 Medium low frequency power materials for power supplies and general transformers with frequencies up to 0.4 MHz
3C97 3000 410 215 is a medium low frequency power material with low power loss in the range of 50 to 140 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3F36 1600 420 230 is a medium to high frequency power material used for power supplies and general transformers with frequencies ranging from 0.3-1 MHz. Low power loss in the range of 25 to 100 ° C. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile handheld devices.
3F4 900 350 220 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz
3F46 750 430 280 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz. The temperature characteristics have been adjusted and can operate stably within the range of 25-100 ° C. The product size is 40mm larger
4C65 125 340 350 Low permeability NiZn ferrite for RF tuning, broadband, and balun transformers
