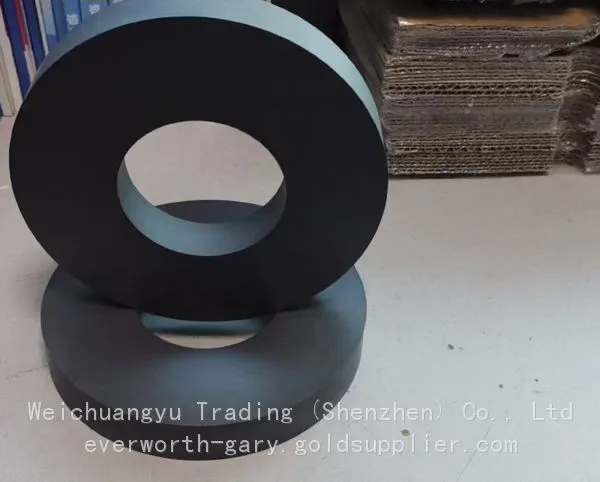

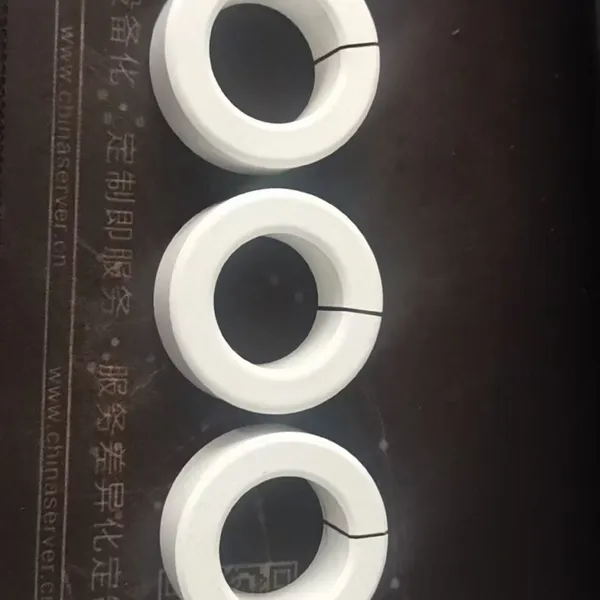

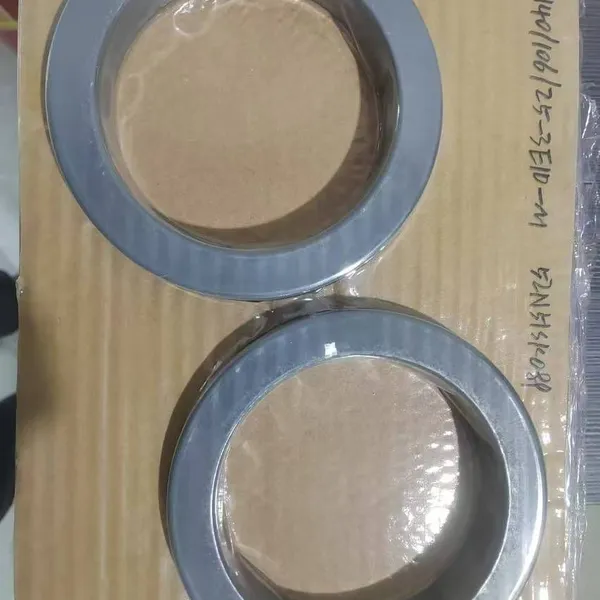

Help CenterFERROXCUBE Ferrite Cores TX36/23/15-3F3，3F36,3F46
Related Products
-
FERROXCUBE Ferrite Cores TC6/4/3-3E6US$ 0.03 - 0.04MOQ: 100 Pieces -
FERROXCUBE Ferrite Cores TX42/26/18-3E5US$ 0.7 - 0.8MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores TN14/9/5-4C65US$ 1.8 - 2MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores TC/TN/TX/TN9/TN16/TN14/TN20NegotiableMOQ: 100 Units
-
FERROXCUBE Ferrite Cores TN14.TN16.TN9.TN10.TN20US$ 0.1 - 0.16MOQ: 100 Pieces
EVERWORTH represents the following brands:
1.Ferrite Core: Ferroxcube, MAGNETICS,DMEGC,EPCOS/TDK,ARNOLD,Laird,ACME,Fair-Rite,CSC；
2. Thin film capacitors:FEIDA, Japan OKAYA (discharge tube, filter, surge protector, X2 capacitor);
3. Bobbin: FERROXCUBE,SHULIN
4. Customize high-frequency and low-frequency transformers, wound inductors, etc;
Material properties:
3C91 3000 370 220 is an intermediate frequency power material with low power loss around 60 ° C, used for power supplies and general transformers with frequencies up to 0.33 MHz
3C92 1500 460 280 is a low-frequency, high Bsat power material used for output chokes and power inductors with frequencies up to 0.2 MHz
3C94 2300 380 220 is a low-frequency power material used for power supplies and general transformers with frequencies up to 0.3 MHz
3C95 3000 410 215 is a medium low frequency power material with low power loss in the range of 25 to 100 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3C96 2000 440 240 Medium low frequency power materials for power supplies and general transformers with frequencies up to 0.4 MHz
3C97 3000 410 215 is a medium low frequency power material with low power loss in the range of 50 to 140 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3F36 1600 420 230 is a medium to high frequency power material used for power supplies and general transformers with frequencies ranging from 0.3-1 MHz. Low power loss in the range of 25 to 100 ° C. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile handheld devices.
3F4 900 350 220 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz
3F46 750 430 280 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz. The temperature characteristics have been adjusted and can operate stably within the range of 25-100 ° C. The product size is 40mm larger
4C65 125 340 350 Low permeability NiZn ferrite for RF tuning, broadband, and balun transformers
