2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission

Shenzhen Beilai Technology Co., Ltd.
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission thumbnail-1
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission thumbnail-2
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission thumbnail-3
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission thumbnail-4
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission thumbnail-5
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission photo-1
2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission photo-2

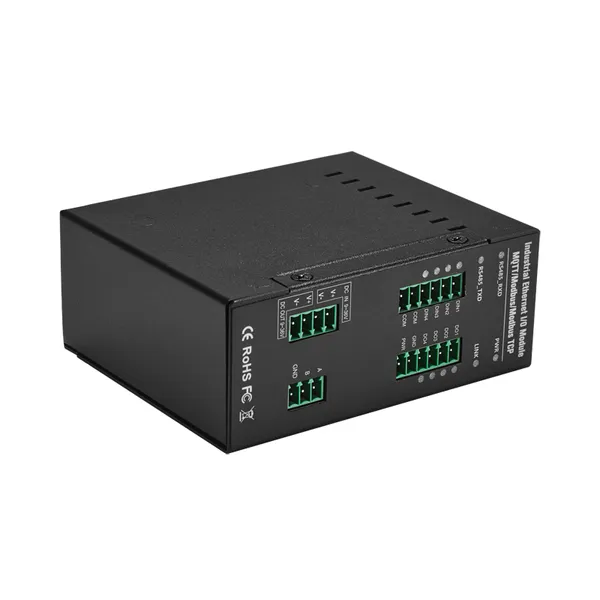

2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission photo-3

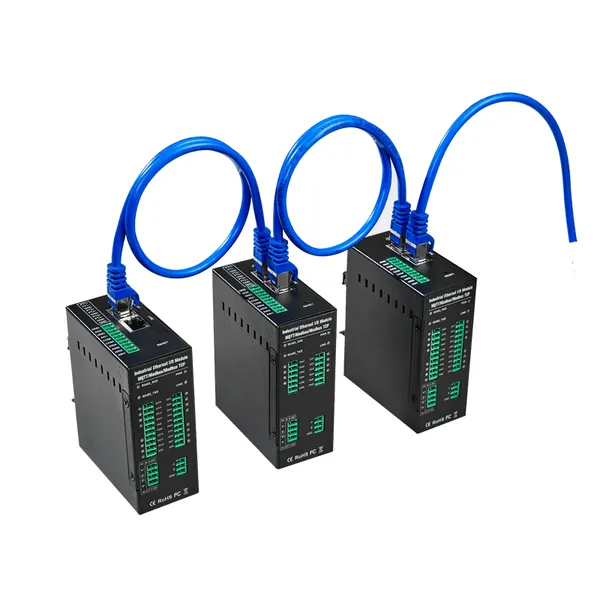

2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission photo-4

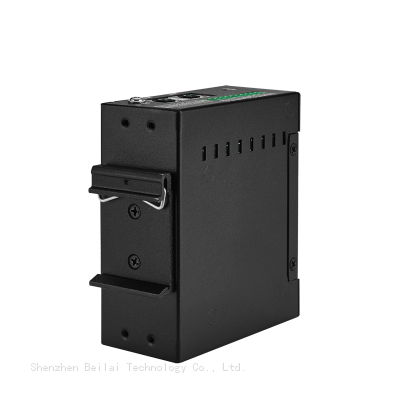

2RJ45 1 RS485 4CH Digital Output Module With Built-in Watchdog for ATM Data Transmission photo-5
US$ 117.42 - 139.28 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
M220E
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number M220E

Product Description

Ethernet Digital Output MQTT I/O Module for Building Automation System

The digital output module M220 is one of M series Ethernet remote I/O modules, the Modbus/MQTT digital output module is used for controlling digital consumer like contactors, relays, pump, fan, pneumatic and hydraulic valves. The I/O module comes with 4DO, Ethernet port, RS-485 serial port.

Detailed Photos

Application

Product Parameters

ItemParameterDescription
PowerInput voltage

  1. Models without AO: 9~36VDC

  2. Models with AO: 24~36VDC

Power consumptionTypical standby power consumption: ≤ 2W
Power Output

  1. 1 channel

  2. Output voltage: 9~36V DC

  3. Output current: 1500mA@12V(MAX)

ProtectionReverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
EthernetSpecification2 x RJ45, 10M/100Mbps
ProtectionESD contact: 8KV, Surge: 4KV(10/1000us)
ProtocolModbus RTU, Modbus TCP, MQTT
Serial portQTY1 x RS485
Baud Rate2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bit7, 8
Parity BitNone, Even, Odd
Stop Bit0.5, 1, 1.5, 2
ProtocolModbus RTU(slave), Modbus RTU(master)
ProtectionESD contact: 8KV  Surge: 4KV(8/20us)
Digital outputQTY4 channels
TypeSINK
Capacity500mA per contact
Overvoltage protection50VDC
Pulse outputThe first DO supports pulse output, pulse output frequency: 10Hz~300KHz
SoftwareProtocolsIPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversionSupport Modbus TCP and RTU protocol conversion
Support Modbus RTU to MQTT and Modbus TCP to MQTT
Indicator lightPower, Link, RS485_RXD, RS485_TXD, IO status
User configurationPC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
Map databool: 300
16bit: 300
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
EnvironmentWorking-20~70°C, 5~95%RH
Storage-40~85°C, 5~95%RH
OthersCaseMetal
Dimension82mm×40mm×100mm
Protection gradeIP30
Net Weight450g
InstallationDIN rail mounted, Wall-mounted
