Product Description

2RJ45 1RS485 4DI 4DO Dual Ethernet Modbus MQTT I/O Modules

The BLIIoT's wide range of digital I/O modules guarantees the right module for diverse applications.
The input/output module M110E is used for controlling digital consumer like contactors, relays, pneumatic and hydraulic valves, as well as for reading digital signals of sensors or detectors.

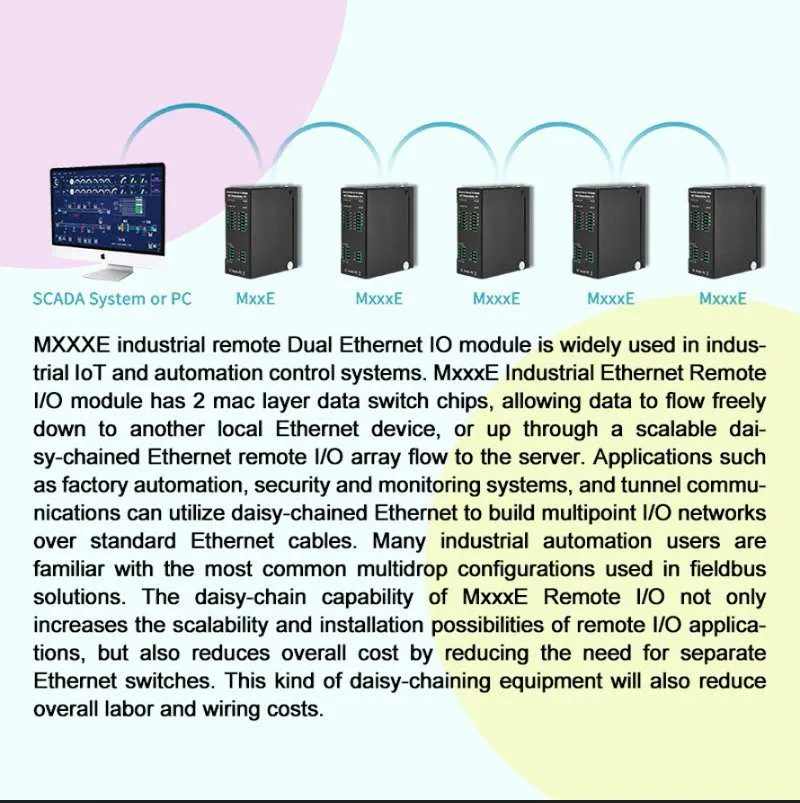

The Digital I/O M110E comes with 4 digital inputs, 4 digital outputs, 1RS485 Serial ports, 2Ethernet ports.

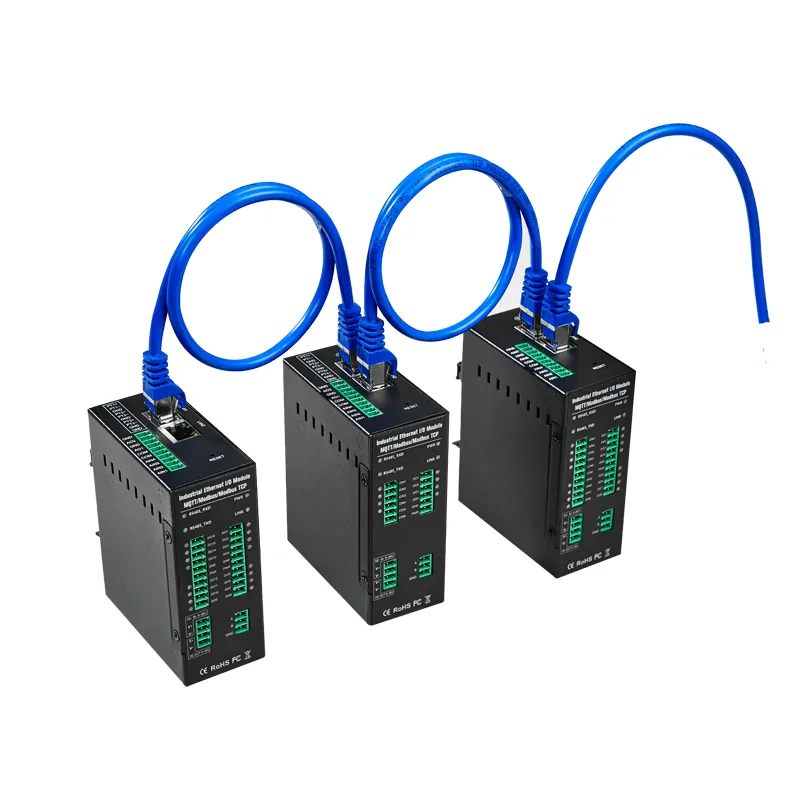

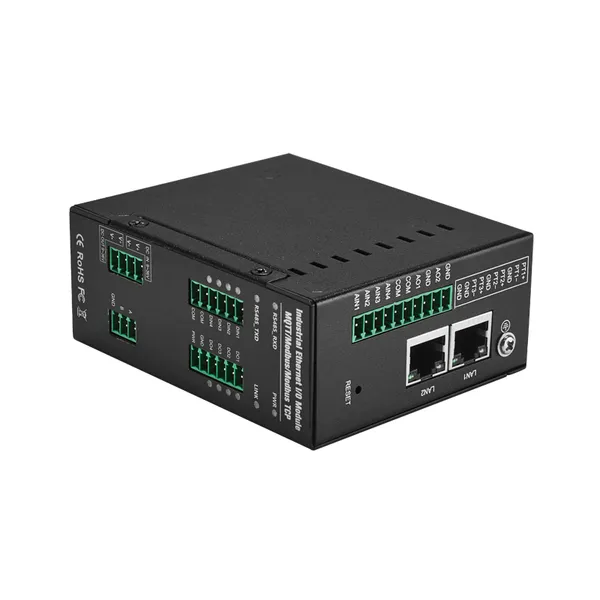

Detailed Photos

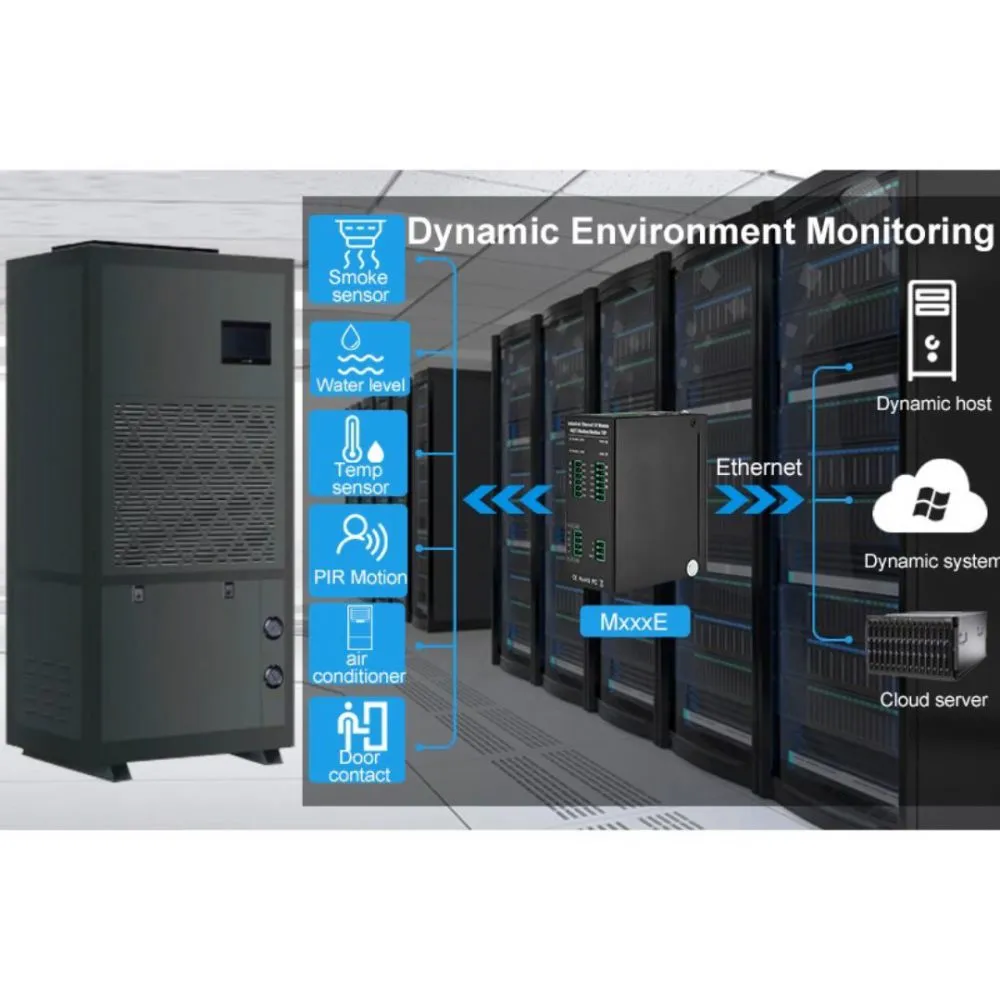

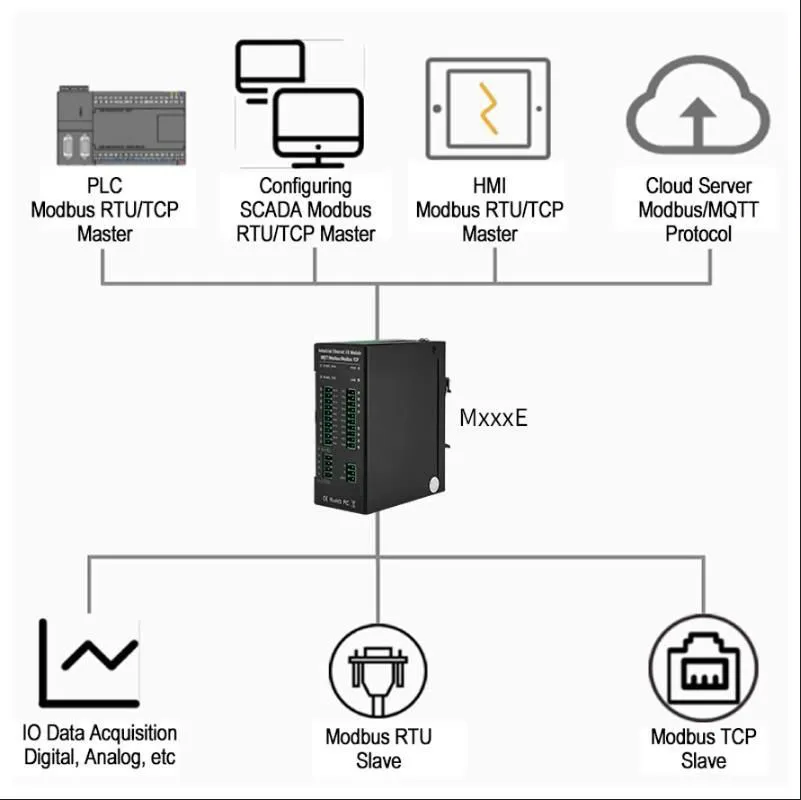

Application

Product Parameters

Item Parameter Description
Power Input voltage
Models without AO: 9~36VDC
Models with AO: 24~36VDC
Power consumption Typical standby power consumption: ≤ 2W
Power Output
1 channel
Output voltage: 9~36V DC
Output current: 1500mA@12V(MAX)
Protection Reverse wiring prevention;
ESD Air: 15KV; Surge: 4KV
Ethernet Specification 2x RJ45, 10M/100Mbps
Protection ESD contact: 8KV, Surge: 4KV(10/1000us)
Protocol Modbus RTU, Modbus TCP, MQTT
Serial port QTY 1 x RS485
Baud Rate 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bit 7, 8
Parity Bit None, Even, Odd
Stop Bit 0.5, 1, 1.5, 2
Protocol Modbus RTU(slave), Modbus RTU(master)
Protection ESD contact: 8KV  Surge: 4KV(8/20us)
Digital input QTY 4 channel
Type Support Wet contact(NPN, PNP) and Dry contact.
Default: Wet contact
Dry contact
Close: Short circuit
Open: Open circuits
Wet contact
Close: 10~30VDC
Open: 0~3VDC
Others Support DIN1 as a pulse counter: Support high-speed pulse and low-speed pulse mode, default high-speed pulse frequency is up to 700KHz, and the optional low-speed pulse frequency is up to 10KHz.
Support DIN2~DIN12 as low-speed pulse counter: The anti-jitter time can be set from 1~2000ms, default is 1ms, and the corresponding pulse frequency is up to 1KHz.
Isolated protection 2KVrms
Sampling Rate 100Hz
Digital output QTY 4 channels
Type SINK
Capacity 500mA per contact
Overvoltage protection 50VDC
Pulse output The first DO supports pulse output, pulse output frequency: 10Hz~300KHz
Software Protocols IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT
Protocol conversion Support Modbus TCP and RTU protocol conversion
Support Modbus RTU to MQTT and Modbus TCP to MQTT
Indicator light Power, Link, RS485_RXD, RS485_TXD, IO status
User configuration PC software configuration, support WIN XP, WIN 7, WIN 8, WIN 10
Map data bool: 300
16bit: 300
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Environment Working -20~70°C, 5~95%RH
Storage -40~85°C, 5~95%RH
Others Case Metal
Dimension 82mm×40mm×100mm
Protection grade IP30
Net Weight 450g
Installation DIN rail mounted, Wall-mounted
