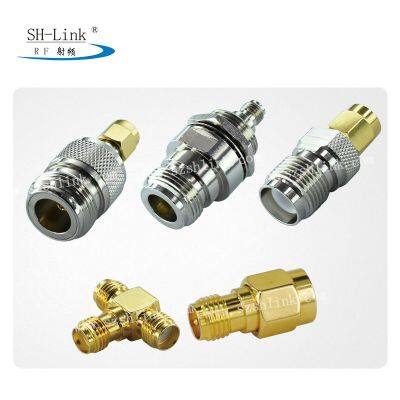

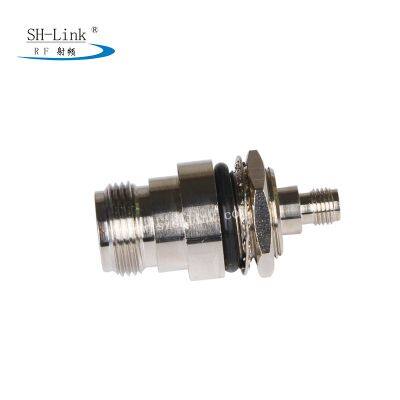

N Turn SMA Series RF Adapter 50 Ohm Female Connector Turn Female Connector Waterproof NSMA-50KKY-4
US$ 1.2 - 1.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
SH-LINK
Place of Origin:
China
Type:
Adapter
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
10 days
Related Products
-
N Male Connector to TNC Female Connector RF Coaxial Adapter N/TNC-50JKUS$ 1.2 - 1.5MOQ: 100 Pieces -
N-type RF Connector 50 Ohms Copper Nickel PlatedUS$ 1 - 1.5MOQ: 100 Pieces
-
L29 716 DIN-50KFD Four-hole Flange Connector Microwave ConnectorUS$ 3 - 4MOQ: 100 Pieces
-
Rf Connector of an SMB Flexible Cable Female Connector SMB-C-TK1.5-2US$ 0.6 - 0.7MOQ: 1000 Pieces
-
Microminiature Connector MMCX-C-K1.5-1US$ 0.5 - 0.6MOQ: 100 Pieces
Brand Name
SH-LINK
Place of Origin
China
Type
Adapter
Application
RF
Gender
Other, adapter
Main technical features:
Temperature range: 5-55 - +155℃ (PE Cable-40 - +85℃)
Characteristic impedance: 50Ω、75Ω
Frequency range: DC-4GHz
Operating voltage: 500V r.m.s at sea level
Pressure resistance: 1500V r.m.s at sea level
Contact impedance: ≤1.5mΩ between inner conductors ≤1 mΩ between outer conductors
Insulation resistance: ≥5000MΩ
Inner conductor holding force: ≥0.57N
Insertion loss: ≤0.30dB/3GHz
Voltage standing wave ratio: Straight type ≤1.22/3GHz Curved type ≤1.30/3GHz
Durability: ≥500 Cycles
