Urethane Covered Wire Mesh Coil Wrapper Belt

Urethane Covered Wire Mesh Coil Wrapper Belt photo-1

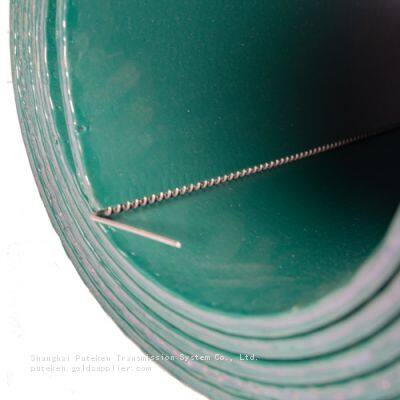

Urethane Covered Wire Mesh Coil Wrapper Belt photo-2

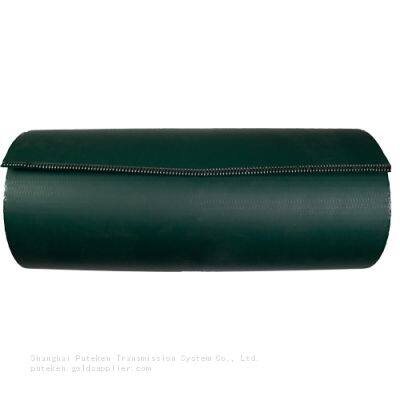

Urethane Covered Wire Mesh Coil Wrapper Belt photo-3

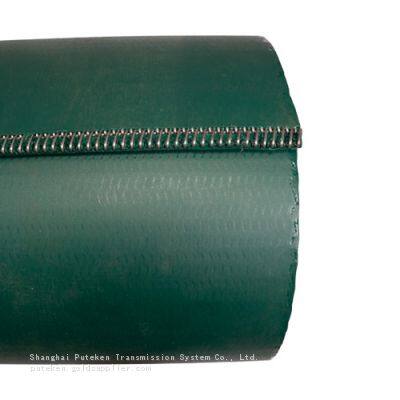

Urethane Covered Wire Mesh Coil Wrapper Belt photo-4

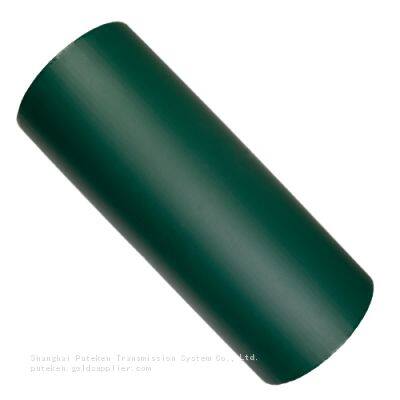

Urethane Covered Wire Mesh Coil Wrapper Belt photo-5
US$ 200 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Puteken
Place of Origin:
China
Material:
PU
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Brand Name Puteken
Place of Origin China
Material PU
Type Flat Belt
Standard or Nonstandard Nonstandard

Urethane covered wire mesh coil wrapper belt is produced with stateliness steel wire mesh covered PU . This design combines the strength and durability of stainless steel wire mesh with the protective properties of polyurethane coating.

The combination of stainless steel wire mesh and polyurethane coating creates a durable and long-lasting life service suitable for demanding industrial environments. The polyurethane cover minimizes the need for frequent maintenance and replacement, lessening total maintenance costs. The belt capable of handle a wide range of coil thickness and materials.

As a leading coil wrapper belt factory, Puteken coil wrapper belt has exported to many steel and aluminium factory and got high feedback from our customers. We strive to continuously offer stable products quality and best service for our clients.

MaterialSurface: TPU, Glossy
Bottom: TPU, Glossy
ColorSurface: Dark green
Bottom: White
Tension Material304 L stainless steel wire mesh
Thickness8~12MM ±0.5MM
HardnessSurface: 92 shore A
Bottom: 85 shore A
Force Elongation70N/MM at 1%
130N/MM at 2%
Ultimate Tensile Strength350N/MM
Friction CoefficientSurface with steel/aluminium: 0.82/0.67
Bottom with steel/aluminium: 0.66/0.48
Maximum Speed380 m / min
Peeling StrengthTPU and fabric layer  14N/MM
Working Temperature-20 ℃ -90 ℃
Minimum Pulley DiameterForward: 85mm
Reversal: 110mm


Product Tags: coil wrapper belt , belt wrapper belt , solic woven wrapper belt
