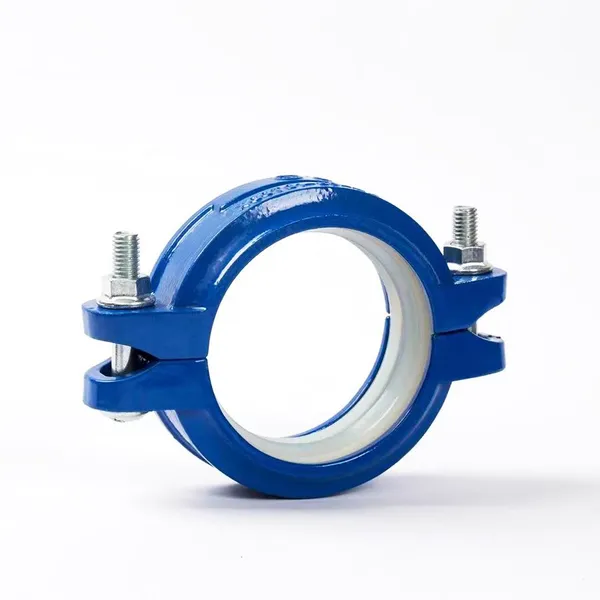

Help CenterGrooved Rigid Coupling
Related Products
Features:
Code：XGQT01
Size: 1''-12''(DN25-DN300)
Material: Ductile iron ASTM A536, 65-45-12
Dimension: ISO6182、AWWA C606、GB 5135.11
Connection：ASME B36.10、ASTM A53-A53M、ISO 4200
Thread: If have ISO 7-1,BS 21,BSPT, NPT,ASME B1.20.1
Pressure Rating: 175PSI-500PSI
Surface Treatment: Red Painting,Epoxy Coating ,Hot-Dip Galvanized,Electroplated
Bolt & nut: ASTM A449/ CLASS 8.8/ ISO 898
Gasket: EPDM, Nitrile, Silicone rubber, etc.
Certificate: UL Listed / FM Approved
Application: Fire Protection,Waterworks,HVAC,Plumbing,GAS,Irrigation,or other piping systems
PRODUCTS DETAILS:
DI Grooved Pipe Fittings are a new type of steel pipe connection fittings, also called clamp connections, which have many advantages. The design specification for automatic sprinkler system proposes that the connection of system pipes should adopt grooved connectors or threaded, flanged connections; pipes with a diameter equal to or greater than 100mm in the system should use flanges or grooved connectors in sections connect.
Grooved Pipe fittings include two broad categories of products:①The pipe fittings that play the role of connection and sealing include rigid joints, flexible joints, mechanical tees and grooved flanges; ②The pipe fittings that play the role of connection transition include elbows, tees, crosses, reducers, blind plates, etc.
The grooved fittings for fire fighting system used for connection and sealing are mainly composed of three parts: sealing rubber ring, clamp and locking bolt. The rubber sealing ring on the inner layer is placed on the outside of the pipe to be connected, and matches the pre-rolled groove, then buckle the clamp on the outside of the rubber ring, and then fasten it with two bolts. Due to the unique sealable structural design of the rubber sealing ring and the hoop, the grooved joint has good sealing performance, and the sealing performance is enhanced correspondingly with the increase of the fluid pressure in the pipe.
