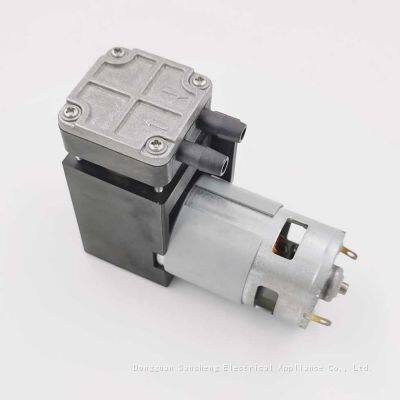

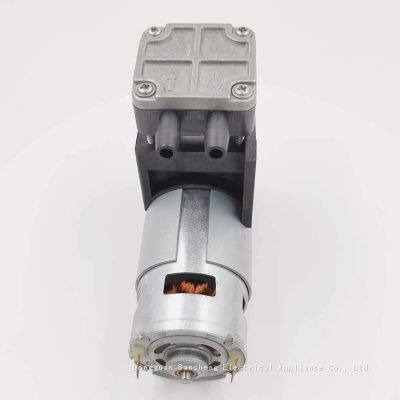

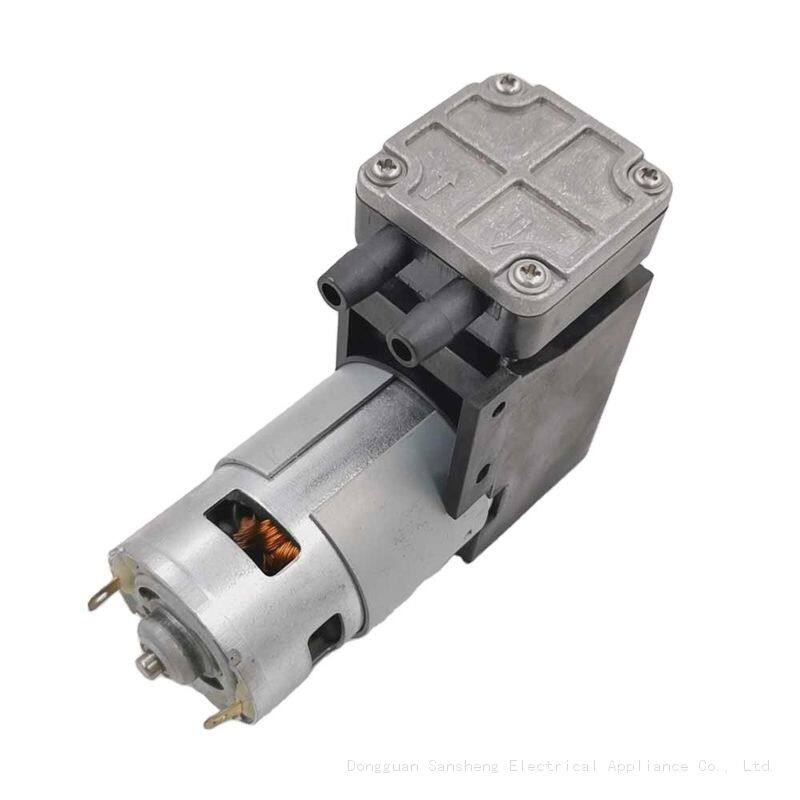

AIRJET High Flow 50LPM Air Pump DC 24V Electric Vacuum Pump -85KPA Carbon Brushed Motor Assembled Piston Pump DH7 Series High Pressure 600KPA Air Compressor

Features

• High vacuum and large flow rate.

• Strong adaptability to environment.

• High quality and exellent performance.

• Energy saving and high efficiency.

• No leakage and smooth operation.

• Strong suction and high vacuum.

• High pressure.

• Innovative designs and easy installation.

• High temperature performance, good consistency

• Oil resistance and easy installation

• DC brushed motor assembled

• Durable and long life span over 2000hours, low heat.

• Heavy duty work for 24 hours and Continuous operation

Application

• Electronic products,agriculture,finishing,light industry products

• Analytic-al instruments

• Chemical and production engineering

• Various ancillary equipment

• Medical Electronics: Blood pressure; negative pressure wound therapy device; oxygen machine; breast pump; the suction machine; ICU monitor; ozone disinfection; etc.

• Household appliance: Vacuum fresh juice machine; coffee machine; automatic tea; fragrance machines; dryers; fragrant Irons etc.

• Health Massage: Massage chair; neck massage; aquarium; beauty device etc.

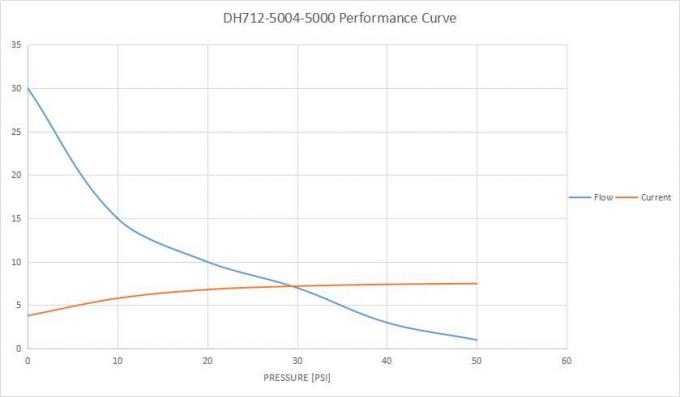

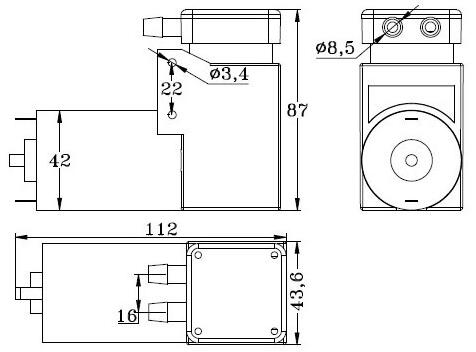

SPECIFICATIONS


Cautions

• Do not use this product beyond the limit specified in this specification.

• When using the brushless motor, be noted that the input power should be constant pressure and filtering.

• Keep the inlet and outlet clean and smooth , no solid particles.

• May contain a small amount of water, not solid foreign objects into the pump body.

• In inlet and outlet of the non-clean,please install air intake filters.

• The specification of this product is only for your reference

• The specific  details should check the real products.

• Products should be made according to customer’s request within the permitted range.

• Non-professional person should not disassemble this product.

• Long service life at room temperature environment.

• Can supply a variety of certifications according to customer’s requests.

• Please ensure the input voltage meets the specification and make sure the power polarities are connected properly.

• Connect a filter to the inlet to block dust, fiber,water drops when the operational environment is worse.

• Use φ4 silicone tube and Connect a silencer to the outlet for noise reduction purpose.

• Make ventilation holes or slots on the bottom or side of device housing for heat dissipating is strongly recommended.

• Use a piece of thick sponge or foam to wrap the pump for installation would reduce noise and vibration.

• To extend the life time, Suggest to design a control circuit include a pressure sensor to let the pump work in intervals.

• Pack and Store the pump well in clean, temperature and humidity controlled place to avoid rusting of motor.
