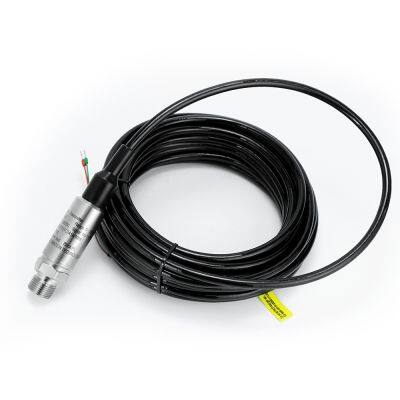

PWP350-X intrinsically safe pressure transmitter/transducer is designed to be used in hazardous environments, especially for the high standard requirements of industrial oil and gas sections applications. It has explosion proof Ex ia IICT6 ATEX approved.
The pressure transmitter is with 316L stainless steel diaphragm and fully welded stainless steel housing, features a high resistance to the vibration , moisture ingress and pressure spikes. Additionally, this pressure transmitter is IP68 waterproof rated. The fully sealed structure makes it ideal for installation in a hazardous environment.
Applications:
· Oil & Gas
· Refineries and petrochemical industry
· Natural gas compressors
· Drilling platforms and pipeline
· Marine and vessel approved
· Diesel tank level monitoring
· Harsh and hazardous application
Features:
· Imported chip, 0.25%F.S.
· Strong shock and erosion resistance
· IP68 waterproof protection
· Ex ia IICT6, ATEX approved
· High EMC/EMI protection
· 316L stainless diaphragm, welded SUS316L body construction
Specification | |
Model |
PWP350-X |
Pressure Type |
Relative (gauge) /Absolute pressure/Sealed gauge pressure |
Pressure Range |
-0.1MPa ... 0kPa~10kPa …100MPa |
Safe Overload |
≤200%FS( |
Burst Pressure |
≤300%FS |
Electrical Connection |
Directly outlet cable |
Waterproof |
IP68 |
Accuracy |
±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional |
Signal Output |
4-20mA/0.5-4.5V/0-5V/0-10V/I2C/RS485 |
Power Supply |
12-30VDC/4-6VDC/6-24VDC/12-30VDC/3.3-5VDC/5-30VDC |
Response Time |
≤3ms |
Medium Compatible |
Liquid compatible with ceramic and stainless steel SUS304, SS316L material |
Long-term Stability (%FS/year) |
≤0.1 for 0.1%FS; ≤0.2 for 0.25%FS; ≤0.5 for 0.5%FS |
Compensation Temp. |
0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa) |
Working Temp. |
-40℃~+85℃ |
Storage Temp. |
-40℃~+85℃ |
Body Material |
SUS304 stainless steel, optional 316L |
Service Life |
>10 million load cycles (within measurement range) |
Explosion Proof |
Exia II CT6 |
Pressure Connect Port |
G1/4” male, 1/4”NPT male, G1/2”male, 1/2” NPT male, M20x1.5 male |
