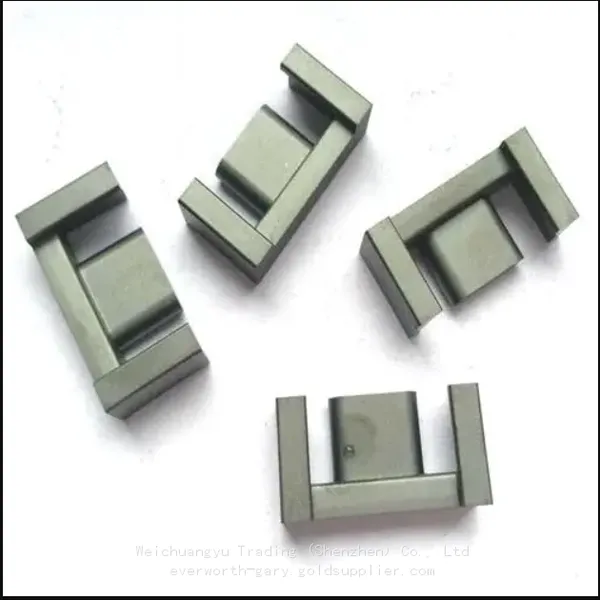

Help CenterFERROXCUBE Ferrite Cores E22/6/16/R-3C94-P，PLT22/16/2.5-3C94/TX/TC/RM/PQ/EE
Related Products
-
FERROXCUBE Ferrite Cores/Magnet Ring RM8/I-3C90,RM10/I-3C94,3C96,3F36,3F46,3E27US$ 0.1 - 0.12MOQ: 100 Pieces -
FERROXCUBE Ferrite Cores/Magnet Ring PQ35/27-3C95,3C94,3C96,3C97，3C98US$ 0.45 - 0.48MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores/Magnet Ring PQ26/20-3C95,3C94,3C96,3C97,3C98,3C90.3C92US$ 0.13 - 0.15MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores/Magnet Ring EP10/EP7/EP5/EP13-3C95,3C94,3C96,3C97,3C98,3C90US$ 0.1 - 0.12MOQ: 100 Pieces
-
FERROXCUBE Ferrite Cores/Magnet Ring ETD49/25/16-3C95,3C94,3C96,3C97,3C98,3C90.PC44.PC40US$ 1 - 1.15MOQ: 100 Pieces
EVERWORTH represents the following brands:
1.Ferrite Core: Ferroxcube, MAGNETICS,DMEGC,EPCOS/TDK,ARNOLD,Laird,ACME,Fair-Rite,CSC；
2. Thin film capacitors:FEIDA, Japan OKAYA (discharge tube, filter, surge protector, X2 capacitor);
3. Bobbin: FERROXCUBE,SHULIN
4. Customize high-frequency and low-frequency transformers, wound inductors, etc;
Material properties:
3C91 3000 370 220 is an intermediate frequency power material with low power loss around 60 ° C, used for power supplies and general transformers with frequencies up to 0.33 MHz
3C92 1500 460 280 is a low-frequency, high Bsat power material used for output chokes and power inductors with frequencies up to 0.2 MHz
3C94 2300 380 220 is a low-frequency power material used for power supplies and general transformers with frequencies up to 0.3 MHz
3C95 3000 410 215 is a medium low frequency power material with low power loss in the range of 25 to 100 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3C96 2000 440 240 Medium low frequency power materials for power supplies and general transformers with frequencies up to 0.4 MHz
3C97 3000 410 215 is a medium low frequency power material with low power loss in the range of 50 to 140 ° C, used for power transformers with frequencies up to 0.4 MHz. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile/handheld devices.
3F36 1600 420 230 is a medium to high frequency power material used for power supplies and general transformers with frequencies ranging from 0.3-1 MHz. Low power loss in the range of 25 to 100 ° C. Specially suitable for applications with a wide temperature range, such as automobiles, lighting, and mobile handheld devices.
3F4 900 350 220 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz
3F46 750 430 280 is a high-frequency power material used for power supplies and general transformers with frequencies of 1-3 MHz. The temperature characteristics have been adjusted and can operate stably within the range of 25-100 ° C. The product size is 40mm larger
4C65 125 340 350 Low permeability NiZn ferrite for RF tuning, broadband, and balun transformers
Send Inquiry to This Supplier
