Brand Name
Hongqiao
Place of Origin
China
Model Number
JZ Series

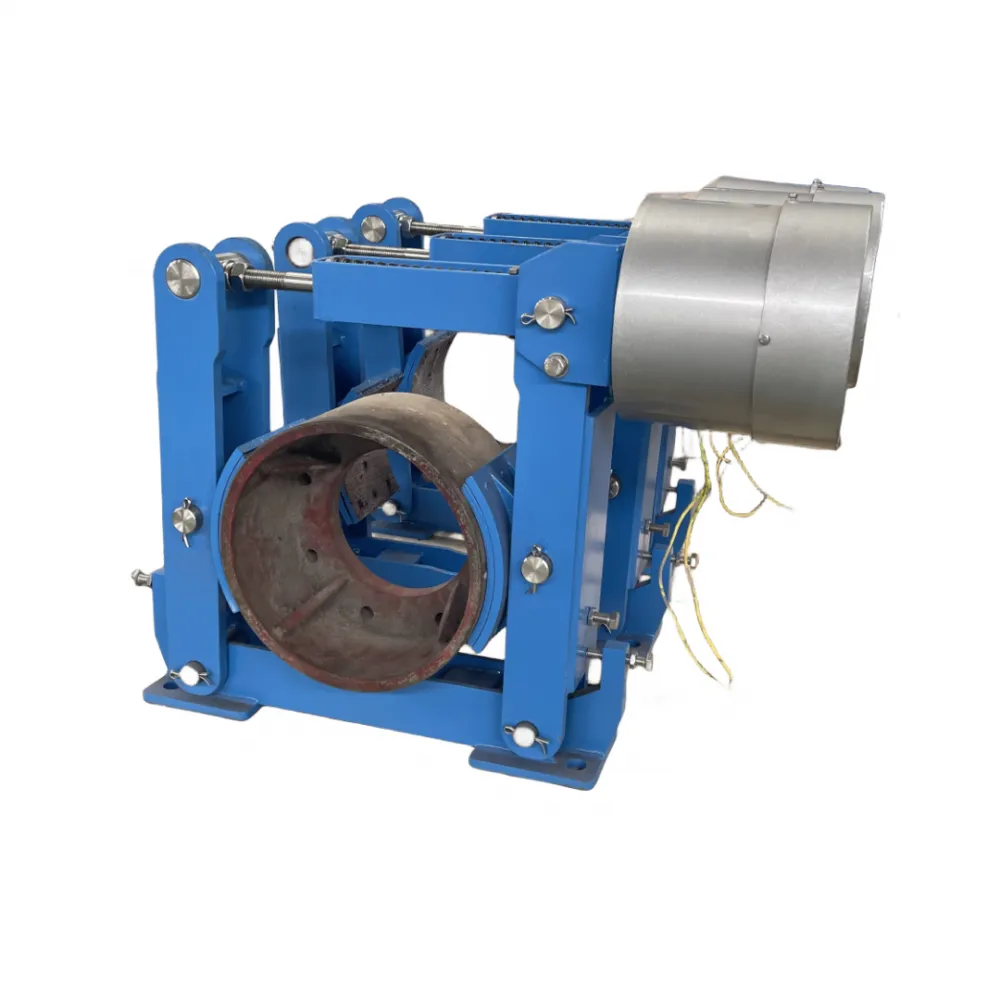

To serves well to operational process in low consumption, the JZ series shows an outstanding frequency of quickness and high specificity. For this reason, it constitutes the core of operating discipline with respect to hot sell.
Dimension table (mm)
Type | A | b | D | d | E | F | G | H | h1 | i | K | M | P | n | G1 |
JZ-100 | 230 | 70 | 100 | 13 | 165 | 75 | 125 | 300 | 100 | 40 | 110 | 145 | 132 | 6 | 45 |
JZ-200 | 290 | 80 | 200 | 17 | 215 | 100 | 208 | 435 | 170 | 60 | 175 190 | 126 | 132 | 8 | 108 |
JZ-300 | 385 | 140 | 300 | 22 | 295 | 130 | 290 | 600 | 240 | 80 | 250 270 | 160 | 167 | 10 | 140 |
JZ-400 | 505 | 180 | 400 | 22 | 350 | 180 | 350 | 782 | 320 | 130 | 325 | 210 | 243 | 12 | 190 |
JZ-500 | 577 | 200 | 500 | 22 | 490 | 200 | 405 | 950 | 400 | 150 | 380 | 250 | 243 | 16 | 225 |
JZ-600 | 675 | 240 | 600 | 26 | 560 | 220 | 500 | 1160 | 475 | 170 | 475 | 305 | 271 | 18 | 250 |
Note: The right to change the specific model, structure and size.
