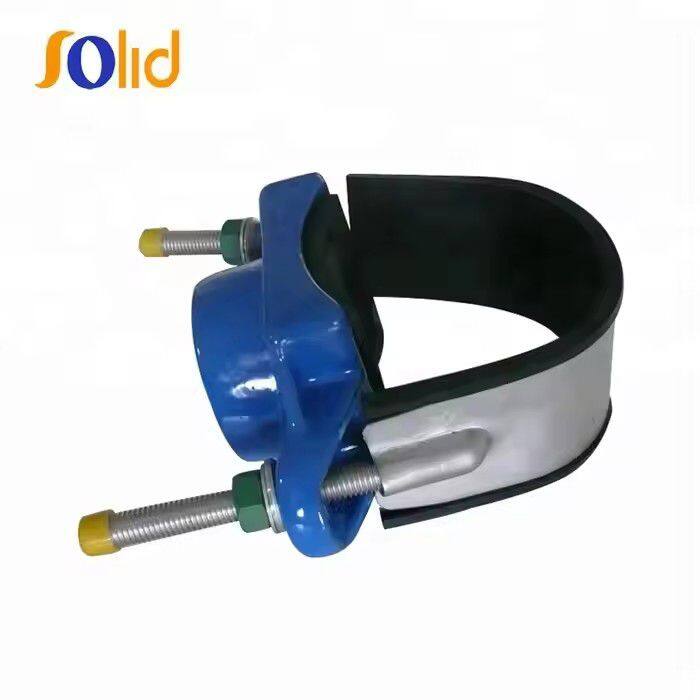

1.6 Mpa Rubber Sleeve Pipe Joint Sleeve Pipeline Ductile Iron Water Pipe Leak Band Repair Clamp With Dci Jaw

Product features:

1,The main band type of repair clamp are cast iron pipe,steel,cement tube,PE,PVC,glass steel tube and so on many kinds of pipeline rupture,perforation,and all kinds of crack damage provides a quick and economic repair method can greatly reduce material and labor costs.

2,This product installation convenient,quick,need only one person,a wrench can easily finish pipe repair,no longer needs a large number of workers,can need not stopped completely,not replace pipe pressure of piping of fast repair,the circular arc of the degree requirements for pipe low.

3,The stainless steel material,have anticorrosive,high toughness,hardness and other characteristics.

4,Band type of repair clamp have Double sealing ring,aft into tapered,as long as it is within the scope of arms hoop size,where all can realize effective overlap,uniform seal.Sealing ring sruface for fine mesh,can adapt to rough,the irregular surface porous pipes,around the entire pipeling sealing circle form effective.

5,This product use the card buckle type connection mode,and the product scope biggest suitable diameter can be up to 30 mm,can greatly reduce inventory,the product specification can be from DN1500-repair width can be up to 2000mm,almost can meet the size of pipe.

for the stainless steel repair clamp
1),clamp body: stailess steel SS 304 .
2),bolts and nuts:stailess steel SS 304 .
3),rubber:NBR/EPDM .
4), Locking washer palte, Lugs,Receiver bars, Armour: stainless steel 304
5),Work pressure:PN6-PN10
6),packing:wooden cases

for the DI repair clamp
1),clamp parts castings : Ductile iron GGG500-7 with fusion bonded epoxy coating
2),bolts and nuts : Carbon steel , Grade 4.8 , zinc plated .
3),rubber:EDPM .
4),clamp body:Stainless steel SS304 .
5),Work pressure:PN16
6),packing:wooden cases
