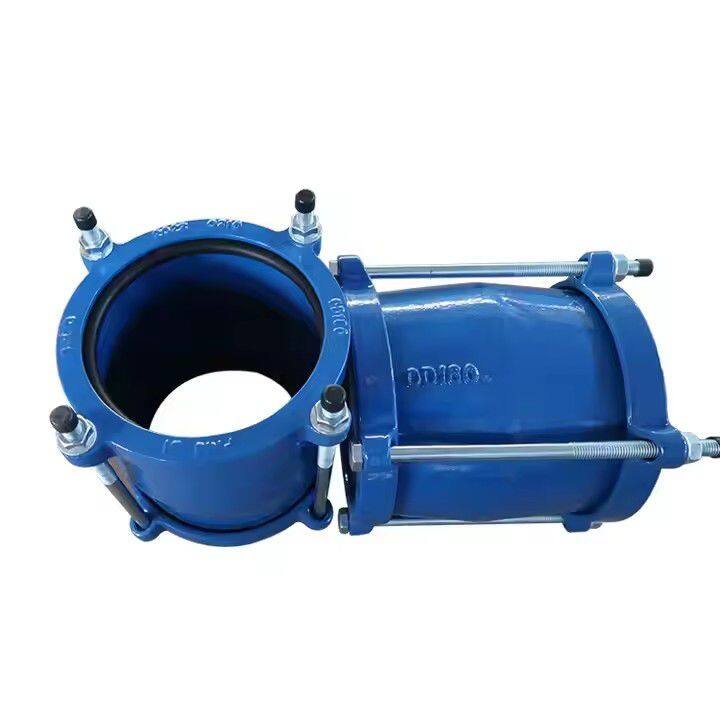

Blue Epoxy Coated Mechanical Dresser Coupling Gibault Joint for PVC Pipe
US$ 600 - 800
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin
Delivery Detail:
30 days
Related Products
-
High Pressure Repair Clamp HRC Pipe Repair ClampUS$ 600 - 800MOQ: 1 Ton -
Stainless Steel SS Repair Coupling Water Pipe Repair Clamp for Cast Iron PipeUS$ 600 - 800MOQ: 1 Ton
-
Multi-Function Double-Section Stainless Steel Quick Release Pipe Coupling Repair ClampsUS$ 1800.00 - 2300.00MOQ: 1 Ton
-
Cast Iron Gibault Joint for PVC PipeUS$ 1800.00 - 2300.00MOQ: 1 Ton
-
1.6 Mpa Rubber Sleeve Pipe Joint Sleeve Pipeline Ductile Iron Water Pipe Leak Band Repair Clamp With Dci JawUS$ 1800.00 - 2300.00MOQ: 1 Ton
Brand Name
SOLID
Place of Origin
China
Gibault joints
This joints are a coupling designed to provide an efficient and economical mechanical joint for white PVC and AC sized pipes.
The Standard Gibault joint is designed to join/repair pipeline materials and fittings that are relatively inert, ie. Ductile Iron, Cast Grey Iron, Asbestos Cement. The sleeve length of the Standard Gibault joint sleeve is relative to the material it has been designed to join. When joining/repairing pipelines of different material it is strongly recommended that an Elongated or SWB Gibault joint be utilised.
Feautures:
Ductile iron with FBE coated.
PN10, PN16 Working pressure.
Equipped with galvanized steel bolts ,nuts
Otype EPDM or NBR rubber seals
Size :63-315MM
| Dimensions(mm) | |||||
| Item No. | Size | Bolt | A | H | |
| L | QTY | mm | mm | ||
| 1 | 63 | 160 | 2 | 125 | 147 |
| 2 | 75 | 160 | 2 | 125 | 147 |
| 3 | 90 | 160 | 3 | 125 | 165 |
| 4 | 110 | 180 | 3 | 145 | 185 |
| 5 | 125 | 180 | 3 | 145 | 200 |
| 6 | 140 | 180 | 4 | 145 | 215 |
| 7 | 160 | 220 | 4 | 185 | 236 |
| 8 | 180 | 220 | 4 | 185 | 255 |
| 9 | 200 | 220 | 4 | 185 | 276 |
| 10 | 225 | 230 | 6 | 185 | 285 |
| 11 | 250 | 230 | 6 | 185 | 340 |
| 12 | 280 | 230 | 6 | 185 | 345 |
| 13 | 315 | 230 | 6 | 185 | 352 |
