Help CenterDouble Suction Centrifugal Pump 250S39/250S65 Mechanical Seal With Stainless Steel and Hard Alloy Material
Related Products
-
External Mechanical Seal GF-12-14-16-18-22-32-36 Applicable for ZDLF/QDLF/CDLF Vertical Multi-stage PumpUS$ 80 - 200MOQ: 1 Piece -
Silicon Carbide Graphite Spring Mechanical Seal ZS-20-22-24-32-33-38-40-45 Used for Clean Water Pump Chemical PumpUS$ 120 - 150MOQ: 1 Piece
-
ZU44-35 Stainless Steel Hard Alloy Large Spring Mechanical Seal Used for Double Suction Pump, Multi-stage Pump, Clean Water PumpUS$ 150 - 300MOQ: 1 Piece
-
ZCMS2102-65 Rubber Bellows Mechanical Seal and ZCMSTJ-0650-K-6 Silicon Carbide & Graphite Mechanical SealUS$ 200 - 250MOQ: 1 Piece
-
ZCMSAK5M-38-48-53-65-90 Mechanical Seal With Stainless Steel and Silicon Carbide Used for Pulp PumpUS$ 120 - 150MOQ: 1 Piece

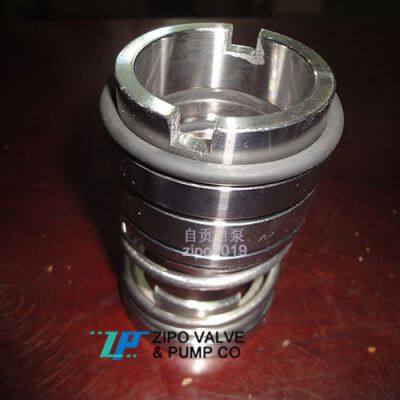

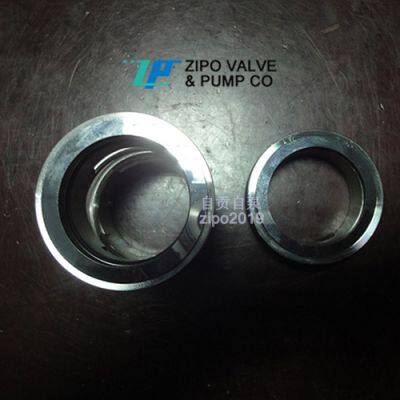

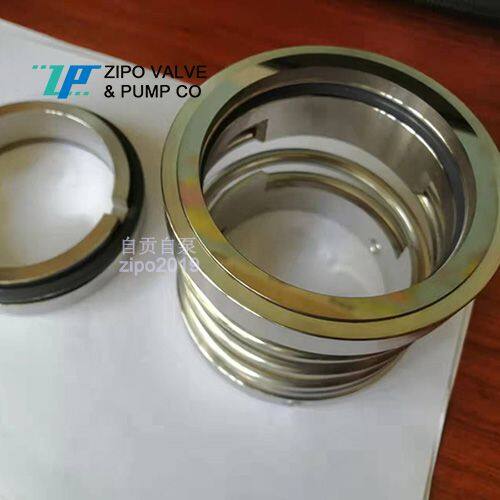

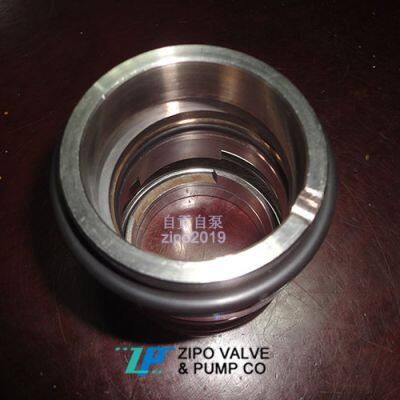

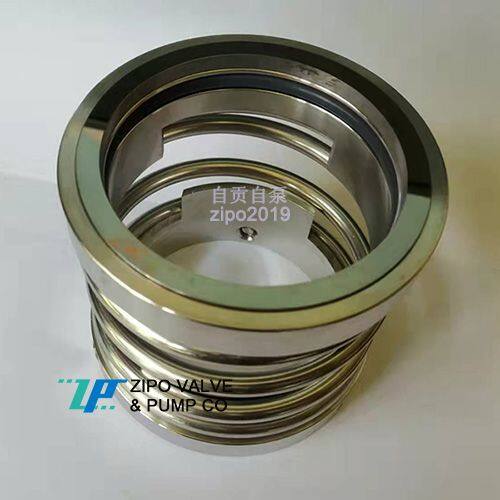

Double suction centrifugal pump 250S39/250S65 mechanical seal with stainless steel and hard alloy material
The above prices are reference prices, and the prices of different models may vary. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)758
Structural features: Single end non-equilibrium type
Main material: 2Cr13 304 316 optional
Sealing surface material: graphite ceramic alloy, silicon carbide optional
Auxiliary sealing: Fluorine rubber, silicone, nitrile, optional
Scope of application: media similar to clean water
Operating parameters: Pressure: ≤ 1.0MPa Temperature: -20~180 ℃
Common double suction pump models include 100ZS90150ZS50150ZS78150ZS100200ZS42200ZS63200ZS95200ZS125250ZS14250ZS24250ZS39250ZS65300ZS12300ZS16300ZS32300ZS58300ZS90350ZS16350ZS26350ZS44350ZS75350ZS125500ZS13500ZS22500ZS35500ZS59500ZS98600ZS22600ZS32600ZS47600ZS75.
6SH-6, 6SH-9, 8SH-6, 8SH-9, 8SH-13, 10SH-6, 10SH-9, 10SH-13, 10SH-19, 12SH-6, 12SH-9, 12SH-13, 12SH-19, 12SH-28, 14SH-6, 14SH-9, 14SH-13, 14SH-19, 14SH-28, 16SH-9, 20SH-6, 20SH-9, 20SH-13, 20SH-28 , 24SH-6, 24SH-9, 24SH-13, 24SH-19, 24SH-28
Manufacturer: ZIPO VALVE & PUMP CO., LTD
