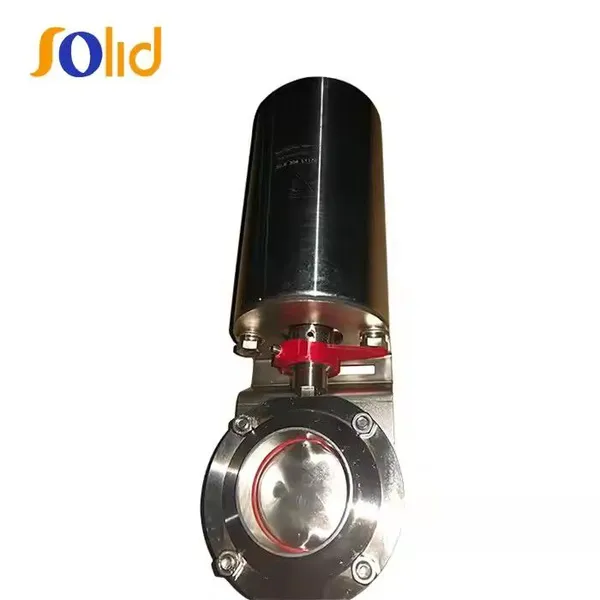

Stainless Steel Sanitary SS304/SS316 Butterfly Valve With Pneumatic Actuator
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
150 Lbs - 1500 Lbs Cast Steel API Globe Valve Forged 14" Carbon Steel Globe Valve With GearNegotiableMOQ: 1 Ton -
API/BS ASTM A216- Grade WCB Class 150 Class 300 Cast Steel Swing Check ValveNegotiableMOQ: 1 Ton
-
API A216 WCB/ Carbon Steel/Cast Steel/CF8/stainless Steel Swing Check Valve 150LBNegotiableMOQ: 1 Ton
-
ASTM A216 WCB Stainless Steel Dual Plate Inline Wafer Single Disc Check ValveNegotiableMOQ: 1 Ton
-
BS 5352 Hot Sale Class 800 Carbon Steel A105 Forged Steel Threaded NPT End Swing Check ValveNegotiableMOQ: 1 Ton
Name: Butterfly valve
Specification:
Material: AISI304, AISI316L
Specification: DN15-DN200
Standard: ISO, DIN, 3A, etc
Maximum: 1.0Mpa(10bar)
Model of drive: Manual, Electric, Pneumatic
Connection: Welded, Clamped, Threaded, Flanged
Working Principal: Manual operation or driving device operation
Actuating device: Normally closed, Normally opened, opened and closed by two air flues separately
Electric drive: (DC)12V, 24V, 36V (AC)220V, 380V
Sealing Material: Silicon rubber, EPDM or FPM
Application: Dairy, Beverage, Food, Beer, Pharmacy, Biotechnology, Cosmetic etc.
| Size | O | G | A | Dc | H | H1 |
| DN15 | 78.0 | 34×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN20 | 78.0 | 44×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN25 | 78.0 | 52×1/8 | 66.0 | 85.0 | 222.5 | 180.5 |
| DN32 | 88.0 | 58×1/8 | 70.0 | 85.0 | 226.5 | 180.5 |
| DN40 | 90.0 | 65×1/8 | 74.0 | 85.0 | 228.5 | 180.5 |
| DN50 | 106.0 | 78×1/8 | 76.0 | 85.0 | 236.5 | 180.5 |
| DN65 | 124.0 | 95×1/8 | 84.0 | 85.0 | 245.5 | 180.5 |
| DN80 | 139.0 | 110×1/4 | 90.0 | 85.0 | 253.0 | 180.5 |
| DN100 | 159.0 | 130×1/4 | 105.0 | 85.0 | 263.0 | 180.5 |
| DN125 | 185.0 | 160×1/4 | 130.0 | 133.0 | 415.5 | 296.0 |
| DN150 | 215.0 | 190×1/4 | 150.0 | 133.0 | 430.5 | 296.0 |
