12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management

12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management thumbnail-1
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management thumbnail-2
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management thumbnail-3
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management thumbnail-4
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management thumbnail-5
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management photo-1
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management photo-2
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management photo-3

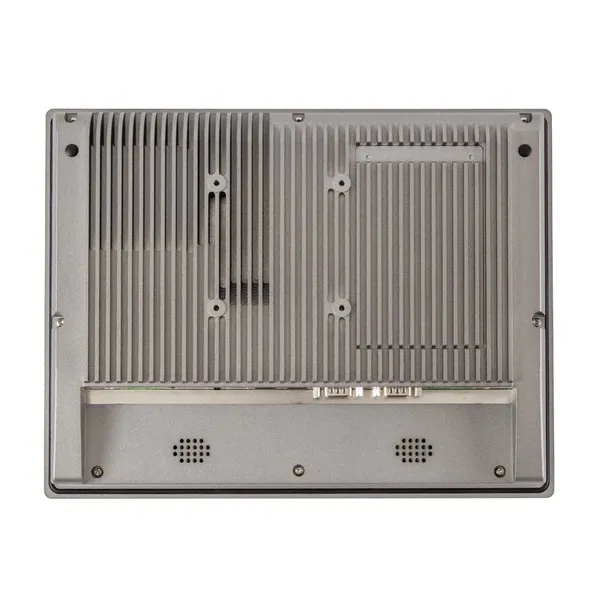

12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management photo-4
12.1-inch 1024x768 4:3 Industrial Panel PC Touchscreen Cordless Board Design for Intelligent Management photo-5
US$ 380 - 550 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Bosten
Model Number:
PPC-1201
Type:
Panel PC
Contact Supplier Request Quote Chat Now
Shenzhen Bosten Technology Co., LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bosten
Model Number PPC-1201
Type Panel PC
Products Status Stock
Specification
Mainboard
CPU
Intel® Celeron J1900, quad core, 2.0GHz, fanless
RAM
2GB/4GB/8GB/16GB
SSD
32GB/64GB/128GB/256GB/512GB
Screen
Panel size
13.3-inch
Resolution
1920*1080 16:9
Brightness
400nits (cd/m²)
Touchscreen
10 points Capacitive Touch
5 wires Resistive Touch Optional
Power Supply
Working voltage
9V-36V wide voltage

Enclosure
Material
Aluminum Alloy
Color
Grey
VESA mounting
75x75mm
IP grade
Front panel IP65 waterproof

Environment
Temperature
Operating: -20 to 60°C, storage: -30 to 70°C
Relative humidity
10%~90% @ 30° C, non-condensing
Dimension
Net weight
4kg
Gross weight
5kg
Product size
34.04x22.41x4.742cm
Packing size
43.2*20.7*37.6cm

I/O Interfaces
3xUSB 2.0, 1xUSB 2.0, 1x built in USB SoftDog
2x DB-9 COM1& COM2, RS232/422/485
2x 3 wire COM3 & COM4 RS232/485 Phoenix terminal
2x 3 wire COM5 & COM6 RS232
1xPhoenix terminal remote switch interface
1x AT/ATX switch, 2x LAN
1x HD/Audio Line-out/ Power Button
1x 14 bit GPIO, 2x 8Ω 1W Amplifier out, 1x WIFI optional
Expansion Slot
MINI-PCIE x 1, on board SIM card slot, support 3G/4G module
MINI-PCIE x 1, support WIFI/ BT4.2

Watchdog timer
1~255 second Programmable Setting
OS
Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.
Mountings
Embedded mounting screws
Wall mounting brackets; Desk stand holder (optional)
Certificates
CE/RoHS/FCC
Warranty
2-year free warranty
CPU Available
Intel® Celeron J1900, quad core, 2.0GHz, fanless
Intel® Core I3-4005U, dual core, 1.7Ghz, fanless
Intel® Core I3-5005U, dual core, 2.0Ghz, fanless
Intel® Core I3-7100U, dual core, 2.3Ghz, fanless
Intel® Core I5-4200U, dual core, 1.6Ghz, fanless
Intel® Core I5-5200U, dual core, 2.2Ghz, fanless
Intel® Core I5-6200U, dual core, 2.3Ghz, fanless
Intel® Core I5-7200U, dual core, 2.5Ghz, fanless
Intel® Core I7-4500U, dual core, 1.8Ghz, fanless
Intel® Core I7-6500U, dual core, 2.5Ghz, fanless
Intel® Core I7-7500U, dual core, 2.7Ghz, fanless
