Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > ASTM A53 API 5L Round Black Seamless Carbon Steel Pipe and Tube

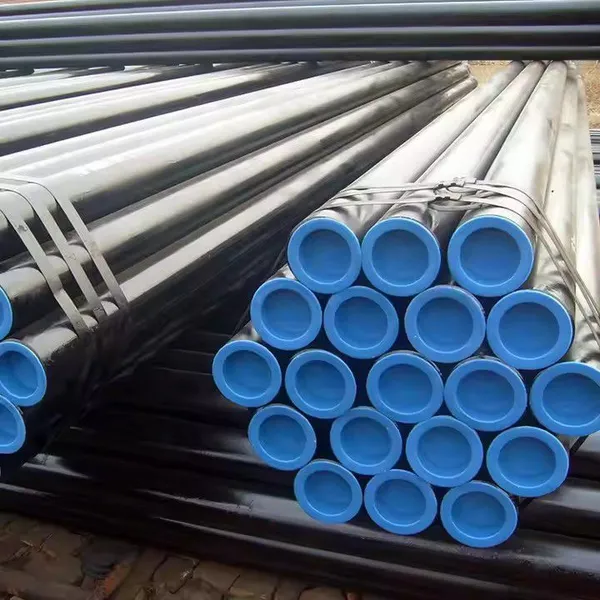

ASTM A53 API 5L Round Black Seamless Carbon Steel Pipe and Tube
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Thickness:
3, 20
Section Shape:
Round
Outer Diameter:
21.3, 273.1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carbon Steel Welding Electrode AWS E7018 Used on Both AC and DCNegotiableMOQ: 1 Ton -
AWS Eni-Cl Cast Iron Welding Rods/Wire/ElectrodesNegotiableMOQ: 1 Ton
-
Aws E309 Stainless Steel Welding Rod/Welding ElectrodeNegotiableMOQ: 1 Ton
-
ISO2531 K9, C40, C30, C25 6m High Quality DI Pipe Ductile Cast Iron Socket Spigot PipesNegotiableMOQ: 1 Ton
-
Ductile Pile Pipe For SaleNegotiableMOQ: 1 Ton
Thickness
3, 20
Section Shape
Round
Outer Diameter
21.3, 273.1
ASTM A53 Carbon Seamless Steel Pipe
Type: Seamless
Standard: API 5L, ASTM A333
Size: 2-3/8" to 20"
Finish: Plain, screwed
Application: Used in pump oil or gas
| N.D. | O.D. | SCH 10 | SCH 30/40 | ||||||||
| W.T. | NORMAL WEIGHT | W.T. | NORMAL WEIGHT | ||||||||
| (mm) | (INCH) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.30 | 0.840 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.70 | 1.050 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.40 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.50 | 1.68 |
| 32 | 1.1/4'' | 42.20 | 1.660 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.140 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.30 | 1.900 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.30 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73.00 | 2.875 | 3.05 | 0.120 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.80 |
| 80 | 3'' | 88.90 | 3.500 | 3.05 | 0.120 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.60 | 4.000 | 3.05 | 0.120 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.30 | 4.500 | 3.05 | 0.120 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.80 |
| 125 | 5'' | 141.30 | 5.563 | 3.40 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.30 | 6.625 | 3.40 | 0.134 | 13.85 | 9.30 | 7.11 | 0.280 | 28.29 | 18.99 |
| 200 | 8'' | 219.10 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.10 | 10.750 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
