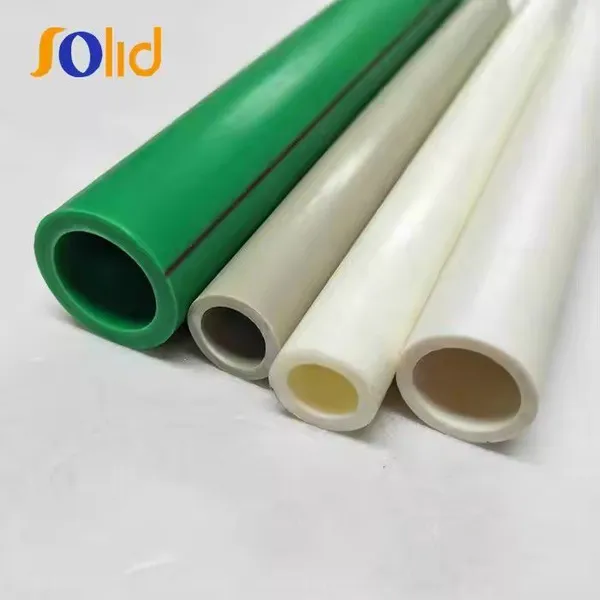

Material: PP-R ( Random Polypropylene )
Sizes: 20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm,160mm
Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Colors: light grey, white ,green or other colors on request
Standard: DIN8077/ 2008
Factory Certification: ISO15478
Applications: Cold or hot water supply, heating system, industrial liquids transportation
PN 1.25MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
|
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
20 |
1.9 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
3.0 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.4 |
63 |
5.8 |
7.1 |
8.7 |
10.5 |
75 |
6.9 |
8.4 |
10.3 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15.0 |
110 |
10 |
12.1 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
PP-R PIPES Features & Advantages:
1. Sanitization & Non-poison: This product is green building material which is able to use for pure clean drinking water pipe system. No heavy metal additives would not be covered with dirt or contaminated by bacterium.
2. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
3. Corrosion-Proof & Non-Fouling: Resist chemical matters or electron chemical corrosion. Able to avoid the pipe's fouling or blocking as well as the blemish, rust on basin and bath.
4. Heat Preservation & Energy-Saving: Excellent heat insulation features, minimal thermal conductivity which is only 0.5% of the conductivity of metal pipes.
5. Less Weight & High Strength: Its proportion is only 1/8th of metal pipe’s, with pressure-proof strength up to over 5MPa(50kg/sqcm),high tenacity and impact resistance.
6. Beautiful Appearance & Higher Flow Capacity: Smooth inner and outer surfaces, less flowing resistance, soft color and beautiful figure.
7. Easy and Reliable Installation: Using heat melting joint without sleeve wire, and taking few seconds for connecting and adopting good quality copper inserts to connect the metal pipe and basin.
8. Long Using Life: The pipe system can be used for over 50 years under normal condition.
9. PP-R is recyclable and environmental friendly.
