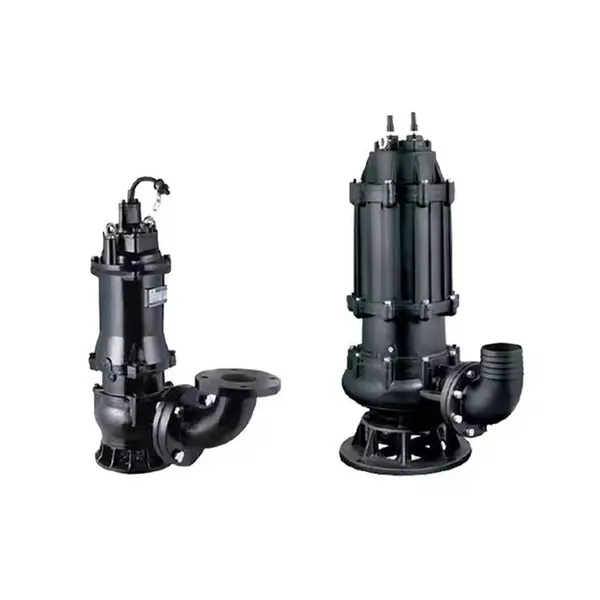

WQ series Domestic agricultural portable submersible sewage pump
Product features:New high efficiency and energy saving household water pump,health Environmental Protection, small volume, convenient to carry, Low noise, beautiful appearance, wear well and wide application,easy maintenance and long service life.
Usage: Agricultural irrigation and drainage, septic tank drains,domestic waste water, sewer cleaning and engineering drain contamination.It is used for pumping and delivering muddy water, grey water, domestic waste water, sewage feces and urine, and sewage and waste water containing short fiber, paper scraps, sediment and other solid particles.
Operating conditions: the electric pump should be able to work continuously under the following operating conditions: 1.The medium temperature shall not exceed 40℃. 2. The PH value of the medium is between 4 and 10; 3. The maximum density of the medium is 1.2×103kg/m3; 4. Power supply frequency is 50Hz, voltage is single-phase 220V, three-phase 380V, voltage fluctuation range is ±10% of the rated value; 5. The diving depth shall not exceed 5m.
Material: cast iron. Drive mode: motor.
Impeller structure: semi-open impeller
Model | Flow (m3/h) | Head (m) | Power (kW) | Voltage (V) | Frequency (Hz) | Speed (r/min) | OutletDia (mm) |
WQD6-16-0.75 | 6 | 16 | 0.75 | 220 | 50 | 2860 | 50 |
WQ6-16-0.75 | 6 | 16 | 0.75 | 380 | 50 | 2860 | 50 |
WQD8-18-1.1 | 8 | 18 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-18-1.1 | 8 | 18 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-16-1.1 | 8 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-16-1.1 | 8 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-26-1.1 | 8 | 26 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-26-1.1 | 8 | 26 | 1.1 | 380 | 50 | 2860 | 50 |
WQD10-16-1.1 | 10 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ10-16-1.1 | 10 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD12-18-1.5 | 12 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ12-18-1.5 | 12 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-18-1.5 | 15 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-18-1.5 | 15 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-20-1.5 | 8 | 20 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-20-1.5 | 8 | 20 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-15-1.5 | 15 | 15 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-15-1.5 | 15 | 15 | 1.5 | 380 | 50 | 2860 | 50 |
WQD30-10-1.5 | 30 | 10 | 1.5 | 220 | 50 | 2860 | 50 |
WQ30-10-1.5 | 30 | 10 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-40-1.5 | 8 | 40 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-40-1.5 | 8 | 40 | 1.5 | 380 | 50 | 2860 | 50 |
