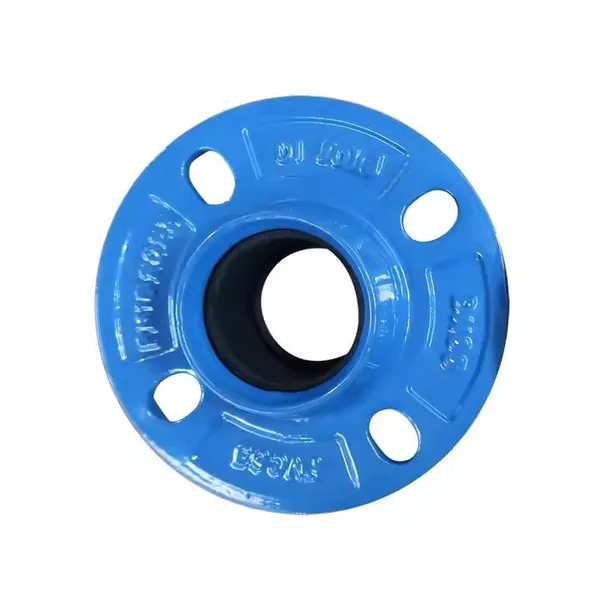

SOLID ISO2531 En545 Round Di Ductile Iron Quick Flange Adaptor for HDPE PVC PE Pipes
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Factory Size:
1,000-3,000 square meters
Total Employees:
11 - 50 People
Product Certifications:
ISO9001, ISO9000, ISO10441
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM/ODM Factory Ductile Iron Fittings Di Flange Coupling Adaptor Universal Flange AdaptorNegotiableMOQ: 1 Ton -
En545 Round Di Fittings Ductile Iron Quick Flange Adaptor for PVC PipeNegotiableMOQ: 1 Ton
-
Stainless Steel SS 304 316 Round Bar -Steel BarNegotiableMOQ: 1 Ton
-
Stainless Steel Angle Bar-Steel Angle Bar-Square BarNegotiableMOQ: 1 Ton
-
Factory Price Hexagonal Shape Rod Cold Drawn ASTM 304 316 Stainless Steel Hexagonal BarNegotiableMOQ: 1 Ton
Ductile Iron Quick Flange Adapter for PE/PVC PIPE
| PN10/16(Multi Flange Holes) | ||
| SIZE | PIPE OD | WEIGHT(Kg) |
| DN50 | 63 | 2.42 |
| DN60/65 | 75 | 3.08 |
| DN80 | 90 | 3.96 |
| DN100 | 110 | 4.40 |
| DN125 | 125 | 5.17 |
| DN125 | 140 | 5.28 |
| DN150 | 160 | 7.59 |
| DN200 | 200 | 10.56 |
| DN250 | 250 | 12.65 |
| DN300 | 315 | 15.07 |
| DN400 | 400 | 26.40 |
1.Material Specification:
| Body | Ductile Iron |
| Ring | Brass |
| Gasket | EPDM |
| Flange Drilling | PN10/PN16 |
| Coating | FBE |
2.Application:
DI QUlCK Flange Adaptor can be applied to Ductile Iron Pipe,Cast Iron Pipe,Steel Pipe,and ect..Brass Ring will fasten the pipe.Without Brass ring ,this kind of quick flange adaptor can be used for PVC Pipe.
3.Feature:
1.The quick adaptors only need the gasket or the gasket + copper ring, sliding into the end of the
connecting pipe socket to realize quick installation and connection.
2.Under certain conditions, it can replace universal flanged adaptor or Straight flanged adaptors, and the cost are lower, but the detachable performance is slightly worse.
