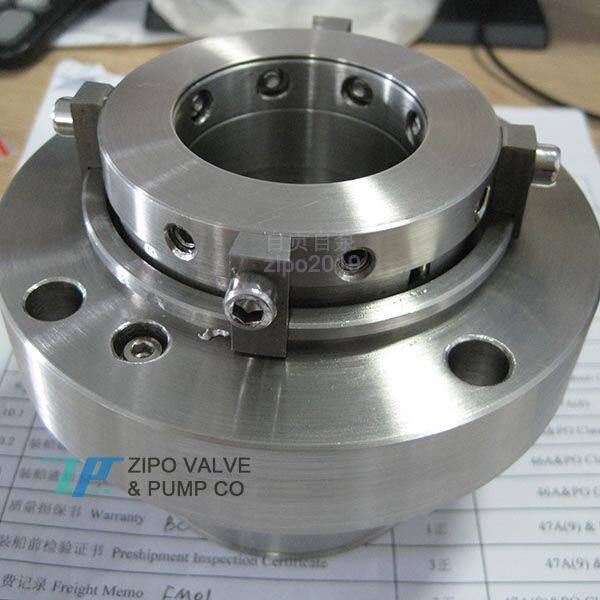

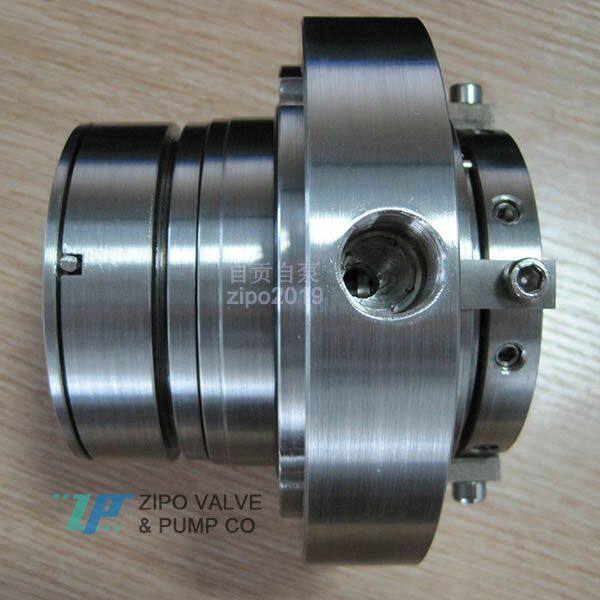

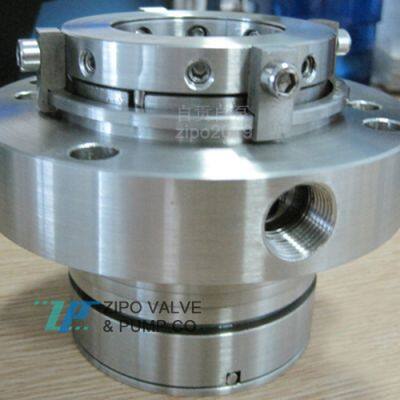

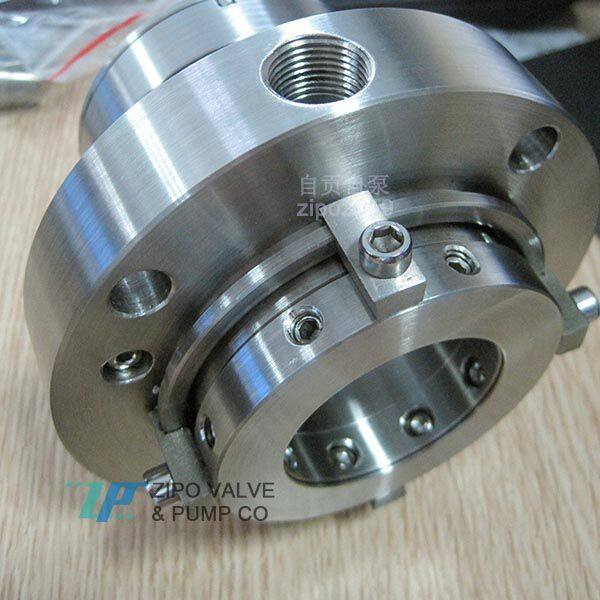

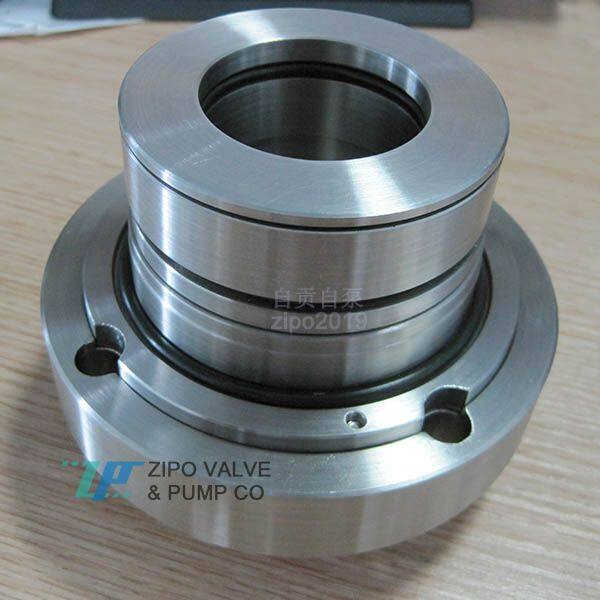

Axial flow pump or chemical pump 2205 stainless steel mechanical seal ZCMSDZWSW-045-U2U2VGG4-U2U2V2205
The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Structure: Double end face, containerized, multi spring, balanced,
Flushing plan: external cooling flushing water plan
Material: 2205+hard alloy. Other materials such as 304 316 2205 2507 TA2 TA10 can also be customized according to user requirements. (Material selection prompts: hard alloy resistant to particle and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)
Shaft diameter: 45mm
Applicable media: media with high impurity content such as salts, gypsum, lime slurry, etc.
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.
Suitable for the following forced circulation pump axial flow pump types
ZAPDWXHKMZ-250 ZAPDWQKMZ-250
Suitable for the following chemical pump types: HZCPJKGB50-32-250ABCI HZCPJKGB65-40-200ABCI HZCPJKGB65-40-250ABCI HZCPJKGB65-40-315ABCI HZCPJKGB65-50-125ABCI HZCPJKGB80-50-315ABCI HZCPJKGB80-50-400ABCI HZCPJKGB80-65-160ABCI
Manufacturer: ZIPO VALVE & PUMP CO., LTD
