Home > Industrial Equipment & Components > Engine & Part > Engine > BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly thumbnail-1
BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly thumbnail-2
BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly thumbnail-3

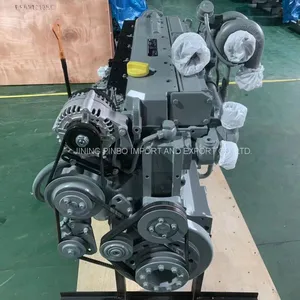

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly thumbnail-4
BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly thumbnail-5
BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly photo-1

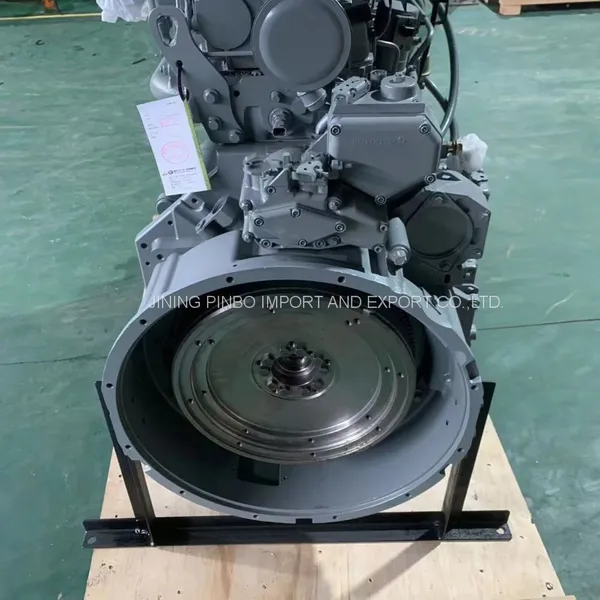

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly photo-2

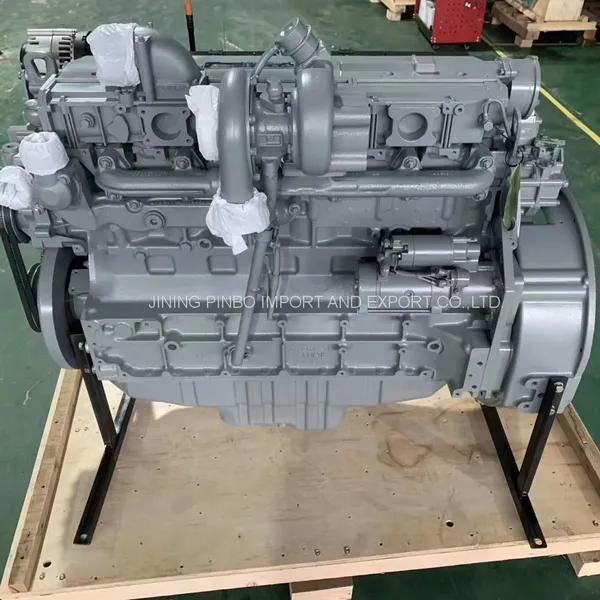

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly photo-3

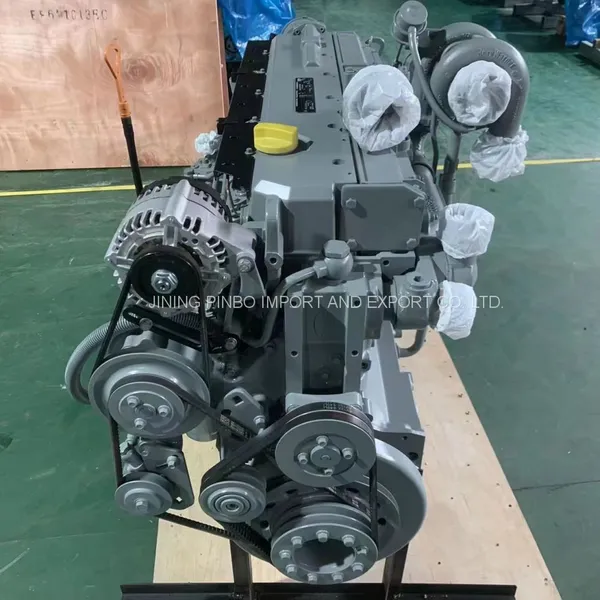

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly photo-4

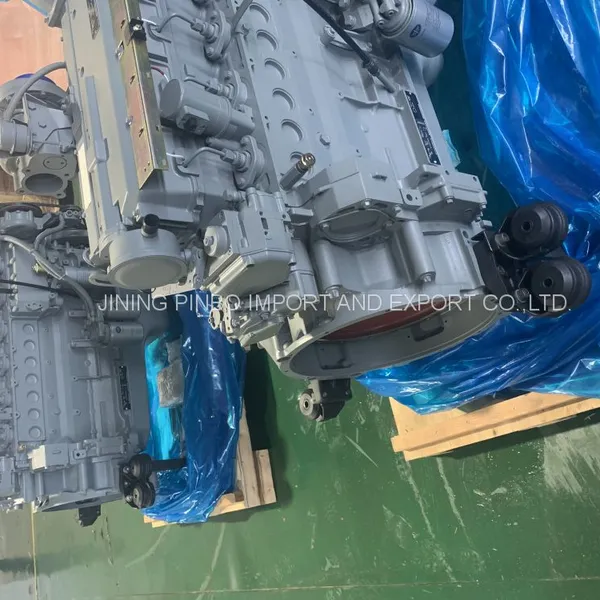

BF6M1013EC Engine Assy for Deutz Mechanical Engine BF6M1013EC 2300RPM 184hp Diesel Engine Assembly photo-5
US$ 6500 - 7500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Deutz
Place of Origin:
China
Model Number:
BF6M1013EC
Contact Supplier Request Quote Chat Now
Jining Pinbo Import And Export Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Deutz
Place of Origin China
Model Number BF6M1013EC
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 700kg
Dimension(L*W*H) 1300*800*1100mm
Condition New
Fuel Diesel
Start Electric Start
Cold Style Other, inter-cooled
Stroke 4 Stroke
Usage Other
Cylinder Multi-cylinder

Deutz 6 cylinder in-line diesel engine BF6M1013EC BF6M1013ECP BF6M1013FC Deutz engine


 BF4M1013EC BF4M1013FC BF6M1013EC BF6M1013ECP BF6M1013FC
Rated Power(kw) 118 129 174 195 206
Rated Speed(kw) 2300 2300 2300 2300 2300
Max torque/speed(N.m/r/min) 577/1400 577/1400 854/1400 954/1400 1050/1400
Aspiration Turbocharged inter-cooled Turbocharged inter-cooled Turbocharged inter-cooled Turbocharged inter-cooled Turbocharged inter-cooled
No. of cylinders 4 4 6 6 6
Configuration In-line In-line In-line In-line In-line
Injection system Mechanical unit pump Mechanical unit pump Mechanical unit pump Mechanical unit pump Mechanical unit pump
Displacement(L) 4.764 4.764 7.146 7.146 7.146
Bore(mm) 108 108 108 108 108
Stroke(mm) 130 130 130 130 130
Compression ratio 18 18 18 18 18
Rotation(looking at flywheel) Counter clock wise Counter clock wise Counter clock wise Counter clock wise Counter clock wise



Product Tags: Deutz BF6M1013EC engine , Deutz BF6M1013ECP engine , Deutz BF6M1013FC engine , BF6M1013EC Deutz engine , BF6M1013ECP Deutz engine , BF6M1013FC Deutz engine , Deutz 6 cylinder diesel engine , 174kw BF6M1013EC Deutz engine , Deutz used engine
