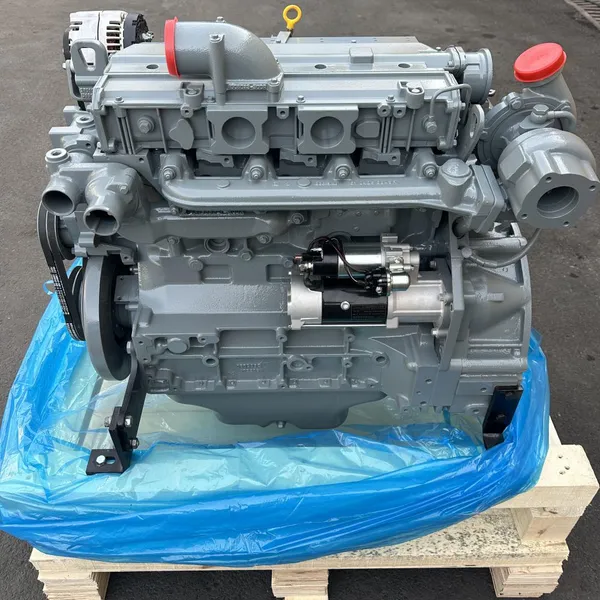

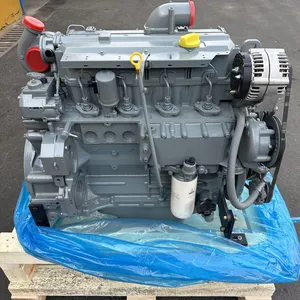

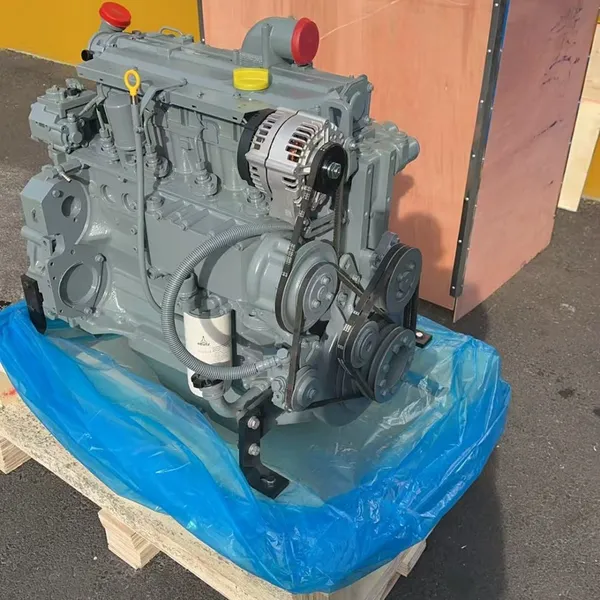

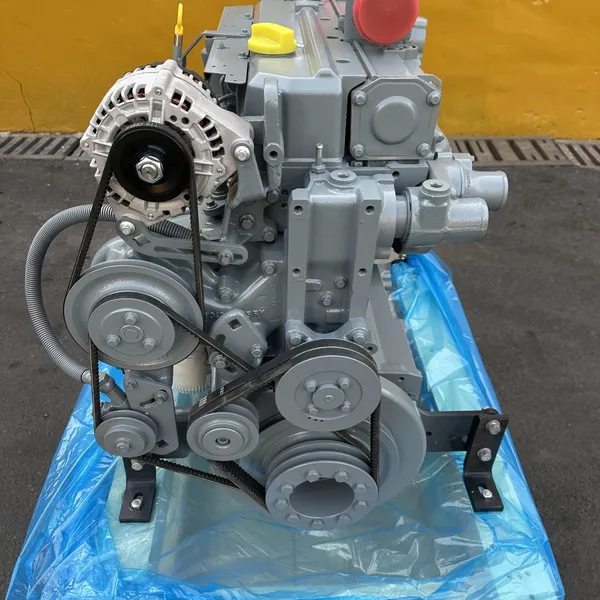

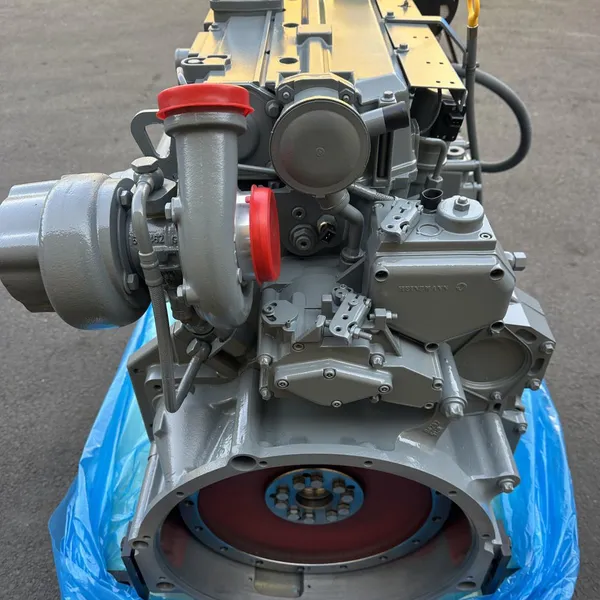

Name: New Deutz 115kw Water Cooled BF4M1013EC Construction Machinery Engine
Brand: Deutz
SKU: 172852346
Availability: InStock

ALL CATEGORIES

New Deutz 115kw Water Cooled BF4M1013EC Construction Machinery Engine

Send Inquiry to This Supplier

Mr. Frank

General Manager

1Yr

Jining Pinbo Import And Export Co.,ltd.

Jining, Shandong, China

Message

0/5000

* Email

	BF4M1013EC	BF4M1013FC	BF6M1013EC	BF6M1013ECP	BF6M1013FC
Rated Power(kw)	118	129	174	195	206
Rated Speed(kw)	2300	2300	2300	2300	2300
Max torque/speed(N.m/r/min)	577/1400	577/1400	854/1400	954/1400	1050/1400
Aspiration	Turbocharged inter-cooled	Turbocharged inter-cooled	Turbocharged inter-cooled	Turbocharged inter-cooled	Turbocharged inter-cooled
No. of cylinders	4	4	6	6	6
Configuration	In-line	In-line	In-line	In-line	In-line
Injection system	Mechanical unit pump	Mechanical unit pump	Mechanical unit pump	Mechanical unit pump	Mechanical unit pump
Displacement(L)	4.764	4.764	7.146	7.146	7.146
Bore(mm)	108	108	108	108	108
Stroke(mm)	130	130	130	130	130
Compression ratio	18	18	18	18	18
Rotation(looking at flywheel)	Counter clock wise	Counter clock wise	Counter clock wise	Counter clock wise	Counter clock wise

New Deutz 115kw Water Cooled BF4M1013EC Construction Machinery Engine

Product Details
