Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep

Zhengzhou Boxianglai Electronic Technology Co., LTD
Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep thumbnail-1
Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep thumbnail-2
Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep thumbnail-3
Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep photo-1

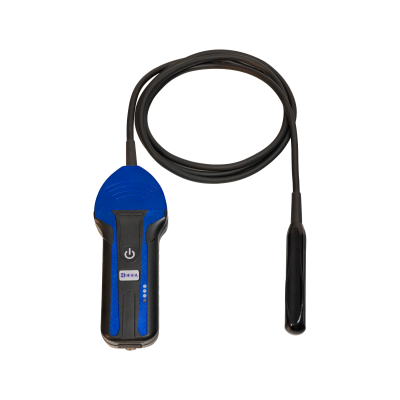

Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep photo-2

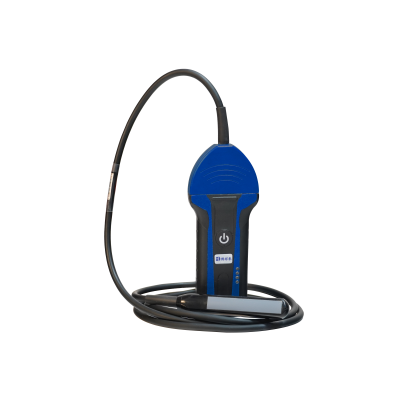

Portable Wireless Ultrasound Instrument BXL-s100 for Veterinary Cattle and Sheep photo-3
US$ 13800 - 27600 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
BXL
Place of Origin:
China
Model Number:
BXL-s100
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
haikou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BXL
Place of Origin China
Model Number BXL-s100
Type Portable Ultrasonic Diagnostic Devices

The BXL-S100 is a waterproof and dustproof wireless ultrasound system, that provides clear imaging for detecting pregnancy in cattle and horses, as well as follicle and corpus luteum development.

Wireless Veterinary Ultrasound Machine BXL -s100(图1)
Wireless Veterinary Ultrasound Machine BXL -s100(图2)
Wireless Veterinary Ultrasound Machine BXL -s100(图3)
Wireless Veterinary Ultrasound Machine BXL -s100(图4)
Wireless Veterinary Ultrasound Machine BXL -s100(图5)
Wireless Veterinary Ultrasound Machine BXL -s100(图6)
Wireless Veterinary Ultrasound Machine BXL -s100(图7)
Wireless Veterinary Ultrasound Machine BXL -s100(图8)
Wireless Veterinary Ultrasound Machine BXL -s100(图9)

Wireless Veterinary Ultrasound Machine BXL -s100(图10)

Working time: ≥5 hours
Wireless transmission: supported
Image display modes: B, 2B, 4B, B/M, M
Harmonic imaging: two levels
Frequency: 5-10MHz
Gain adjustment: 0-255
Dynamic range adjustment: 0-15
Transmit power: 0-3.
Scanning depth: Maximum depth of rectal linear array probe ≥27cm.
Gain: Eight-stage adjustable
System language: Chinese, English
Grayscale: 256
Channels: 16
Position markers: ≥60
One-key measurement of backfat thickness.
Storage: Storage and preview of static images, storage and playback of dynamic cine images ≥255 frames, expandable
Power supply: 100-240V~0.8A
Weight: 300g (including probe)
Image frame rate: 60 frames per second
Host size: 174×70×28mm
Optional configuration: 6.5MHz rectal linear probe
