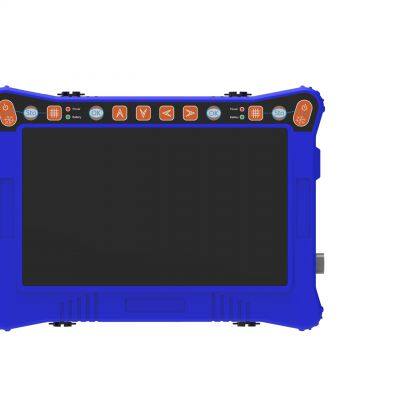

Ultrasonic Instrument BXL-V10Ⅲ for Veterinary Cattle and Sheep

BXL-V10Ⅲ Portable Veterinary Ultrasound Machine is an ultra-lightweight Portable USG machine that offers diagnostic imaging, even capable of examining the smallest structures. It comes in three versions: linear rectal probe, convex rectal probe, or convex probe, making it an excellent assistant for professionals.. This article is from . Please indicate the source when reprinting: /pr/721.html

1. Model: BXL-V10Ⅲ

2. Main Unit Dimensions: 219 mm × 158 mm × 36 mm

3. Software Version: B3.3 HD version, specialized veterinary software

4. Protection: Waterproof and dustproof, with an IP54 rating; robust and durable

5. Controls: Left and right side buttons for ease of use with either hand

6. Battery Life: Over 6 hours of operation on a single charge

7. Design: Strap-style, handheld design

8. Display Screen: 7.0-inch full-view, high-brightness, high-resolution, high-definition LCD, wide temperature range (-30°C to 80°C) 9. Probe Upgrade: No attached accessories

10. Scanning Method: Electronic convex array (micro-convex), electronic linear array

11. Image Processing: Pseudo-color, grayscale correction, image smoothing, histogram, microcomputer control, and digital scan converter (DSC), utilizing technologies such as digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time dynamic point-by-point receiving focusing (DRF), digital frequency scanning (DFS), and frame correlation, ensuring clear, stable, and high-resolution images

12. Image Display Modes: B, 2B, 4B, B/M, M, and various other display modes

13. Image Display: Large convex probe depth: 90-240 mm, 16 adjustable levels; rectal probe depth: 60-130 mm, 8 adjustable levels; images can be adjusted up/down, left/right, 256 levels of grayscale, 16 types of animal body marks

14. Frequency Adjustment: Three levels of adjustment for the rectal probe (5.0-7.5 MHz) and the large convex probe (2.5-5.0 MHz) 15. Storage: One-touch storage; supports USB storage and previewing, with one-touch storage functionality on both left and right side buttons

16. Grid Setup: Quick measurement function

17. Video and Charging Interface: Integrated, eight-pin waterproof interface

18. Grayscale: 256 levels

19. Pseudo-color: Multiple pseudo-color processing options

20. Patent: Patented product

21. Main Unit Rated Input: DC 14V 3.0A

22. Power Adapter Output: DC 14.0V 3.0A

23. Power Supply: 100-240V~1.2-0.6A, Frequency: 50-60Hz

24. Preset Functions: Various system presets

Probe Configuration:

Standard Configuration: 6.5 MHz 80-element rectal probe (or R60/3.5 MHz 80-element convex probe) Optional Configuration: R20/5.0 MHz 80-element micro-convex probe  Standard Configuration:

 - 1 main unit

- 1 probe

- 1 power adapter

- 1 set of training USB and user manual

- 1 shoulder strap

- 1 carrying case

Optional Probes:

- 3.5 MHz large convex array probe

- 6.5 MHz linear array probe for large animals (rectal)

- 6.5 MHz linear array probe for sheep/alpaca (rectal)
