50MW 100MW 200MW 300MW 400MW 500MW Solar Panel Making Machine PV Production Line Assembly
Negotiable
/ Bag
1 Bag(Min.Order)
- 10 Bag / Bags per Month
- T/T L/C
You May Like
-
50MW Solar Module Manufacturing Project Turnkey Solar Panel Production Line
-
Canada Solar panels factory machines solar panel production line Fully Automated Mechanical Manufacturing High-Speed BC Welder
-
solar panel machine Fully Automatic Laser Scribing Photovoltaic Panel Laser Scriber
-
solar panel machine Fully Automatic Laser Scribing PV Panel Laser Scribing Machine
-
solar panel machine Fully Automatic Laser Scribing Photovoltaic Panel Laser Scribing System
-
solar panel machine Fully Automatic Laser Scribing Laser Cutting Machinery for PV Modules
Product Details
| Brand Name | ChinTiyan New Energy | Model Number | 100mw pv solar production line |
Product Description
1. 100MW Photovoltaic module production line (1 pcs).
2. Optional automation level: SEMI / FULLY AUTO.
3. Production efficiency: 25-30 panels/hour
4. Factory area: 1,500-2,500 sqm.
5. Power requirements: 180-280kw
6. Estimated price: ＄900,000-1,500,000
ChinTiyan New Energy Is specialized for enterprises to do 10-500MW automatic photovoltaic module production line turnkey solutions and equipment, but also provides BC battery scribe/string welding machine series, laminating machine, laser scribe, photovoltaic module frame laser marking machine, photovoltaic module automatic production line and testing equipment (EL~IV tester).

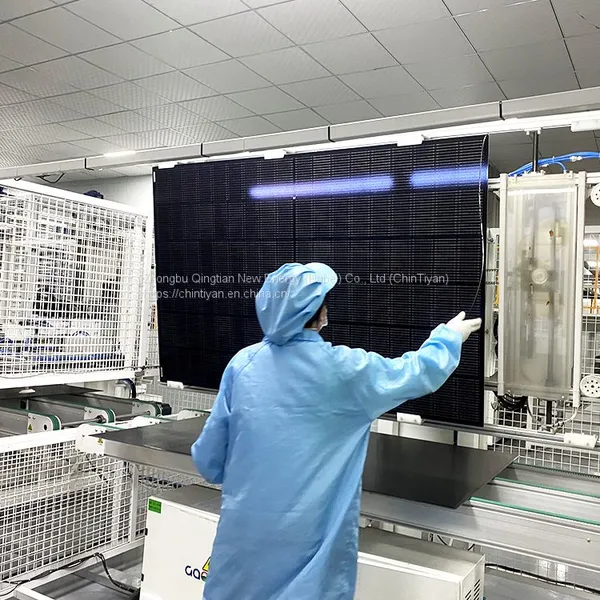

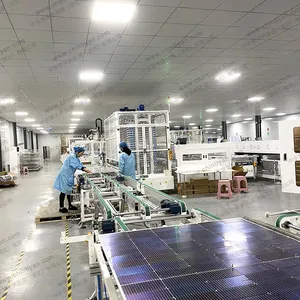

Suitable for pv production line in solar panel factories
1. Production module type: single-glass, double-glass module.
2. Module cell size: 166-210mm.
3. Module size: L(1650~2500mm) x W(990~1400mm) x T(25~45mm).
4. Module welding tape type: flat welding tape/round welding wire;

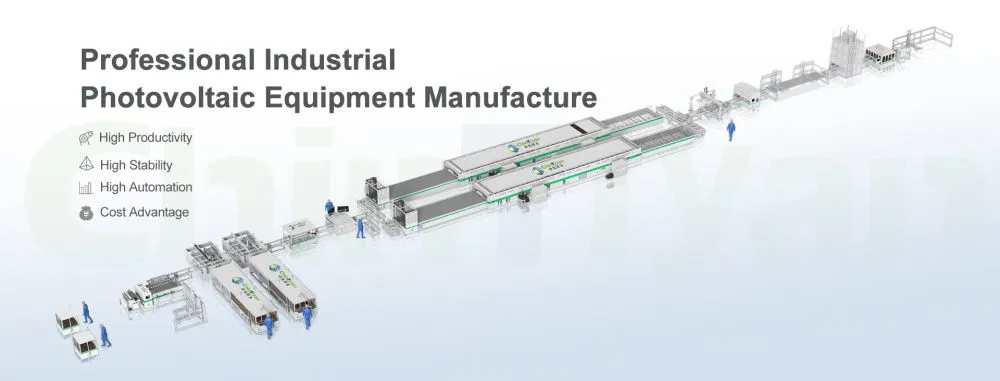

PV module production and manufacturing process
| No. | Equipment | Qty |
| 1 | 2000 Scribing cutting machine | 1 |
| 2 | Auto glass loading machine | 2 |
| 3 | EVA cutting and laying machine | 1 |
| 4 | 4000 stringer welding machine | 1 |

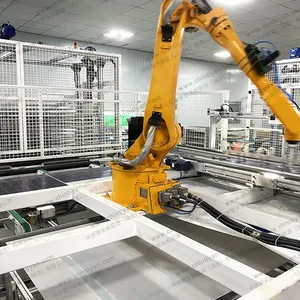

| 5 | Robot lay up machine | 1 |
| 6 | Aoto bussing welding | 1 |
| 7 | Automatic taping | 1 |
| 8 | EVA cutting and laying machine | 1 |
| 9 | EL/VI all in one machine | 1 |
| 10 | Double glass repair transfer machine | 2 |
| 11 | Double glass edge banding machine | 1 |
| 12 | 2672 single layer double chamber laminator | 1 |
| 13 | Manual edge cutting station | 2 |
| 14 | Pneumatic online framing machine | 1 |
| 15 | Offline J-Box gluing machine | 1 |
| 16 | Manual Junction box installation | 1 |
| 17 | Manual Junction welding | 2 |
| 18 | Manual Junction gluing | 1 |
| 19 | loading material machine on curing line | 1 |
| 20 | curing line | 1 |
| 21 | laying off material machine on curing line | 1 |
| 22 | Back cleaning | 2 |
| 23 | Front cleaning | 2 |
| 24 | IV tester machine | 1 |
| 25 | Hipot | 1 |
| 26 | EL tester machine | 1 |
| 27 | Automatic grading machine | 1 |
