Home > Products > Turbocharger > T3/T4 T3T4 T04E .48 A/R 50 TRIM TURBINE 5 BOLT FLANGE TURBOCHARGER TURBO CHARGER
T3/T4 T3T4 T04E .48 A/R 50 TRIM TURBINE 5 BOLT FLANGE TURBOCHARGER TURBO CHARGER
- T/T Credit Card
You May Like
-
RHF5 8970700291 8971480750 8970863431 8971480762 for ISUZU TROOPER 2.8 TD Opel Frontera 4JG2 Engine
-
Turbo GT1752S 710060-0001 OEM 28200-4A001 Turbocharger For Hyundai Starex CRDI/Hyundai H-1 CRDI D4CB Engine
-
Rhb31 Turbo Type 13900-62D51 13900-62D50 VZ21 VE110069 VJ110069 VG110069 Mini Turbocharger for Suzuki Small Engines Snowmobiles
-
TA5130 Turbo Type 452070-5001S 452070-0001 1250650 0089878 0389901 1250650 0089878 0389901 FOR DAF WS315L WS268
-
Turbine Model HX35 3779710 504147422 4036158 Turbocharger 504216822 504129464 504219918 504147422 for Iveco Excavator NEF 6CYL
-
VJ33 VJ26 WL84 WL85 Turbo Charger for MAZDA Bravo FORD Courier Ranger WL-T 2.5L
Product Description
T3/T4 T3T4 T04E .48 A/R 50 TRIM TURBINE 5 BOLT FLANGE TURBOCHARGER TURBO CHARGER

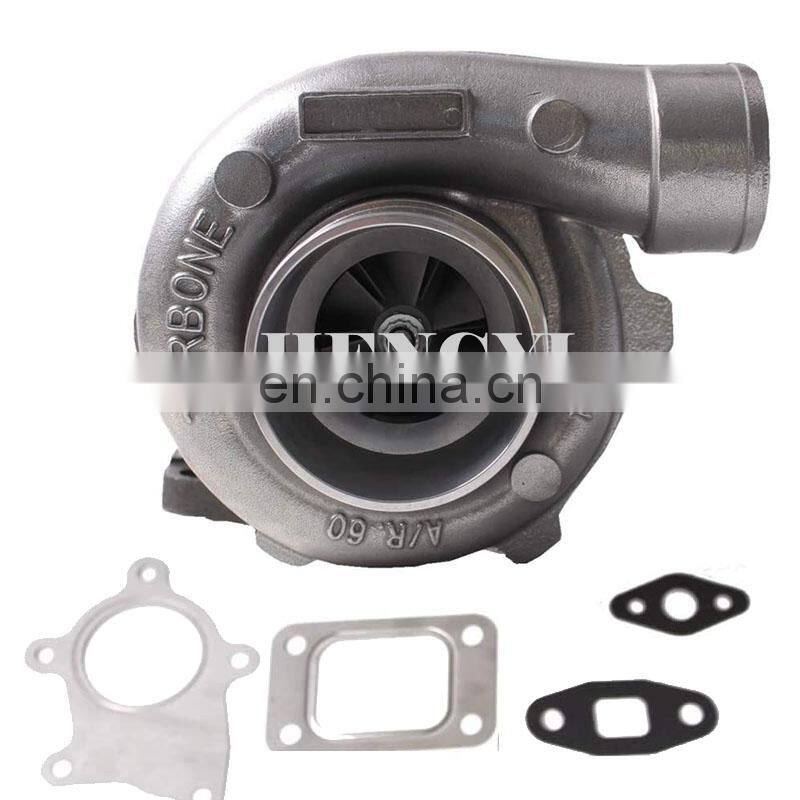

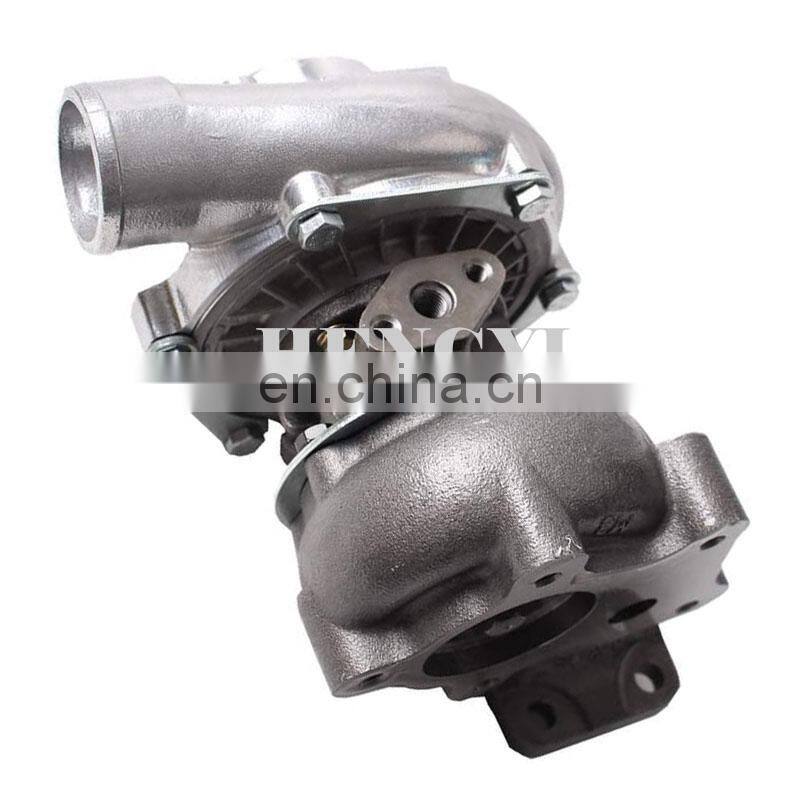

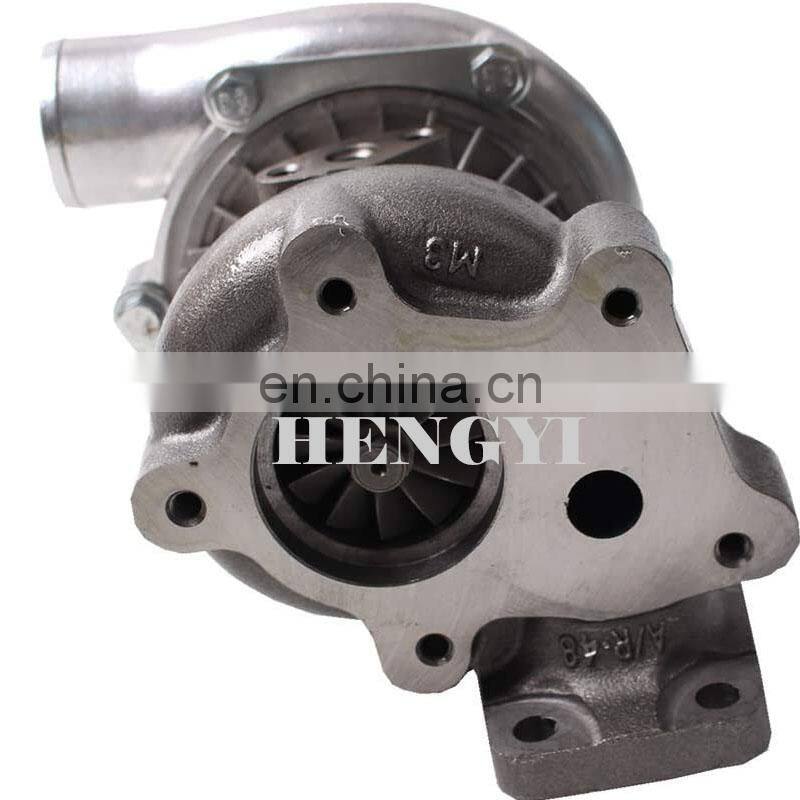

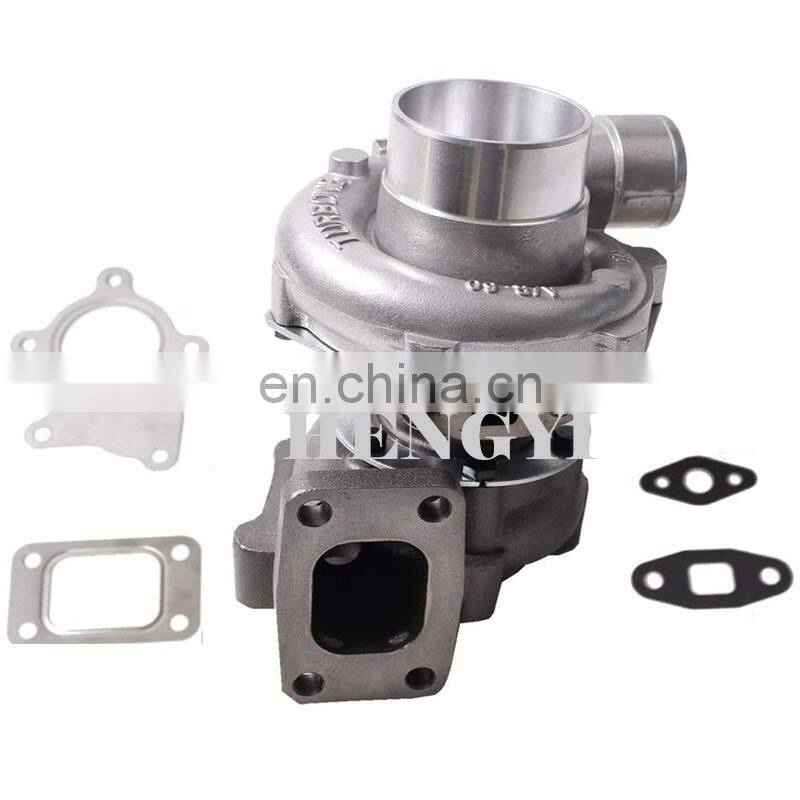

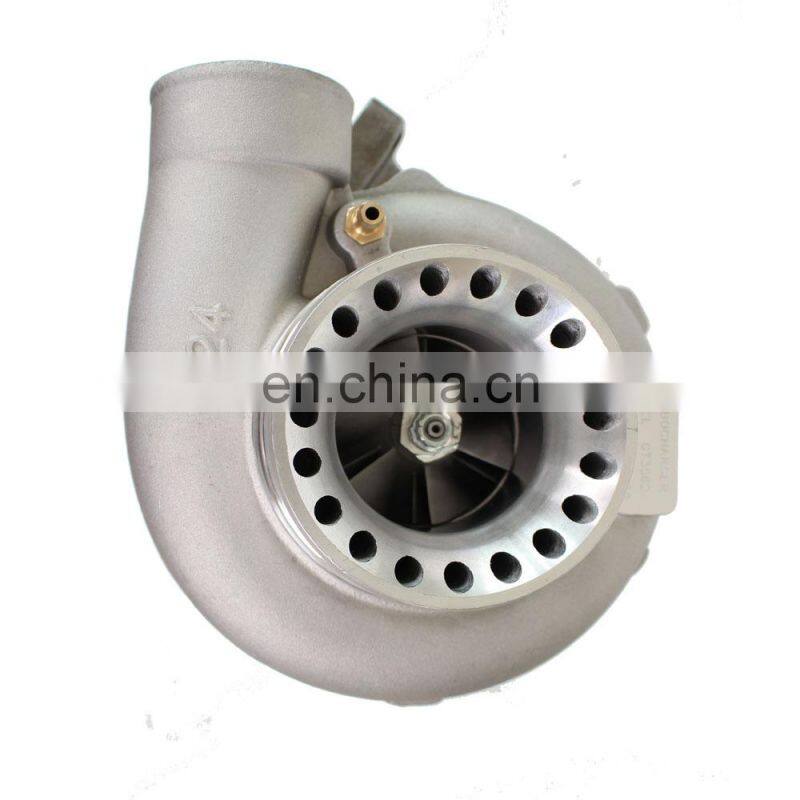

turbocharger pictures
TURBOCHARGER INFORMATION
High Compression/ Boosting T04E Turbocharger :
This T3/T4 hybrid turbocharger assembly is created by installing a T4 compressor wheel and housing onto a T3 turbine housing, wheel and center section. A T3/T4 hybrid turbocharger assembly is a compromise for engines where a T3 turbocharger is too small to reach the desired maximum horsepower but using a T4 turbocharger would create an unacceptable amount of turbo lag. The T3/T4 turbocharger is designed to be used on engines displacing 1.6L-2.5L and is typically good for around 400HP. They are also commonly used in twin turbo applications. In this case those figures would be doubled 3.2L-5.0L engines up to 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability. Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar). Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan. Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine. Also factory non-turbo engines without forged internal components on high octane pump gas (91-92 octane) it is not recommended exceeding 7psi (.5 Bar) of boost. Doing so could result in damaging your engine.
High Compression/ Boosting T04E Turbocharger :
- Capable of Boosting Horse Power up to 300+ BHP
- High Quality Material, Cast Housing with Durable Steel
Includes:
- 1 X T04E Turbocharger
Notes:
- Universal Application.
Additional parts will be needed for a complete installation. Please consult professional turbo installer for details
WARRANTY
1. every turbo is 100% new.
2. twice dynamic balanced test
3. All the turbocharger will be warranty for one year (broke because of manufacture fault)In this case we will change a new send repair kit or new chra or new turbo to customer for free.
PACKAGE
PAYMENT
we accept paypal , western union, TT or pay it through alibaba.
factory information
Heng-YI turbocharger Ltd Inc.is specilally in manufacturing and selling turbocharger which founded in 1994. Our company is located in fengcheng Liaoning province where is famous for tobocharger.
Our factory occupy more than75000 square feet where hundreds of types of turbocharger are assembled.
The breadth and depth of our product are unmathed in the industry which enabling us to support a variety of market application wordwide,including industrial,commercial transport,marine,light truck and desiel/gasoline passenger car.Our gasoline engine turbochargers are made for most leading automotive brands including Mitsubishi,Subaru,Audu,passsat,volvo,Bora,Toyota,Renault,Pajero,Nissan,Hyundai,Kia,Isuzu and the diesel engine tubochargers are made for various of famous industrial diesel engine brand like komatsu,Hitachi,Carter,Kamioka,Proton,Daewoo etc.Our diesel turbochargers can also be used in marine,agricultural machinery,genrators sets and many other four-cylinder, six-cylinder vehincles.
To meet the increased higher requirement from market,in 2004 we imported from hardinge inc.(USA)the super-precision multi-tasking CNC(computer Numerical controlled)lathes,high-performance vertical and horizontal muti-tasking CNC machining centers, Jones and shipman surface grinding machine and from JTEKT(Japan) the superprecision CNC grinder.Those best in class machine to guarantee the balaning and defect-free of our turbochargers.Upon today,we have customers from all over the world,including USA Ressia,Spain.Italy,Singapore,Malaysia,Thailand,Poland Iran and Iraq.
The misson of our company is to provide the highest products with the best price.We are looking forward to doing business with you.
contact with Jane
whatsapp:+86 18841547653
weichat:18841547653
QQ :2845030186
Tel:+86 18841547653
