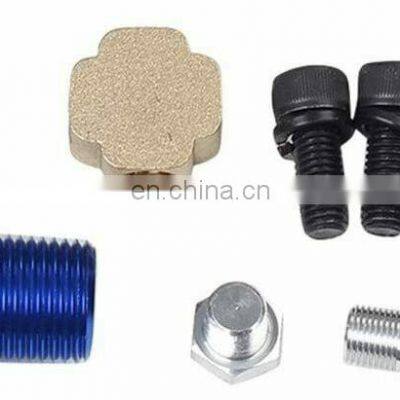

GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line photo-3
GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line photo-4
GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line photo-5
GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line photo-6
CHF 189 - 189 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

GT45 T4 V-BAND 1.05 A/R 92MM HUGE 800+HPS BOOST UPGRADE RACING TURBO CHARGER









TURBOCHARGER INFORMATION



Manufacturer Part Number GT45
weight  17.25kg
Warranty 6 monthes
Placement on Vehicle Left,Right,Front,Rear
Intake Inlet/ Outlet 3.75" / 2.25"
Compressor A/R 0.66
Compressor Inducer /Exducer (MM) 68.70 / 97.80
Compressor Trim 69
Exhaust (Downpipe) Flange 3.50" V-Band
Exhaust (Turbo Manifold) Flange Standard T4 4-Bolt
Turbine A/R 1.05
Turbine Inducer / Exducer (mm) 87.40 / 77.00
Turbine Trim 92
Fitment Type Performance/Custom
The GT45 turbocharger assembly is designed to be used on engines displacing 1.6L-8.0L and is typically good for around 800HP. Horsepower ratings are generally meant to express the turbochargers maximum airflow capability. Recommended boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar) and boost pressures should not exceed 30psi(2 Bar). Exceeding 21psi(1.5 Bar) of boost pressure can significantly reduce a turbochargers lifespan. Generally speaking 14psi(1 Bar) is good for a 100% increase in horsepower from a naturally aspirated engine. Also factory non-turbo engines without forged internal components on high octane pump gas (91-92 octane) it is not recommended exceeding 7psi (.5 Bar) of boost. Doing so could result in damaging your engine.

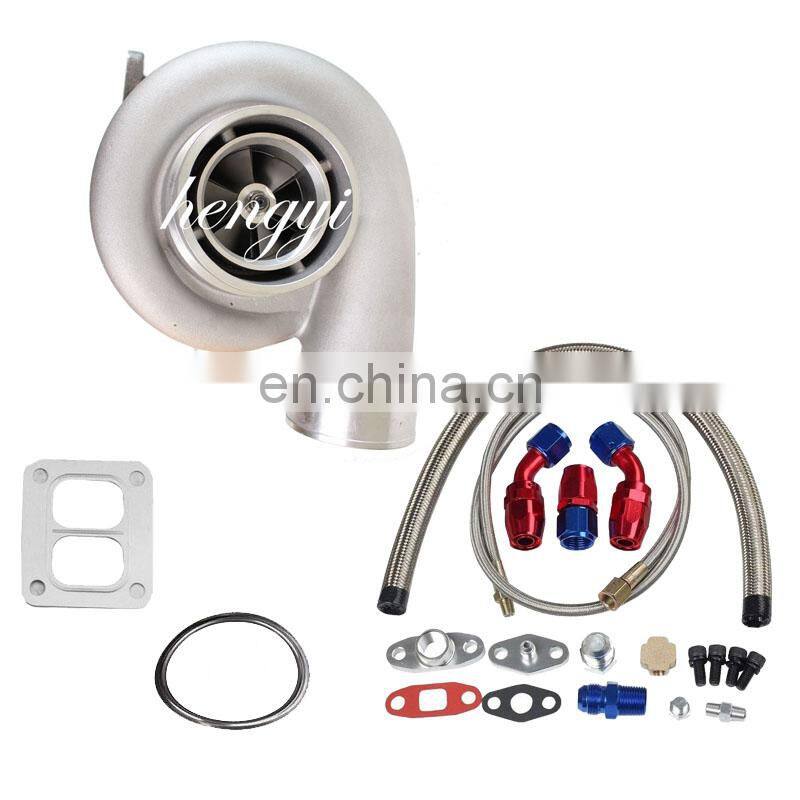

INCLUDE:


1 X GT45 Turbocharger

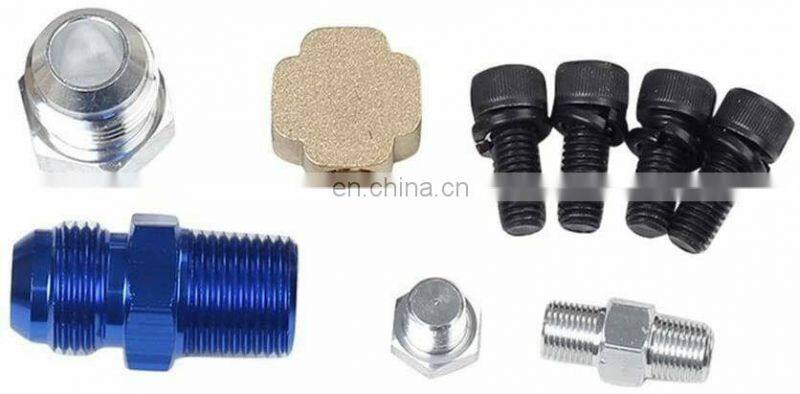

Hardware as Shown in the Picture Above

FEATURES:


100% brand new
Capable of boosting horse power up to 600+ BHP
High quality material, cast housing with durable steel
T4 4 bolt exhaust flange
V band downpipe flange pattern 3.50"
Intake inlet & outlet: 3.75" & 2.25"

Compressor:
Trim: 69
A/R: .66
Inducer: 68.7
Exducer: 97.8

Turbine:
Trim: 92
A/R: 1.05
Inducer: 87.4
Exducer: 77

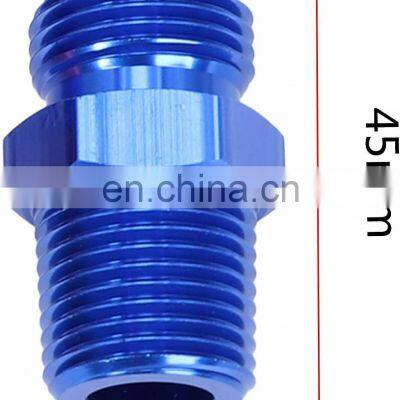

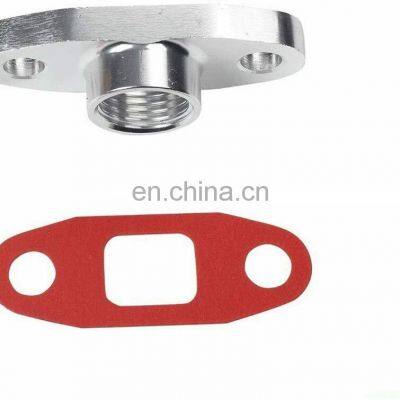

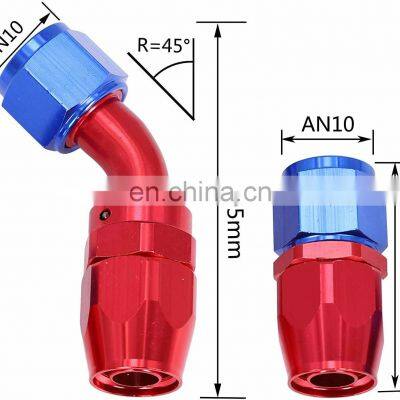

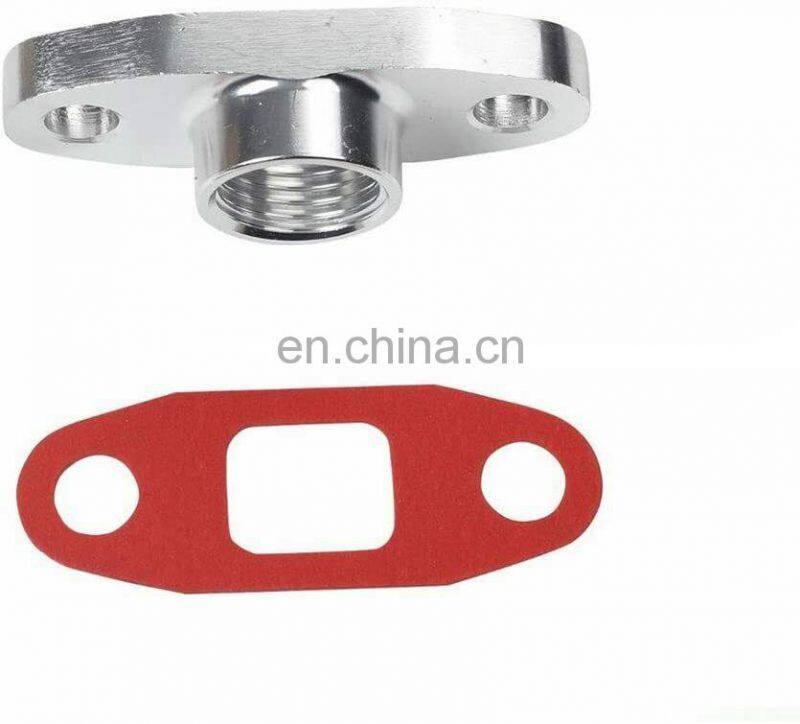

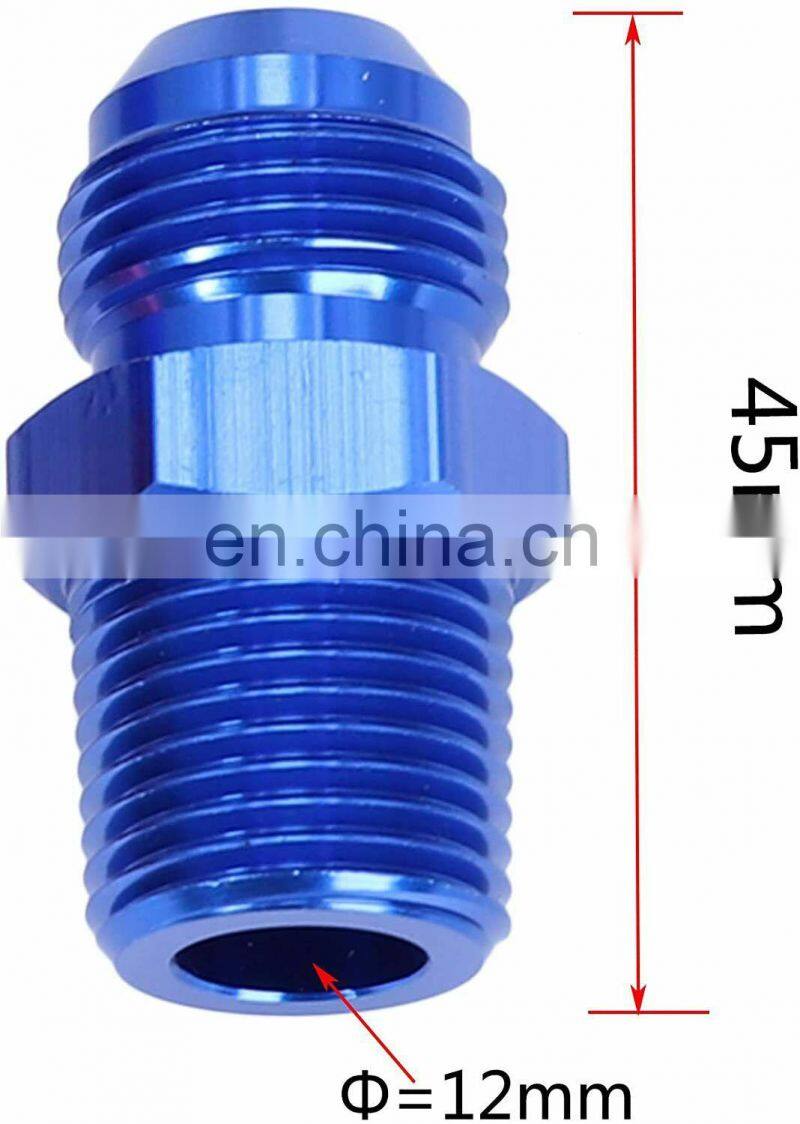

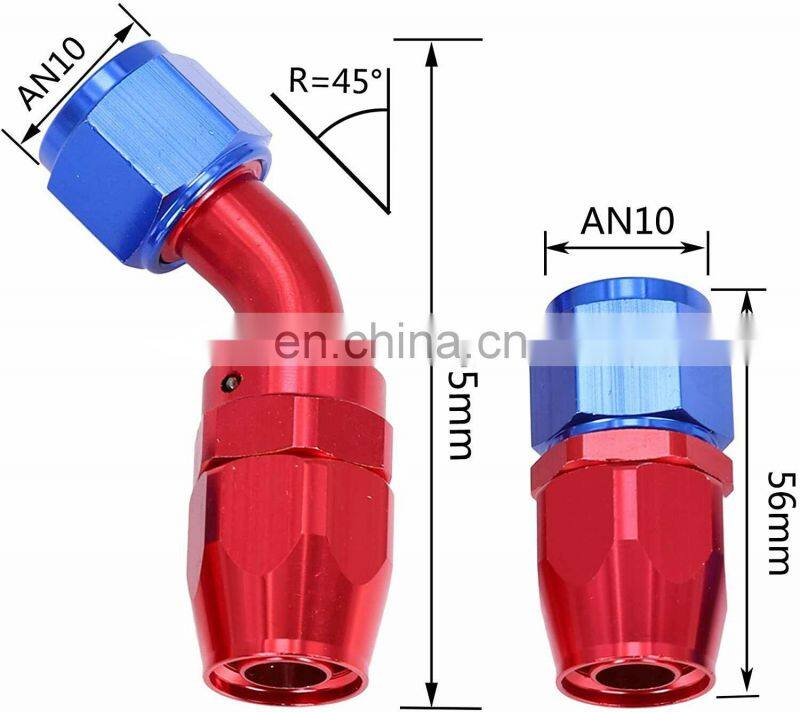

Oil Line: 10AN 550mm Turbo Oil Return Line Kit

NOTES:


Universal application. Additional parts will be needed to complete install. Please consult professional turbo installer for details


GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line
GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line

WARRANTY



1. every turbo is 100% new.



2. twice dynamic balanced test



3. All the turbocharger will be warranty for one year (broke because of manufacture fault)In this case we will change a new send repair kit or new chra or new turbo to customer for free.



PACKAGE





GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line







PAYMENT



we accept paypal , western union, TT or pay it through alibaba.



product process

we adopt sliding nozzle turbine in variable geometry turbocharger which has passed the European     2 million,European 3 standard road test.Its strong durability comfortable drivablity and unique brake make the engine achieve the best state which wins VGT success in Europe market.

GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return LineGT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line

factory information



GT45 V-Band Turbo Turbocharger 600+HPs 1.05 A/R 98mm 78 Trim + Oil Return Line

Heng-YI turbocharger Ltd Inc.is specilally in manufacturing and selling turbocharger which founded in 1994. Our company is located in fengcheng Liaoning province where is famous for tobocharger.

Our factory occupy more than75000 square feet where hundreds of types of turbocharger are assembled.

The breadth and depth of our product are unmathed in the industry which enabling us to support a variety of market application wordwide,including industrial,commercial transport,marine,light truck and desiel/gasoline passenger car.Our gasoline engine turbochargers are made for most leading automotive brands including Mitsubishi,Subaru,Audu,passsat,volvo,Bora,Toyota,Renault,Pajero,Nissan,Hyundai,Kia,Isuzu and the diesel engine tubochargers are made for various of famous industrial diesel engine brand like komatsu,Hitachi,Carter,Kamioka,Proton,Daewoo etc.Our diesel turbochargers can also be used in marine,agricultural machinery,genrators sets and many other four-cylinder, six-cylinder vehincles.

To meet the increased higher requirement from market,in 2004 we imported from hardinge inc.(USA)the super-precision multi-tasking CNC(computer Numerical controlled)lathes,high-performance vertical and horizontal muti-tasking CNC machining centers, Jones and shipman surface grinding machine and from JTEKT(Japan) the superprecision CNC grinder.Those best in class machine to guarantee the balaning and defect-free of our turbochargers.Upon today,we have customers from all over the world,including USA Ressia,Spain.Italy,Singapore,Malaysia,Thailand,Poland Iran and Iraq.

The misson of our company is to provide the highest products with the best price.We are looking forward to doing business with you.
