Dipped Polyester Yarns And Cords Hot Air Thermal Shrinkage Tester ASTM D4974 ASTM D5591 Shrink Force/Rate Test Equipment

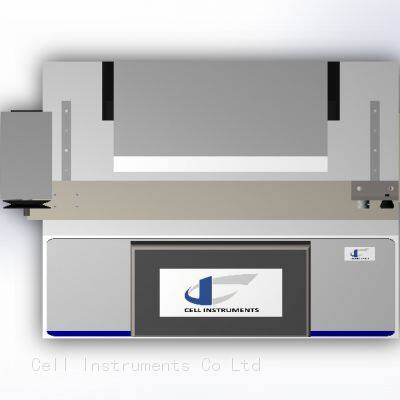

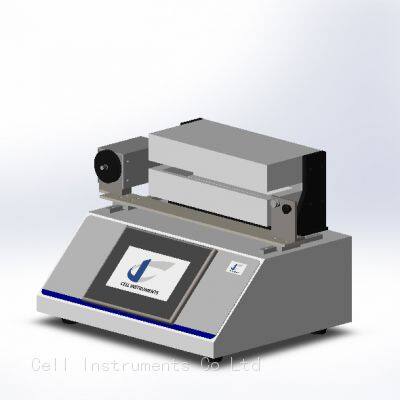

HAST-01 Hot Air Thermal Shrinkage Tester conforms to ASTM D5591 and ASTM D4974 and is used for the measurement of the thermal shrinkage force and rate of yarns and cords in air at controlled temperature. It is applicable to yarns and cords made of nylon, polyester and other polymers, etc.

ASTM D4974 shrink rate test:

A relaxed specimen of yarn or cord is subjected to dry heat for a specified time under a specified tension. The percent of shrinkage is displayed on the screen while the specimen is still under tension and exposed to heat.

ASTM D5591 shrink rate test:

A specified length of yarn or cord is fixed at a grip and the other end is mounted with a pretension mass, then the mass is removed and the end was connected to a loadcell. After that the yarn or cord is exposed to dry heat at a controlled temperature. The shrinkage force induced in the specimen is read from the tester.

dipped polyester cords, dipped polyester yarns, cords and cords made of nylon and polyester fibers, dipped nylon 66 cords, dipped nylon 6 cords, dipped polyester cords , dipped paraaramid cord, dipped polyester cord, tire cord, polyester industrial filament, etc.

1. Made of metal material, strong and durable.

2. Easy and user-friendly operation procedures.

3. Highly integrated design and easy to carry.

4. Thermal type micro printer.

5. Large touch screen display and operation.

6. RS232 Port and profession PC software are optional. (Stand-alone model and PC model)
