Manufacturer High Flow Pleated Water Filters
Introduction:
The KLFF series filter cartridges feature a large-diameter structure and high-strength support materials, enabling them to maintain high flow rates even under high pressure differentials while offering low flow resistance. The internal-to-external flow direction and the gradient pore size of the filter media allow for the layered entrapment of impurities within the filter media, resulting in excellent particulate retention capabilities.
Features:
Large-diameter structure, low flow resistance
Wide range of applications
Excellent chemical compatibility
Gradient filtration for outstanding particulate retention capabilities
Product manufacturing environment: Cleanroom
Cartridge informations:
Model |
KLFF |
|||
Specification |
Diameter |
152.4mm |
||
Filtration Area |
7㎡/40'' |
|||
Material |
Cover |
PP |
Reinforced PP |
|
Seal |
EPDM/Silicon/NBR/FKM |
|||
Material for filtration |
PP |
GF/PET/PBT |
||
Support |
PP |
PET |
||
Performance |
Max. differential pressure |
3.44Bar@83℃ |
3.44Bar@122℃ |
|
Max. temperature |
83℃ |
122℃ |
||
Max. flow rate |
40''(70m³/h);60''(110m³/h) |
|||
Applications:
Process water in food
Variety of solvents, emergency cold water, salt water in petrochemical industry
Iron removal filter, condensate filter, stator cooling water in power plants
Various process fluids, process water, condensate, cooling water, wastewater treatment in industry
RO security filter, purification treatment of various process water

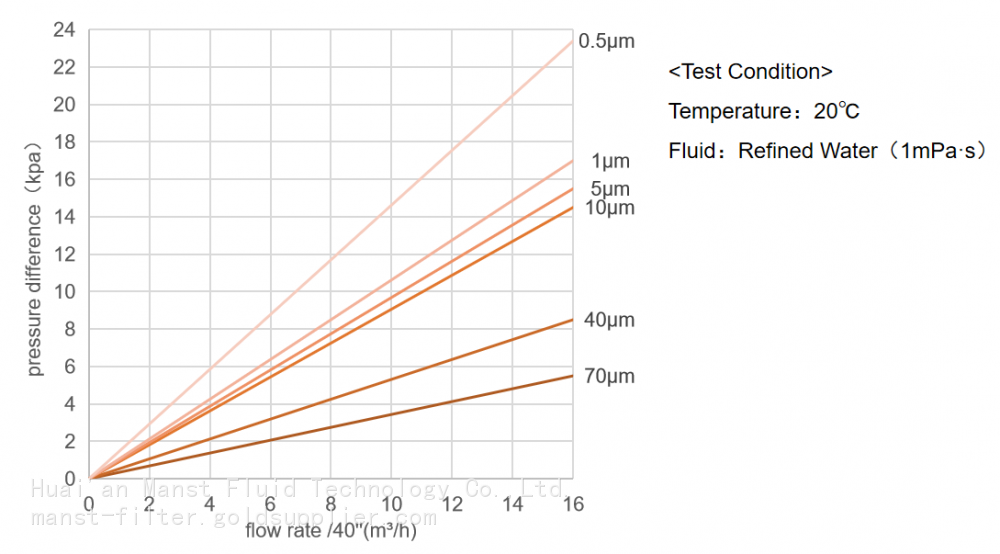

Flow Rate Properties:

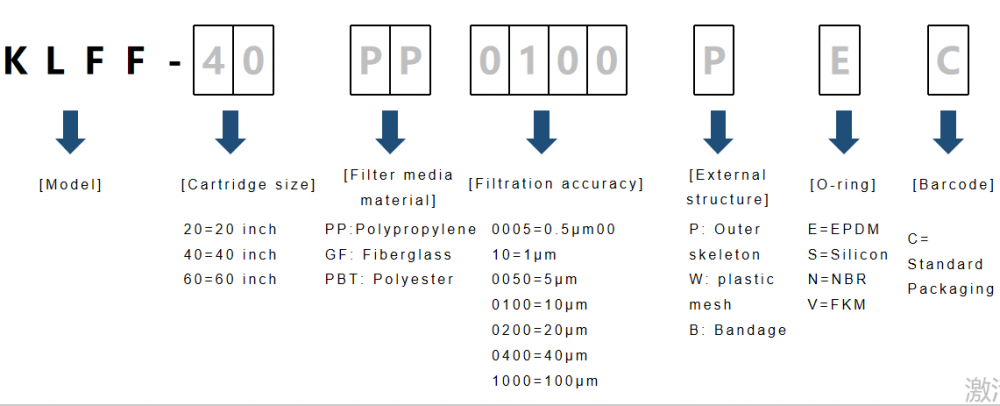

Model Selection:
