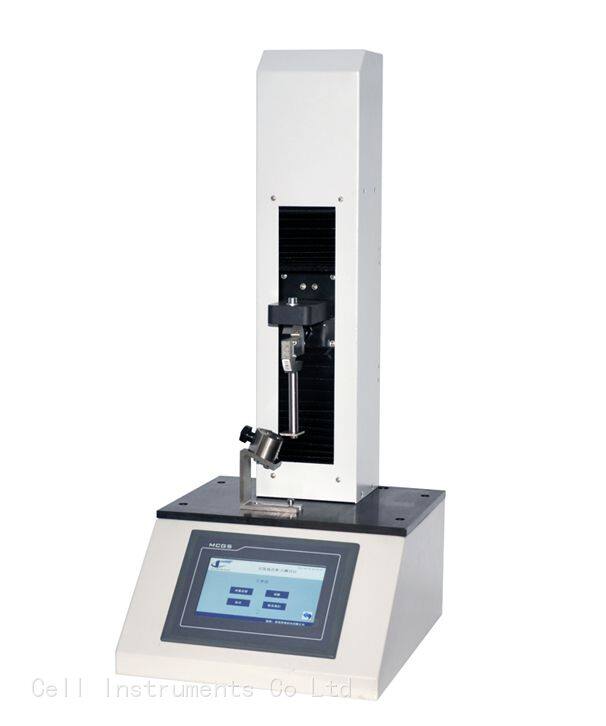

Aluminum-Plastic Combination Cap Opening Force Tester

An aluminum-plastic combination cap is a closure used in the packaging industry for sealing bottles of beverages, pharmaceuticals, cosmetics, and other liquids. These caps combine aluminum's strength and barrier properties with plastic's flexibility and cost-effectiveness, making them efficient for various applications. They are extensively used in the pharmaceutical industry for robust sealing, tamper-evidence, and maintaining product integrity.

Composition:

Aluminum: Often used for the outer shell, providing a robust, tamper-evident, and attractive finish.

Plastic: Typically used for the inner liner or as part of the closure mechanism, ensuring a tight seal and easy opening.

1. Tab tear-off force(tab removing force) in ISO 8872, ISO 10985

2. Force required to pull off plastics component ISO 10985

3. Force required to remove plastic component ISO 8536-7, ISO 8536-6

4. Tensile and elongation force for aluminum part

1. Industrial-grade PLC control system and HMI interface, stable, accurate, and easy to operate.

2. Compatible with different accessories for tensile, compression, breaking force, hardness, peel, opening, puncture, push-pull, and other tests.

3. Real-time display of test results and data processing outcomes.

4. Equipped with a dot-matrix type micro printer for long-term preservation of test results.

5. The tester features power-off parameter memory, overload protection, limit protection, and automatic return at the end of the test.

6. RS232 communication interface and professional software(Optional).

LSG-01 is capable of various tests and measurements conducted in the medical packaging industry to ensure the quality and safety of packaging materials and components, which include but not limited to Ampoule bottle breaking force test; infusion bottle cap opening force and tear tab tear force tests; heat seal strength, tensile strength, peel strength, and elongation at break tests for aluminum foil, PVC rigid sheets, and composite film products; vial combination cap opening force, puncture force, and aluminum foil tear force tests.

ISO 8872

ISO 7500-1

ISO 10985

ISO 8362-6

ISO 8362-7
