ACREL ADL10-E 35mm DIN Rail 1 phase 2 wire multifunction energy electricity meter
US$ 17.5 - 17.5
/ Piece
1 Piece(Min. Order)
- jiangsu
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
ACREL ADL10-E/C RS485 Modbus-RTU 35mm DIN Rail 1 phase 2 wire multifunction energy electricity meter With certificate
-
Acrel ADL100-ET CE approved IoT Cloud electricity meter Single Phase Multifuction KWH meter
-
Acrel ADL100-ET/C CE approved RS485 Single Phase Multifuction KWH meter / IoT Cloud electricity meter
-
Acrel ADL100-ET/F Multi traiff energies CE approved Single Phase Multifuction KWH meter / IoT Cloud electricity meter
-
Customize Acrel ADL200 Single Phase 10(80)A Bidirectional Power meter/ Electric Energy Meter Multi Tariff Energies Optional
-
Customize Acrel ADL200/F Multi tariff energies Single Phase 10(80)A Bidirectional Power meter/ Electric Energy Meter Multi Tariff Energies Optional
Product Details
| Brand Name | ACREL | Place of Origin | China | |
| Model Number | DDS1352 | Phase | Single Phase | |
| Output Voltage | 220V | Operating Temperature | -20~60 | |
| Dimensions | 18*96*70 | Display Type | Digital Only | |
| Accuracy Class | 1.0 | Measuring Energy Range | 0-999999 |
Product Description
Specification
ADL10-E Single Phase Electric Power Meter Power /Factor Meter

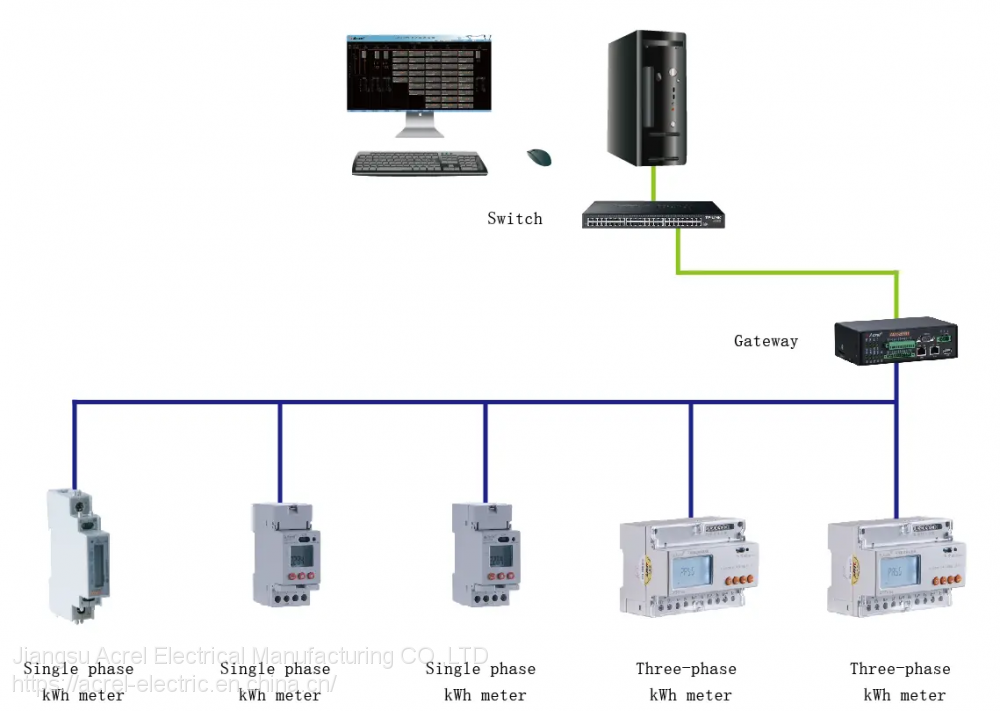

ADL energy meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL can be used in all kinds of control systems, SCADA systems and energy management systems.
Technical Parameters
| Model | Accuracy | Input voltage | Input current | Pulse constant |
| ADL 10-E | Class 1 | 220V | 10(60)A | 3200imp/kwh |
| ADL 100-ET | Class 1 | 220V | 10(60)A | 1600imp/kwh |
| ADL 100-EY | Class 1 | 220V | 10(60)A | 1600imp/kwh |
| ADL 3000-E | Class 0.5 | 3*57.7/100V,3*100V 3*220/380V,3*400V | 1(6)A;10(80)A | 6400imp/kwh 400imp/kwh |
| ADL 300-EY | Class 1 | 3*220/380V,3*400V | 1.5(6)A;10(60)A | 6400imp/kwh 400imp/kwh |

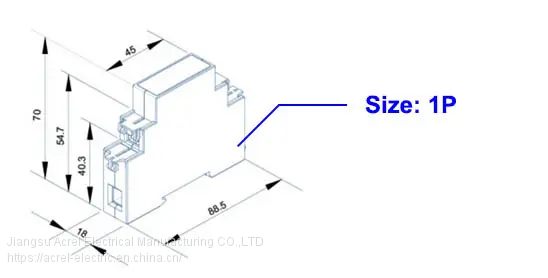

Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm

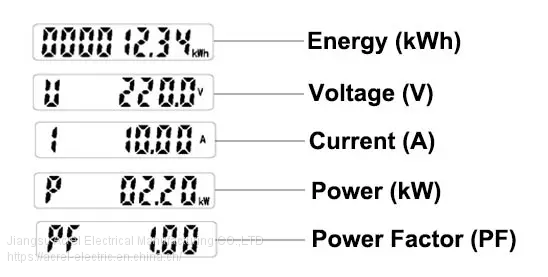

Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

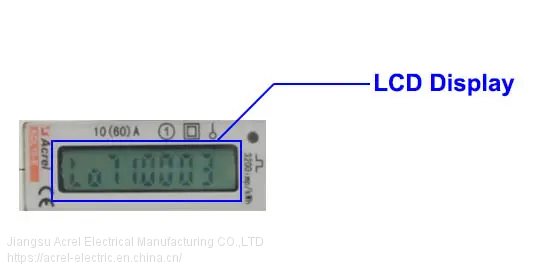

LCD Display
● 8 digits

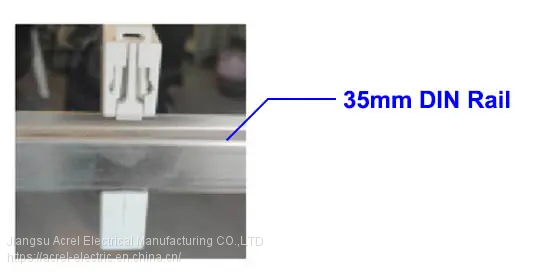

DIN Rail Installation
● 35mm standard DIN rail

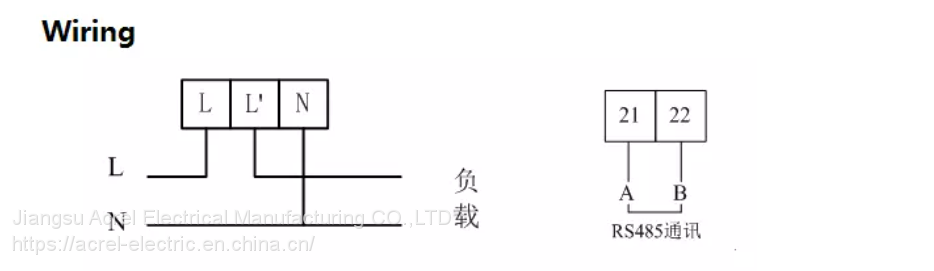

Wiring and Details
