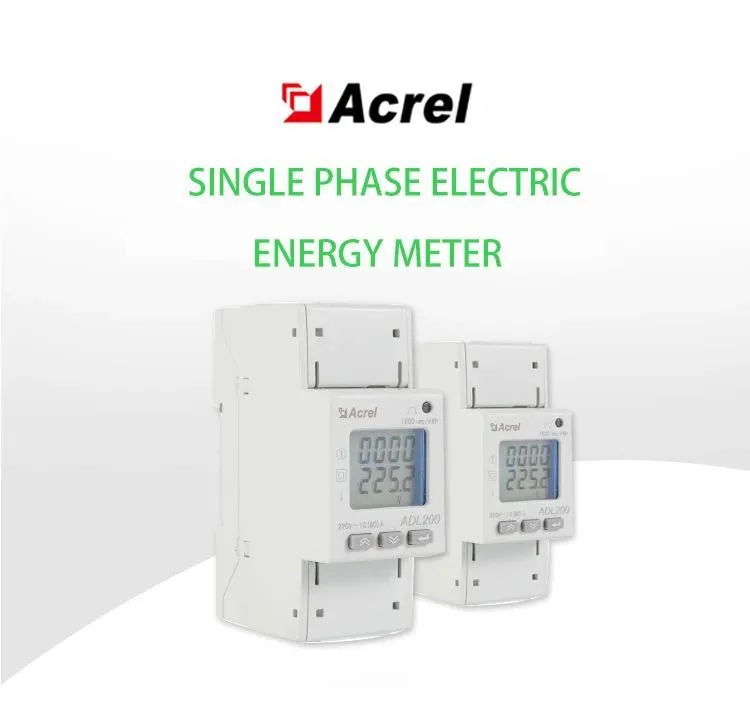

Acrel ADL200 Single Phase 10(80)A Bidirectional Power Meter/ Electric Energy Meter Multi Tariff Energies Optional
US$ 24.9 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL200
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACREL ADL10-E High Quality Single Phase Energy Meter for Power ConsumptionUS$ 18.7 - 18.7MOQ: 1 Piece -
ACREL ADL10-E Single Phase Direct Connection 60A Easy to Installation Power Monitoring Device With CE Certificate Manufacture Over 18 YearsUS$ 18.7 - 18.7MOQ: 1 Piece
-
ACREL China Manufacturer & Supplier ADL10-E Electronic Din Rail Type Active Power Meter With LCD DisplayUS$ 18.7 - 18.7MOQ: 1 Piece
-
ACREL ADL10-E Excellent Quality & Service RS485 Modbus Max 60A Input Bidirectional Single Phase Smart Power Meter for Energy Consumption MonitorUS$ 18.7 - 18.7MOQ: 1 Piece
-
ACREL ADL10-E Quickly Delivery 1 Phase Energy Meter Electricity Monitoring KWh Power MeterUS$ 18.7 - 18.7MOQ: 1 Piece

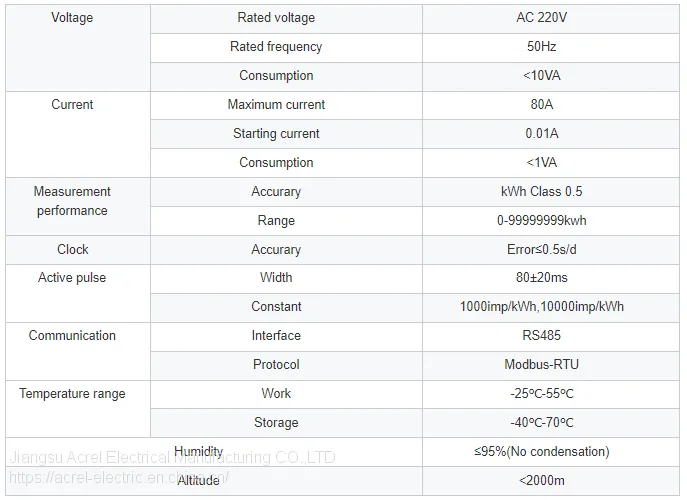

Brand Name
Acrel
Place of Origin
China
Model Number
ADL200
Phase
Single Phase
Output Voltage
220V
Operating Temperature
-25℃~55℃

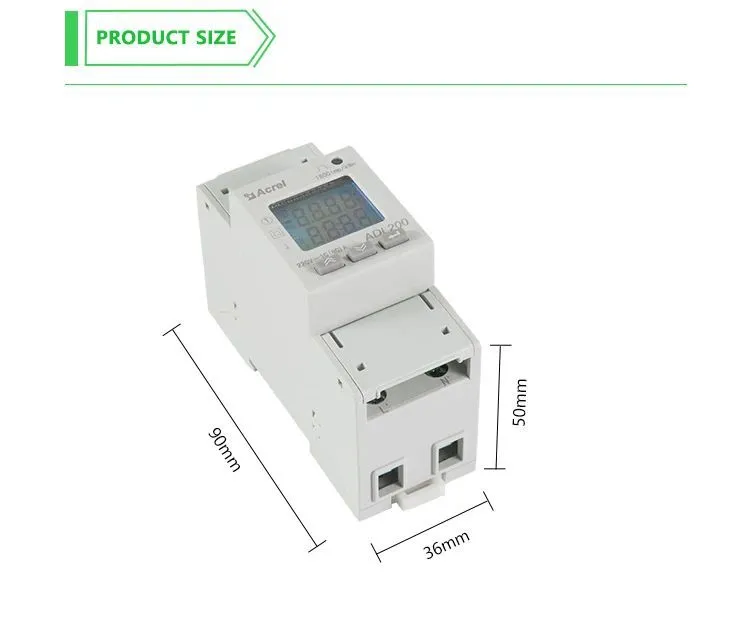

Dimensions
36mm*96 mm*70mm
Display Type
Digital Only
Accuracy Class
1 class
Measuring Energy Range
000000.00~999999.99kWh
General

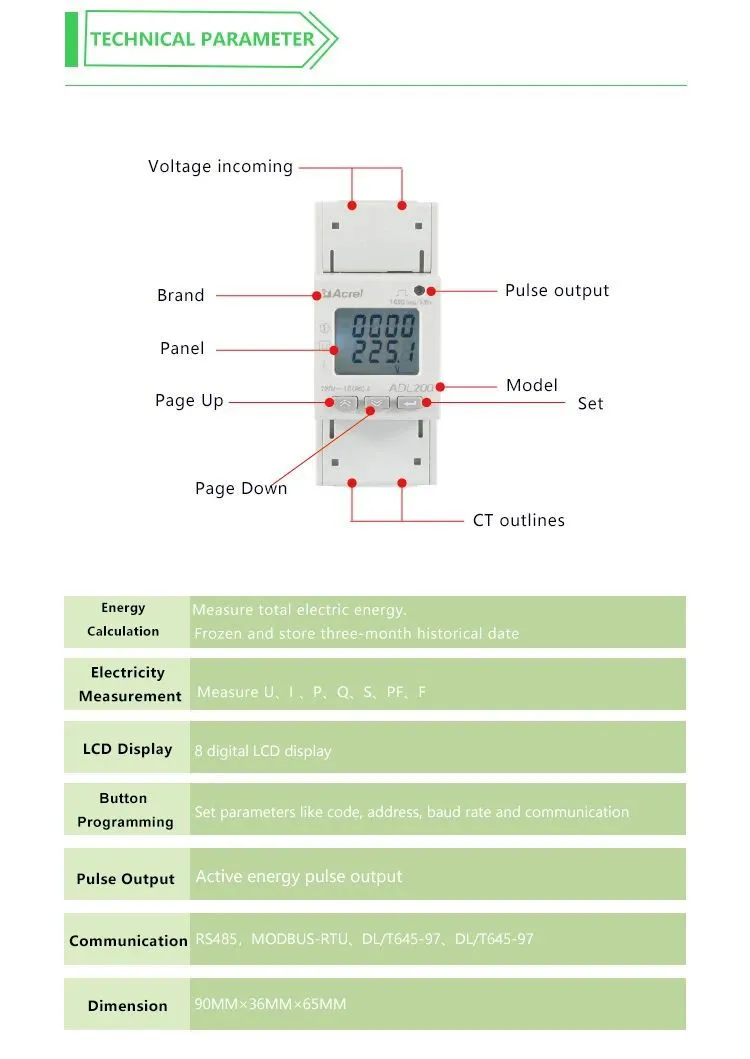

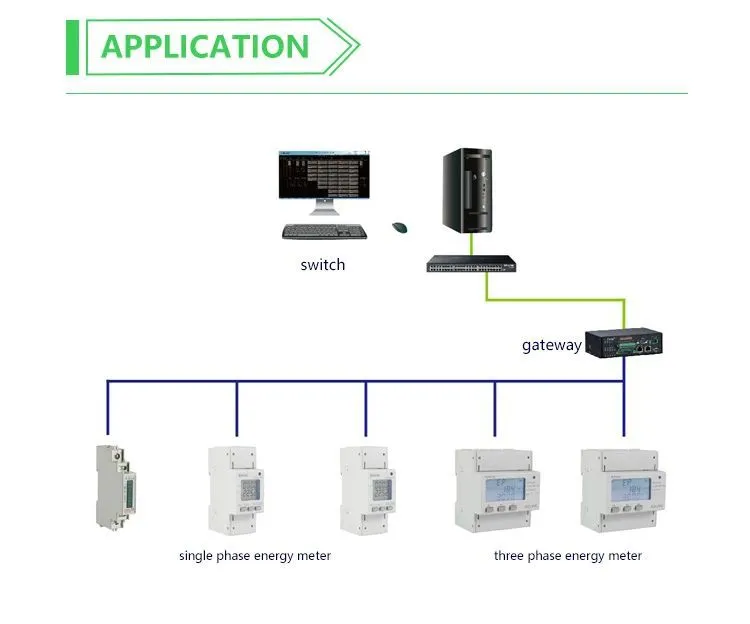

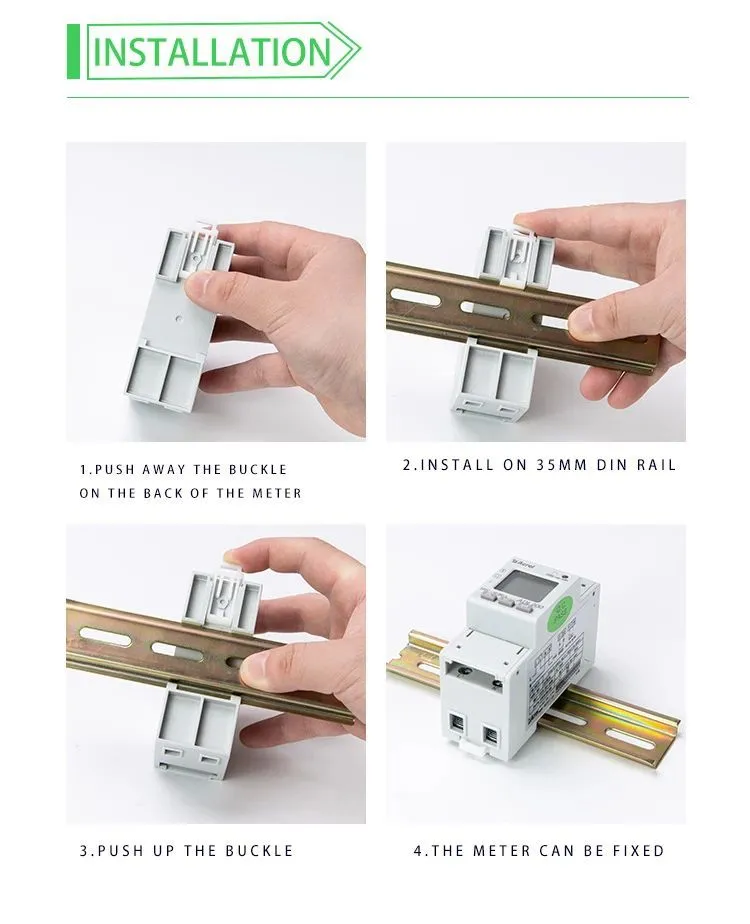

ADL200 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.
Contact us
Overseas sales engineer: Christine Chu
email:Christine.chu@email.acrel.cn
Mob:+86 18706168051(whatsapp/skype/wechat)
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2006
Annual Export Value
US$1.5 Million - US$2.5 Million
Product Certifications
ISO9001
