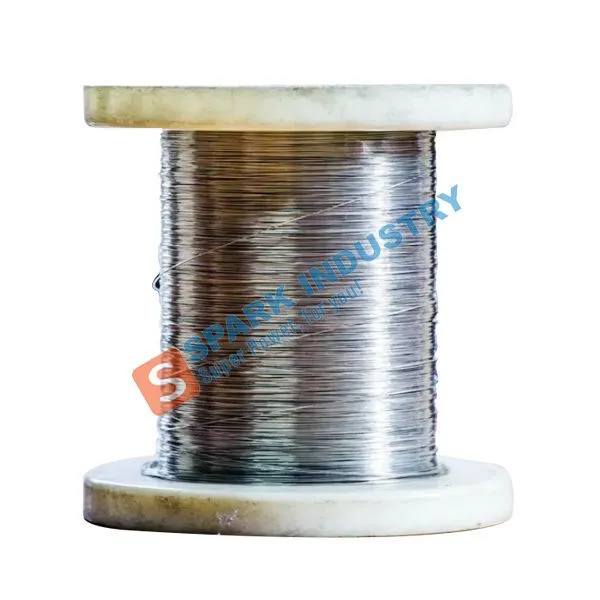

Help CenterPure Nickel Nichrome Alloy Cr20Ni80 Resistant Heating Wire
Related Products
-
Anti Abrasion Inconel 718 Rod 3.0mm Nickel Chromium AlloysUS$ 10 - 50MOQ: 10 Pieces -
Cold Rolled Inconel 625 Coil AISI ASTM Nickel Chromium AlloysUS$ 10 - 50MOQ: 10 Pieces
-
Dental Sintering Furnace With High Quality / Dental Lab FurnaceUS$ 4285 - 4500MOQ: 10 Pieces
-
Integrated Furnace Design Muffle FurnaceUS$ 4285 - 4500MOQ: 10 Pieces
-
Atmosphere Furnace With Explosion Proof Safety ProvisionsUS$ 4285 - 4500MOQ: 10 Pieces
Inconel 625 is a Nickel-Chromium-Molybdenum alloy with excellent corrosion resistance in a wide range of corrosive media, being especialloy resistant to pitting and crevice corrosion. It is a favourable choice for sea water applications. Applications include the marine and aerospace industries, chemical processing, nuclear reactors and pollution control equipment.
Main parameters:
Implement the standard GB/T1234-2012
The chemical composition is:
C ≤0.08%;
Mn ≤0.6%;
P ≤0.02%;
S ≤0.015%;
Si:0.75-1.60%;
Cr:20.0-23.0%;
Ni: Margin.
Fe ≤ 1.0%
Al≤ 0.5%
The maximum operating temperature of the element is 1200°C
Fast life: not less than 80h
melting point 1400℃
Density 8.4 g/cm³
Resistivity: Soft wire
Nominal diameter
Nominal diameter0.50~3.00mm 1.13±0.05μΩ·m (20℃)
Nominal Diameter>3.00mm 1.14±0.05μΩ·m (20°C)
Flexible strips
Alloy strip thickness≤0.80mm 1.09±0.05μΩ·m (20℃)
The thickness of the alloy strip >0.80~3.00mm 1.13±0.05μΩ·m (20℃)
Alloy strip thickness>3.00mm 1.14±0.05μΩ·m (20°C)
Specific heat capacity 0.46J/(g. K)
Elongation ≥20
Tensile strength: not less than 650 Rm/MPa
Thermal conductivity: 15 W/(m.K) (20°C)
Linear expansion coefficient 18
Microstructure austenite
Magnetic: None
This product is characterized by high temperature resistance, fast heating, long service life, stable resistance, small power deviation, uniform pitch after stretching, bright and clean surface, widely used in small electric furnaces, muffle furnaces, heating and air conditioning equipment, all kinds of ovens, electric heating pipes and household appliances. According to the needs of users, we can design and produce a variety of non-standard industrial and civil stoves.
Rated power |
Rated voltage |
Wire diameter |
Furnace wire outer diameter |
Furnace wire length (reference value) |
Hearth wire weight |
300 |
220 |
0.25 |
3.7 |
122 |
1.9 |
500 |
220 |
0.35 |
3.9 |
196 |
4.3 |
600 |
220 |
0.40 |
4.2 |
228 |
6.1 |
800 |
220 |
0.50 |
4.7 |
302 |
11.1 |
1000 |
220 |
0.60 |
4.9 |
407 |
18.5 |
1200 |
220 |
0.70 |
5.6 |
474 |
28.5 |
1500 |
220 |
0.80 |
5.8 |
554 |
39.0 |
2000 |
220 |
0.95 |
6.1 |
676 |
57.9 |
2500 |
220 |
1.10 |
6.9 |
745 |
83.3 |
300 |
220 |
1.20 |
7.1 |
792 |
98.3 |
