Vortex flow meter is widely used in industry of petroleum, chemical, metallurgy, machinery, food, papermaking, and urban pipeline heating-apply, water-supply, gas-supply etc. to service the single-phase fluid of low viscosity liquid, gas, steam, etc. for process flow measuring and energy saving management.
2. Technical data
1 Medium temperature: -25℃～+350℃

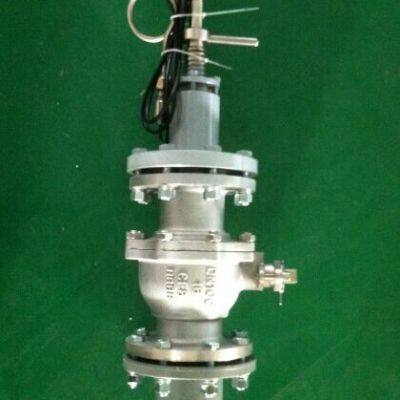

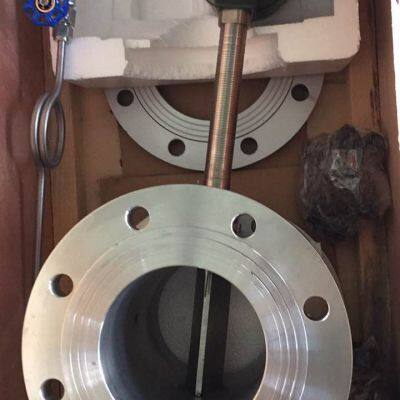

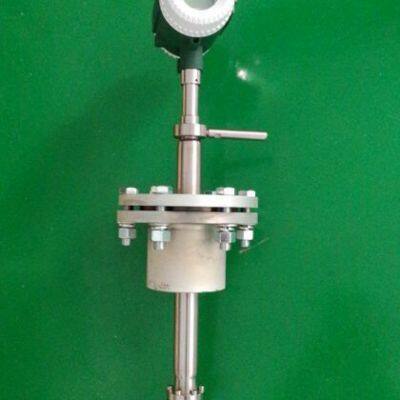

2 Mounting style: Wafer or flange type for DN15～DN300, Insertion type for DN300～DN1000
3 Flow velocity: Steam: ＜4～70m/s, Liquid: 0.7～7m/s, Gas: 5～70m/s
4 Pressure rating: PN16, PN25, PN40, higher pressure available on request
5 Pressure loss coefficient: Cd ≤2.6
6 Accuracy: 0.5%, 1.0%, 1.5% for Wafer type and Flange type, 1.5%, 2.5% for Insertion type
7 Power supply: DC12V or DC24V for flow sensor, DC24V for transmitter
DC24V, DC12V or 3.6V lithium battery for local display type
8 Signal output: Frequency 1～2600Hz for sensor , Low level ≤1V, High level ≥5V
4-20mA (2-wire) for transmitter
9 Seismic performance: Piezo-electric crystal probe ≤0.2g, Differential capacitance probe ≤2.0g
10 Ambient temperature: -30℃～+65℃
-10℃～+50℃ for transmitter local indicating
1 Ambient humidity: 5～85%RH
12 Output signal transmitting distance: ≤500m
13 Straight pipe requirement: Upstream ≥10D, Downstream ≥5D
14 Ex-protection: Intrinsically safe explosion-proof: ExiaⅡCT2 - T5
15 Weather proof: IP65 for ordinary type, IP68 for submerged type
16 Transmitter casing material: aluminum alloy
Body material: SS304, other material on customer request
