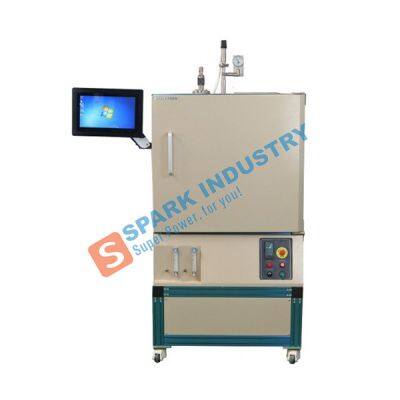

ATMOSPHERE FURNACE
Atmosphere Furnace is used in many industrial and laboratory research applications, where heat treatment is done under inert atmosphere. This inert atmosphere furnace is supplied with vacuum pump, gas flow meter and needle valves for vacuum and gas purge. Usually, Argon (Ar) and Nitrogen (N2) gases are used to create inert atmosphere. For specific applications; where, hydrogen gas is used, we also make such atmosphere furnace with explosion proof safety provisions.
TECHNICAL SPECIFICATIONS
Max. temperature |
1200°C |
1400°C |
1700°C |
Working temperature |
1100°C |
1300°C |
1600°C |
Temperature accuracy |
±1°C |
±1°C |
±1°C |
Thermocouple |
K Type |
S type |
B type |
Heating rate |
0 – 15°C / min |
0 – 15°C / min |
0 – 15°C / min |
Temperature controller |
|
||
Heating element |
Fe-Cr-Al-Mo wire |
U shape Sic heating elements |
U shape Mosi2 heating elements |
Furnace chamber |
1430°C ceramic fiber board |
1700°C ceramic fiber board |
1800°C ceramic fiber board |
Door |
Swing type door w/ screw locks |
||
Gas |
Nitrogen, Argon or any inert gas |
||
Vacuum display |
Dial type vacuum gauge |
||
Vacuum pump |
Rotary vacuum pump |
||
Gas fittings |
Stainless steel needle valves for Vacuum & Gas purge |
||
Safety features |
|
||
STANDARD SIZES / DIMENSIONS
Inner Chamber (W x H x D) |
Inner Chamber (W x H x D) |
Volume |
100 x 100 x 100 mm |
4 x 4 x 4 Inch |
1 Liter |
150 x 150 x 200 mm |
6 x 6 x 8 Inch |
5 Liters |
200 x 200 x 300 mm |
8 x 8 x 12 Inch |
12 Liters |
300 x 300 x 400 mm |
12 x 12 x 16 Inch |
36 Liters |
