POE-Powered R40 4G Edge Computing Router for Industrial Automation and Remote Control

FOB Price

US$ 129.936 - 151.548 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	R40

Product Description

Brief Introduction

R40 is an industrial edge router, compatible with 4G/3.5G/3G/2.5G network, flagship

configuration, VPN link, industrial protection, wide temperature, wide voltage design, easy to set up high speed, stable. The wireless transmission network uses the public LTE network to provide users with wireless long-distance data transmission, can be used in multiple industrial applications.

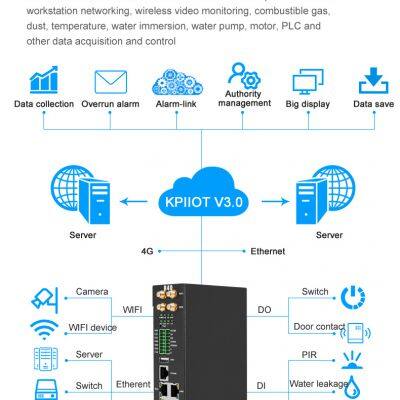

It is an industrial-grade multifunctional Internet of Things terminal device that supports POE power supply, comes with IO input and output, with 2 serial ports, supports transparent transmission, Modbus Master protocol for expanding IO and connecting PLC and other devices. It adopts dual SIM card redundancy design to ensure stable and reliable data transmission, supports MQTT protocol and Modbus protocol, SNMP protocol and is compatible with most PLC protocols, greatly simplifying on-site wiring construction costs and reducing operation and maintenance costs.

High-performance industrial-grade edge router adopts 32-bit processor, developed based on Linux system, supports GSM/2G/3G/4G/GPRS/EDGE/WCDMA/HSPA+/LTE network, provides high-speed wireless network bandwidth for the device through wireless connection, and has automatic detection of network disconnection, automatic restart of dial-up failure, and scheduled restart to ensure network stable connection.

Main Features

Ø DIN(2 channel) :Support NO/NC/counting input, frequency<100, can set counting threshold, support alarm trigger.

Ø DO(2 channel): Can be set according to the trigger condition.

Ø AIN(4 channel): Support 0-5V, 0-20mA, 4-20mA, can set threshold value, support alarm trigger.

Ø Support SMS to query DI/DO/AI status and value, and set DO status;

Ø Support 4G wireless Internet access function, can set APN and other parameters;

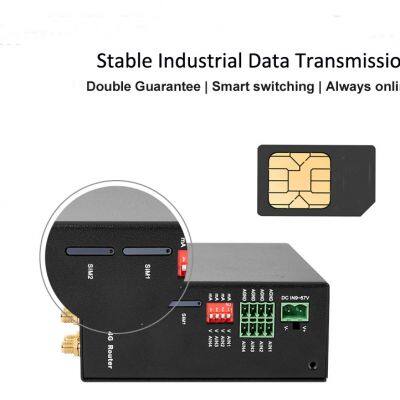

Ø Two SIM card slots, support dual card switching;

Ø Support GPS, positioning data can be released through MQTT;

Ø VPN: Support L2TP, IPSEC, OPENVPN and other VPN protocols.

Ø Interface: Support RS485 and RS232 serial port transparent transmission and MODBUS RTU to TCP, Support MODBUS master, can regularly read MODBUS slave node data through RS485, RS232 and Ethernet.

Ø Support address mapping, mapping RS485, RS232 and Ethernet access device addresses to router local addresses.

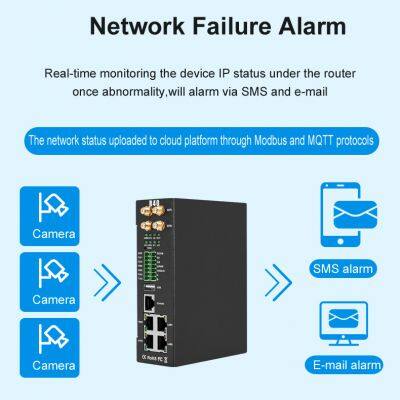

Ø Support monitoring the online status of network devices connected to the LAN port, which can be reported to the platform through MODBUS or MQTT.

Ø Link switching: Support WAN port and 4G network connection switching, preferentially use WAN port wired network.

Ø Network management: Supports SNMPV1 / V2C.

Ø Platform connection: Support MODBUS and MQTT protocols, MQTT supports SSL encryption.

Ø Alarm: Supports SMS and e-mail alarm.

Ø Timer: Support one-time timer and period timer.

Ø Logic operations: Support Boolean and numeric logic operation, also support conditions and arithmetic logic operations;

Ø Upgrade: Support remote upgrade through web page

Technical Parameters

Item	Parameters	Description
Power Supply	Input voltage	9~57VDC
	Input current	Normal: 240mA@12V, max: 800mA@12V
	Connection	5.08mm terminals
	Protection	Anti-reverse connection Protection
WAN	Qty	1
	Interface Spec	RJ45,10/100Mbps, Automatically adapted to MDI/MDIX
	Protection	ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs)
LAN(POE)	Qty	3
	Interface Spec	RJ45,10/100Mbps, Automatically adapted to MDI/MDIX
	POE(optional)	Supports 3 POE power output compatible IEEE802.3at/af Single POE maximum output power 30W With power management function Voltage range 48～57V
	Protection	ESD ±30kV(contact), ±30kV(air) EFT 40A(5/50ns) Lightning strike 24A(8/20µs)
Serial Port	Qty	2
	Type	1 RS485, 1 RS232
	Baud rate	1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400
	Data Bit	5, 6, 7, 8
	Parity Bit	None, Even, Odd
	Stop Bit	1, 2
	Working mode	Data transparent transmit, Modbus RTU to TCP, Modbus master, Modbus slave
	Protection	ESD(contact): 8KV Surge: 4KV(8/20us) ESD ±8kV(contact), ±15kV(air) EFT 4KV, 40A(5/50ns)
Console	Qty	1
	Type	CONSOLE
	Interface Spec	RJ45
	Protection	ESD：±8kV(contact), ±15kV(air)
USB (Reserved)	Qty	1
	Type	USB2.0(HOST)
	Protection	ESD ±8kV(contact), ±15kV(air)
WIFI	Antenna qty	2
	Antenna type	SMA
	Protocol	802.11a/b/g/n (mixed)
	Mode	AP mode, client mode
	Frequency	2.4G
	Channel	Channel 1 - 13
	Security	Open, WPA, WPA2
	Encryption	AES, TKIP, TKIPAES
	Connection number	16(Max)
	Speed	300Mbps(Max)
	Transmit Distance	Outdoor non-blocking/opening, covering up to 20 meters
	SSID Broadcast Switch	Support
Cellular Network	Antenna Port Qty	1
	Antenna Port Type	SMA
	4G(L-E)	GSM/EDGE：900,1800MHz WCDMA：B1,B5,B8 FDD：B1,B3,B5,B7,B8,B20 TDD：B38,B40,B41
	4G(L- AU)	GSM/EDGE：850,900,1800MHz WCDMA：B1,B2,B5,B8 FDD：B1,B2,B3,B4,B5,B7,B8,B28 TDD：B40
	4G(L-A)	WCDMA：B2,B4,B5 FDD：B2,B4,B12
	4G(L-V)	FDD：B4,B13
	4G(L-J)	WCDMA：B1,B3,B8,B18,B19,B26 FDD：B2,B4,B12 TDD: B41
	4G(L-CE)	GSM/EDGE：900,1800MHz WCDMA：B1,B8 TD-SCDMA：B34,B39 FDD：B1,B3,B8 TDD：B38,B39,B40,B41
SIM	Qty	2
	Interface Spec	Drawer interface, supports 1.8V/3V SIM/UIM (NANO)
	Protection	In-built 15KV ESD Protection
GPS (optional)	Antenna qty	1
	Antenna type	SMA
	Tracking Sensitivity	> -148 dBm
	Horizontal Accuracy	2.5m
	Protocol	NMEA-0183 V2.3
Digital input	Qty	2
	Type	Switch contact signal (dry node) or level signal (wet node)
	Range	1: High level, 5~30VDC, close signal 0: low level 0~1VDC open signal
	Pulse frequency	Max 100Hz
	Protection	Isolation voltage 3750Vrms
Digital output	Qty	2
	Type	SINK output
	Load voltage	Max 50VDC
	Load current	500mA(single), 625mW
	Protection	EFT: 40A(5/50ns)
Analog input	Qty	4
	Type	0~5V，4~20mA，0~20mA
	ADC Resolution	16bit
	Protection	EFT: 40A(5/50ns)
Indicator light	ALARM	Alarm indicator light
	SYS	System running status indicator
	4G	4G status indicator
	WiFi	WiFi status indicator
	DO1, DO2	Digital output indicator light
	DI1, DI2	Digital input indicator light
System	CPU	MIPS CPU, Clock Speed 580Mhz
	Storage	16MB (Scalable to 32MB)
	RAM	128MB (Scalable to 256MB)
Software	Network Protocol	PPP, PPPoE, TCP, UDP,DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS,SNMP etc.
	VPN	Ipsec, OpenVPN, L2TP
	Firewall	DMZ, DoS defense, IP packet, Domain name and MAC address filtering, port mapping, access control
	Remote Management	Support web remote configuration
	System Log	Support
	Firmware Upgrade	Support serial port local TFTP/web firmware upgrade
Certificate	EMI	EN 55022: 2006/A1: 2007
	EMS	IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8
	MTBF	100,000 hours
	Others	CE, FCC, ROHS, 3C
Working Environment	Working temperature	-40～85℃
	Storage temperature	-40～105℃
	Humidity	5～95%RH
Others	Enclosure	Metal
	Size	H145mm * L110mm * W45mm
	IP level	IP30
	Net weight	790g
	Installation	Wall-amount/Rail-amount

1.7 Model Selection

Model	Serial Port	WAN	LAN	WIFI	Digital input	Digital output	Analog input	Extend function
R40	1RS485,1RS232	1	3	√	2	2	x	Modbus slave/MQTT
R40A	1RS485,1RS232	1	3	√	2	2	x	Modbus master/slave/MQTT
R40B	1RS485,1RS232	1	3	√	2	2	4	Modbus master/slave/MQTT
