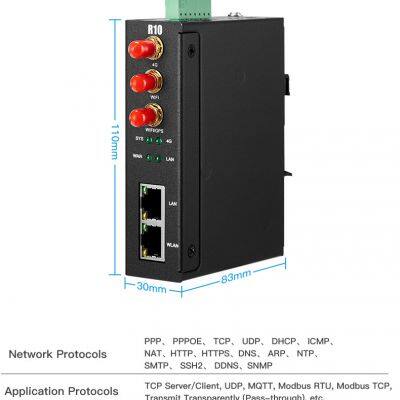

Industrial-Grade Modbus MQTT 4G Cellular Router R10 With WiFi for Smart Energy

Brief Introduction

  This router is an industrial IoT high-speed router, compatible with 4G/3.5G/3G/2.5G network, flagship

configuration, VPN link, industrial protection, wide temperature, wide voltage design, easy to set up high speed, stable The wireless transmission network uses the public LTE network to provide users with wireless long-distance data transmission.

The 4G router adopts high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module, with embedded real-time operating system as software support platform, and provides one RS232, Ethernet LAN, Ethernet WAN and WIFI interface, which can be connected at the same time. Serial devices, Ethernet devices, and WIFI devices implement transparent data transmission and routing.

At present, industrial grade products have patented technology that maintains stable system, ensuring that the equipment is always online; the whole machine adopts metal casing, anti-interference and radiation protection, and industrial grade design on hardware; system with watchdog protection, and system monitoring protection After strict design, testing and practical application for 10 years, the product performance is stable and reliable.

1.2  Typically Applications

BTS Monitoring, Security Alarm System applications, Supervision and monitoring alarm systems, Automatic monitoring system, Vending Machines security protection, Pumping Stations, Tanks, Oil or Water levels, Buildings and Real Estate, Weather Stations, River Monitoring and Flood Control, Oil and gas pipelines, Corrosion protection, Temperatures, water leakage applications, Wellheads, boat, vehicle, Energy saving, street lights control system, Valve controls, Transformer stations, Unmanned machine rooms, Control room application, Automation System, M2M, etc

Main Features

Ø Support hundreds of 3G/4G wireless modules, plug and play;

Ø Intelligent anti-drop line, support online detection, online maintenance, automatic redial of dropped calls, ensuring that the device is always online;

Ø Cloud remote background management, ad push, remote upgrade and remote configuration;

Ø Local network PHP browsing and remote synchronization of local storage content;

Ø Support serial port TCP/UDP transparent data transmission or AT command transmission;

Ø SMS control route online and offline, short-term notification of routing status;

Ø Support VPN security tunneling, including PPTP, L2TP;

Ø Complete and robust router function, support multiple Internet access methods: automatic allocation, specified IP, PPPoE;

Ø Support IPTABLES firewall, various network protocols;

Ø Support serial port local TFTP, web software upgrade;

Ø Support for dynamic DDNS: support for peanut shell, 88IP and dyndns domain name service providers;

1.6  Specifications
